CD Receiver
Installation & Owner's Manual
MP3/WMA
Playback
Front USB Port
iPod®/iPhone®/Flash Drive
SDHC Supported
XDMA7100
2 Aux Inputs
CD
Front & Rear
CD-R/RW Compatible

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXXERA XDMA7100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dual AXXERA XDMA7100

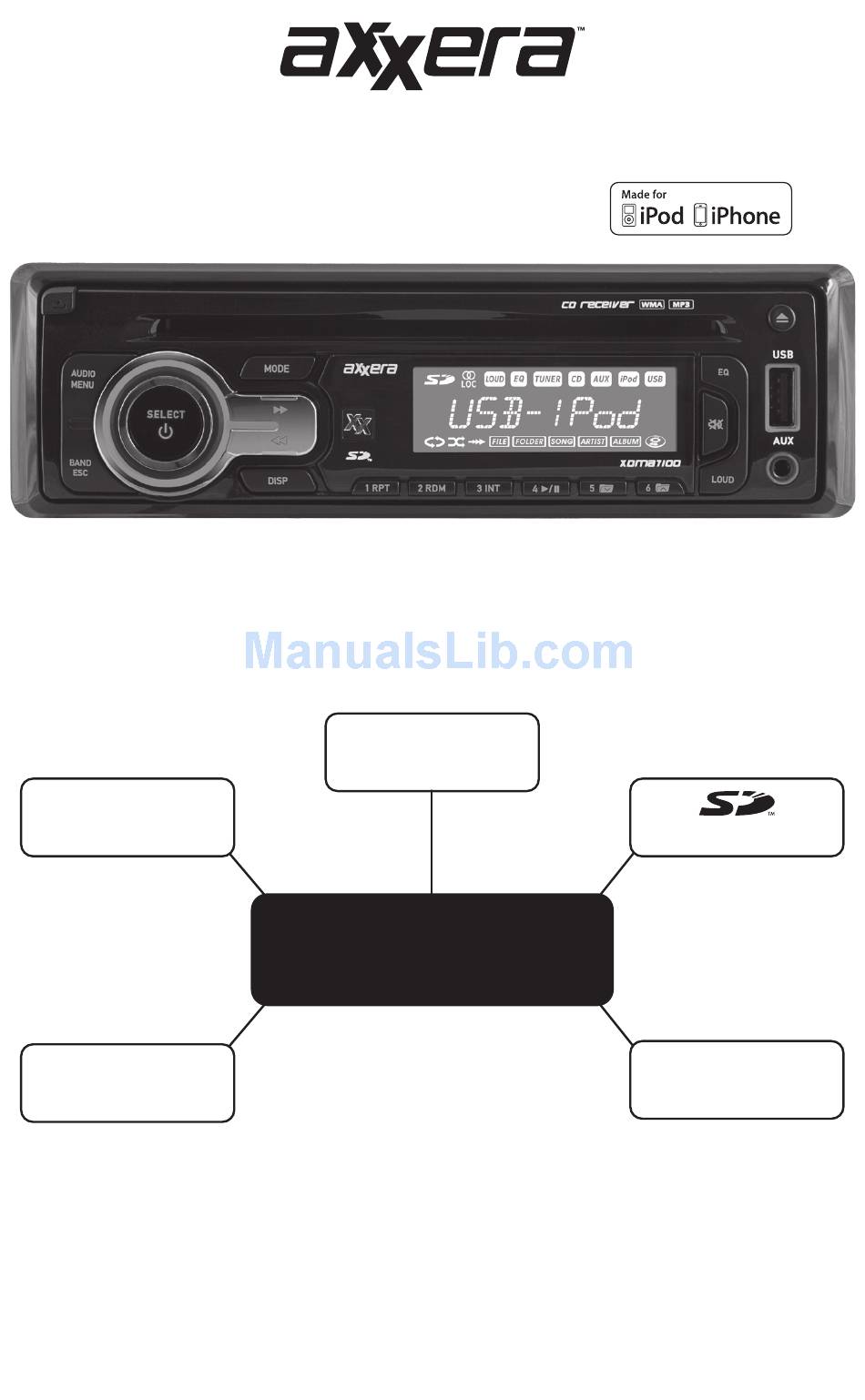

  • Page 1 CD Receiver Installation & Owner's Manual MP3/WMA Playback Front USB Port iPod®/iPhone®/Flash Drive SDHC Supported XDMA7100 2 Aux Inputs Front & Rear CD-R/RW Compatible...
  • Page 2: Getting Started

    XDMA7100 Preparation Please read entire manual before installation. Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Remove trim ring from unit, • Remove 2 transit screws located on top of the unit. • Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve. • Install mounting sleeve into opening, bending tabs to secure. • Connect wiring harness and antenna. Consult a qualified technician if you are unsure. • Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). • Test for correct operation and slide into mounting sleeve to secure. • Snap trim ring into place. TYPICAL FRONT-LOAD DIN MOUNTING METHOD...
  • Page 3: Replacing Fuse

    XDMA7100 Wiring Diagram RCA Preamp Output Connections REAR/SUB (selectable) FRONT AUX INPUT (rear) FRONT R/SUB L-CH R-CH REMOTE IN Antenna Connector Steering Wheel Interface Input PAC SWI-PS connection (sold separately) BLUE Remote Turn-On Connect to amplifier or power antenna. Insulate wire if not used. BLACK Ground Connect to the vehicle...
  • Page 4: Control Locations - Receiver

    XDMA7100 Control Locations - Receiver Control Function Description Release Opens and removes the front panel. Audio/Menu Accesses the audio options. Hold to access the setup menu. Select/Power Activates music searches. Confirms menu options. Hold to turn the power off. Track/Tune Up Changes to the next song or radio station. Hold to fast forward or seek up. Mode Changes to another mode of operation. Hold down to power off/on. Mute Silences the audio output. Cycles through the preset equalizer curves. Eject Ejects the CD. Hold to force eject a stuck CD. USB Port Connect a USB flash drive, iPod or iPhone device. Auxiliary Input Connect a 3.5mm cable from the headphone output of an MP3 player. Loud Toggles the Loud sound mode on and off. Preset 6/Folder Up Recall/Set preset 6. Changes to the next folder. Preset 5/Folder Down Recall/Set preset 5. Changes to the previous folder. Preset 4/Play/Pause Recall/Set preset 4. Cycle between pause/play. Preset 3/Intro Recall/Set preset 3. Intro menu (plays the first 10 seconds of each song). Preset 2/Random Recall/Set preset 2. Random menu (shuffles songs in a random playback order). Preset 1/Repeat Recall/Set preset 1. Repeat menu (repeat the current song, folder or album).
  • Page 5: Control Locations - Remote

    XDMA7100 Control Locations - Remote Preset 6 / Folder Up Mode Loud Select / Power ( ) Equalizer Volume Up Mute Audio / Menu Preset 4 / Play / Pause Tune / Track Up Preset 5 / Folder Down Volume Down Preset 1 / Repeat Display Band / Esc Preset 2 / Random Tune / Track Down Preset 3 / Intro...
  • Page 6: General Operation

    XDMA7100 General Operation Power On/Off Press or any other button (except EJECT) to turn the unit on. Press and hold for 3 seconds to turn the unit off. Mode Press MODE to select between AM/FM, CD player, auxiliary front/rear, operation of iPod, USB and SD card. Modes of operation are shown in the display. NOTE: CD, USB and operation of iPod modes will not appear unless a CD is inserted or USB/iPod devices are connected. Auxiliary Inputs The XDMA7100 offers two auxiliary input ports, a 3.5 mm port on the front panel and an RCA connection on the back of the unit. Use either connection to connect audio device, MP3 player, etc. Press MODE to select AUX FRONT or AUX REAR modes. Steering Wheel The steering wheel interface input located on the back of Interface Input the head unit allows connection to the Pacific Accessory Corporation (PAC) SWI-PS interface module (sold separately). Visit www.pac-audio.com for details. To configure steering wheel controls, follow the instructions provided with the PAC SWI-PS interface module. After installing the interface module, insert the module's 3.5mm jack into the port on the back of the head unit. Volume Adjust volume using volume knob (00-46).
  • Page 7: Setup Menu

    XDMA7100 General Operation - Setup Menu Menu Function Options Action Auto Station Press SELECT to seek and save 6 strong stations in the AUTO STORE Store current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner Tuning LOCAL ON mode only). Programs the unit to USA tuner spacing. FREQ USA Tuner (200kHz for FM and 10kHz for AM). (Tuner mode only) Frequency Programs the unit to European tuner spacing. Spacing FREQ EUR (50kHz for FM and 9kHz for AM). (Tuner mode only) Programs the head unit to advanced control of the iPod/...
  • Page 8 XDMA7100 General Operation Audio Press AUDIO momentarily to select between Bass, Treble, Balance, Fader, Subwoofer and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Bass Press AUDIO until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Treble Press AUDIO until TREBLE appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Balance Press AUDIO until BAL appears then rotate volume knob left/right to adjust (BAL LEFT 12 - BAL RIGHT 12). • BAL EVEN represents equal balance Fader Press AUDIO until FADER appears then rotate volume knob left/right to adjust (FADER FRONT 12 - FADER REAR 12). • FAD EVEN represents equal fader *Subwoofer Press AUDIO until SUB appears then rotate volume knob...
  • Page 9 XDMA7100 AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold to advance quickly. Band Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. Storing and Recalling Up to 18 FM stations and 12 AM stations can be stored. To Station Presets store a station, select the desired band and station. Press and hold the desired preset button (1-6) for more than 2 seconds. When stored, the preset number will appear in the display. The station can be recalled anytime by pressing the corresponding preset button.
  • Page 10: Cd Player Operation

    XDMA7100 CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. The unit does not have to be turned on to eject CD. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track. Fast Forward and Press and hold TRACK or TRACK to fast Reverse forward or reverse a track. / II to temporarily stop CD playback. Pause Press / II again to resume playback. Press Intro Press INT to enter the Intro menu, then turn the volume...
  • Page 11 XDMA7100 CD Player Operation - MP3/WMA Files Playing an MP3/WMA When an MP3/WMA encoded disc is first inserted, Disc “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time. “NO ID3 TAG” will be displayed if the MP3 file contains no ID3 tag information. “UNKNOWN” will be displayed if the WMA file contains no WMA tag information. “ROOT” will be displayed if the directory name of a root folder is not labeled. Title Icon This icon will illuminate when the song title is displayed. Artist Icon This icon will illuminate when the artist name is displayed. Folder Icon This icon will illuminate when the folder name is displayed. File Icon This icon will illuminate when the file name is displayed. Character Support Maximum character display information • Track name – 32 character maximum...
  • Page 12 XDMA7100 CD Player Operation - MP3/WMA Files Folder/File Search MP3/WMA CD mode features a file and folder search Mode mode. This search allows navigating through folders to find a specific MP3 or WMA file for playback. Step 1 Press SELECT. "MP3 SEARCH" will appear, then a list of the files in the currently selected directory will be accessible. Step 2 Turn the volume knob. The list of subfolders and files in the current folder will cycle. Turning the volume knob left will cycle to the beginning of the folder/file list. Any subfolders will be listed at the beginning of the list, followed by any files. will illuminate when a folder is highlighted. will illuminate when a file is highlighted. Step 3 Navigate to the desired folder and file. • To go up one folder level, press ESC once. • To view the contents of a highlighted folder, press SELECT. Note: the "FOLDERUP" option may also be selected to navigate up one folder level.
  • Page 13 XDMA7100 CD Player Operation - MP3/WMA Files Folder Access Press to select the previous folder. Press to select the next folder. *Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • OFF - Plays all tracks on CD. • TRACK - Continuously repeats selected track. • FOLDER - Continuously repeats all files in selected folder. Random Press RDM to enter the Random menu, then turn the volume knob to select one of the following options: • OFF - Cancels the RDM function. • ALL- Plays all tracks in random order. • FOLDER - Plays all tracks in folder in random order. Note: Random mode is retained in memory when selecting between other modes and when the unit is turned on/off. Intro Press INT to enter the Intro menu, then turn the volume knob to select one of the following options: • OFF - Cancels the INT function. • ALL - Plays first 10 seconds of each track.
  • Page 14 XDMA7100 CD Player Operation - MP3/WMA Files File/Folder Compatibility and Support • CD-ROM (ISO), CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • WAV format • AAC format • ISO9660 level 1 & level 2 Recording Format • Yellow book MODE 1 & MODE 2 FORM 1 Compatibility • Multi session Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 32kHz - 48kHz Transfer Bit Rate...
  • Page 15 XDMA7100 SD Card / USB Operation Connect a USB Device To play MP3/WMA files from most USB mass storage (sold separately) devices, line up the USB connector and insert the USB device into the XDMA7100's USB port. Inserting an SD Card To play MP3/WMA files from an SD card, insert the card (sold separately) horizontally with the label facing up into the SD card slot located behind the front panel. Playing Music When a USB device is first connected, “READING” will appear in the display and playback will begin momentarily. To begin playing music from an SD card, press MODE to select SD mode and begin playback. Depending on the number of files and folders, it may take several seconds for the device to begin playing. If no valid MP3/WMA files are detected, “NO FILE” will be displayed and the last mode will be resumed. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK...
  • Page 16 XDMA7100 SD Card / USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween sont title, artist, file name, folder name, track number and clock/ elapsed time. "NO TITLE" will be displayed if no song title information is available. "NO ARTIST" will be displayed if no artist information is available. Song Title Icon This icon will illuminate when the song title is displayed. Artist Icon This icon will illuminate when the artist name is displayed. Folder Icon This icon will illuminate when the folder name is displayed. File Icon This icon will illuminate when the file name is displayed. Press to select the previous folder. Folder Access Press to select the next folder. Note: Folder access is only available on devices with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • OFF - Plays all tracks on the device.
  • Page 17 XDMA7100 SD Card / USB Operation File/Folder Compatibility and Support • CD-ROM (ISO), CD-R, CD-RW • CD-DA (digital audio) Compatible File Types • MP3 data (.mp3) • WMA data (.wma) • DRM protected files • WMA lossless • Apple lossless Incompatible File • WMA Pro Types • MP3 Pro • MP3 playlists • WAV format • AAC format • ISO9660 level 1 & level 2 Recording Format • Yellow book MODE 1 & MODE 2 FORM 1 Compatibility • Multi session Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 32kHz - 48kHz Transfer Bit Rate • MP3: 32kbps - 320kbps...
  • Page 18: Operation Of Ipod

    XDMA7100 Operation of iPod Connect an iPod Device The XDMA7100 features a direct USB control system for (Not Included) iPod. To play music from an iPod device, connect the USB cable (included with your iPod device) to the XDMA7100's USB port. Once connected, READING will appear in the display. Playback will begin automatically. If a song is playing on the iPod device before it is connected, it will continue to play. Displaying Information Press DISP to select between artist, song title, album, elapsed time, clock and track number. Music Search Mode Search Menu Functions (step 1) Press SELECT once to enter the search mode. (step 2) Turn the volume knob to select between playlist, artist, album, song, audiobook and podcast. Press SELECT to select the desired search type.
  • Page 19 XDMA7100 Operation of iPod Song Select Press to skip to the beginning of next song. Press to return to the beginning of current song. Pressing again skips to the beginning of previous song. Fast Forward and Press and hold to fast forward or reverse a Reverse song. / II to temporarily stop playback. Pause Press / II again to resume playback. Press Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • OFF - Repeats all tracks. • SONG - Repeats selected track. Random Press RDM to enter the Random menu, then turn the volume knob to select one of the following options: • OFF - Cancels the RDM function.
  • Page 20: Limited One Year Warranty

    XDMA7100 Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. A slight adjustment of any Dual Electronics Corp. warrants this custom controls may save you a service product to the original purchaser to call. be free from defects in material and workmanship for a period of one year from 2. If you require service during the the date of the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original to repair any defect in material or receipt from the retailer to an workmanship or to furnish an equal authorized service center.
  • Page 21: Troubleshooting

    XDMA7100 Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11-16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power One or more speaker wires touching Insulate all bare speaker wires from (but no sound) each other or touching chassis ground each other and chassis ground Yellow or red wire touching chassis Check for pinched wire ground Unit blows fuses Speaker wires touching chassis...
  • Page 22: Specifications

    XDMA7100 Specifications CD Player Frequency response: 10Hz - 20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit Tuning range: 87.5MHz - 107.9MHz FM Tuner Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz - 13kHz Tuning range: 530kHz - 1710kHz AM Tuner Usable sensitivity: 22uV Frequency response: 30Hz - 2.2kHz File system: FAT, FAT32 USB/SD Card...
  • Page 23: Fcc Compliance

    XDMA7100 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 24 Dual Electronics Corp. Toll Free: 1-866-382-5476 axxera.dualav.com ©2011 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. The SD logo is a trademark of the SD Card Association. Other trademarks and trade names are those of their respective owners. NSA0211-V01...
