  • Page 1 TYAN GT24 B7016 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any ® express or implied warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulatio- -ns. http://www.tyan.com...
  • Page 5 About this Manual This manual provides you with instructions on installing your TYAN GT24-B7016. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN GT24-B7016...
  • Page 6 SAFETY INFORMATION Before installing and using TYAN GT24-B7016, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1: Overview ................. 9 About the TYAN GT24-B7016 ..........9 Product Models............... 10 Features.................. 11 Standard Parts List ..............15 Standard Parts List ..............15 1.4.1 Box Contents ..............15 1.4.2 Accessories ..............16 Optional Parts ................. 17 About the Product ..............
  • Page 8 Replacing the M1232 HDD Board ........61 3.8.1 M1232 HDD Board Features ........... 63 3.8.2 M1232 HDD Board Connector Pin Definitions ....65 Appendix I: Cable Connection Tables .......... 69 Appendix II: FRU Parts Table ............71 Appendix III: Technical Support............ 73 http://www.tyan.com...

  • Page 9: Chapter 1: Overview

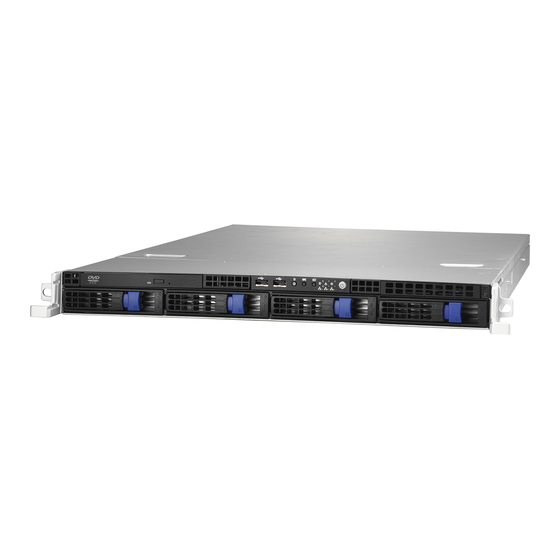

    Chapter 1: Overview About the TYAN GT24-B7016 ® Congratulations on your purchase of the TYAN GT24-B7016, a highly optimized rack-mountable barebone system. GT24-B7016 is designed to ® support up to two Intel “Nehalem-EP processors and up to 144GB DDR3-800/1066/1333 memory, providing a rich feature set and incredible ®...

  • Page 10: Product Models

    Product Models Model HDD Bays Power supply Hot-swap, B7016G24W4H 600W single 4HDDs Hot-swap, B7016G24V4H 600W single 4HDDs http://www.tyan.com...

  • Page 11: Features

    Features TYAN GT24-B7016 (B7016G24W4H/B7016G24V4H) Form Factor 1U Rackmount Chassis Name GT24 System Dimension (D x W x H) 25.4" x 17.2" x 1.72" (645 x 436 x 43.6mm) Motherboard S7016WGM3NR/S7016GM3NR Gross Weight 16 kg Buttons (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED...
  • Page 12 Memory voltage 1.5V PCI-E (1) PCI-E Gen.2 x8 slot / (1) PCI-E Gen.2 x16 slot (w/ x8 link) Expansion Slots Pre-install TYAN Riser M2083-RS, PCI-E x16 1U riser card (left) / M2081-2, PCI-E x8 Card 1U riser card (right) Port Q'ty...
  • Page 13 Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Complaint Barebone (1) GT24B7016 Barebone Package (1) Quick Ref. Guide / (1) MB User's manual + (1) BB User's Contains Manual manual Installation CD (1) TYAN installation CD http://www.tyan.com...
  • Page 14 Rail kit (1) CRAL-0031, sliding rail kit for KGT24 Mounting Ear (1) CEAR-0050, mounting ear kit for GT20/ GT24 Others (1) HDD screw pack (1) CCBL-0310, US type power cord / (1) CCBL-0300, EU Power Cord type power cord http://www.tyan.com...

  • Page 15: Standard Parts List

    The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 1U chassis,(4) hot swap HDDbays ® TYAN S7016 system board (pre-installed) 600W single Power Supply (5) System FAN M1008 LED control board (pre-installed) M1232 HDD Board...

  • Page 16: Accessories

    If any items are missing or appear damaged, contact your retailer or ® browse to TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. ® 1 x TYAN 2 x Heatsinks...

  • Page 17: Optional Parts

    Rail Kit Rail with Bracket x 2 Screw Pack Optional Parts Model Item Picture Quantity Description Number Chassis Front Bezel for GT series 1U CFBZ-0070 Front-Bezel chassis http://www.tyan.com...

  • Page 18: About The Product

    ID LED Warning LED BMC LED USB ports ID button Reset button Power button(with LED) NIC3 NIC2 NMI button NIC1 1.6.2 System Rear View LAN3 Serial port & VGA port (IPMI shared NIC) Power supply LAN1 KB/MS USB ports LAN2 http://www.tyan.com...

  • Page 19: Led Definitions

    Description Green 10Mb/100Mb/1000Mb linked RJ-45 Linkage/ Blinking Green 10Mb/100Mb/1000Mb activity Activity(left) No LAN linked Amber 1000Mb linked/activity RJ-45 Linkage/ Green 100Mb linked/activity Activity(Right) 10Mb mode or No LAN linked NOTE: “Left” and “Right” are viewed from the rear panel. http://www.tyan.com...
  • Page 20 10Mb/100Mb/1000Mb linked RJ-45 Linkage/ Blinking Green 10Mb/100Mb/1000Mb activity Activity(left) No LAN linked Amber 1000Mb linked/activity RJ-45 Linkage/ Green 100Mb linked/activity Activity(Right) 10Mb mode or No LAN linked ID LED State Color Description Blue System identified ID LED System not identified http://www.tyan.com...

  • Page 21: Motherboard (S7016) Layout

    1.6.4 Motherboard (S7016) Layout The diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. http://www.tyan.com...

  • Page 22: Jumpers & Connectors

    BMC Enable/Disable Jumper BMC Update Jumper Flash Manageability Engine (ME) Jumper Clear CMOS Jumper JP2/JP3 COM2 Switch Jumper BMC Flash Jumper PCI-E x8/x16 select Jumper Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 23: System Block Diagram

    1.6.6 System Block Diagram http://www.tyan.com...

  • Page 24: Internal View

    1.6.7 Internal View HDD Cage M1232 HDD Board System Fan Unit Power Supply PCI-E Riser Card Assembly http://www.tyan.com...

  • Page 25: Chapter 2: Setting Up

    A grounding strap or an anti-static pad Most of the electrical and mechanical connections can be disconnected with your hands. It is recommended that you do not use pliers to remove connectors as it may damage the soft metal or plastic parts of the connectors. http://www.tyan.com...

  • Page 26: Precautions

    Metallic parts or metal flakes can cause electrical shorts. Note: All connectors are keyed to only attach one way. All use the correct screw size as indicated in the procedures. http://www.tyan.com...

  • Page 27: Installing Motherboard Components

    -rd, including CPUs, memory modules and add on cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove GT24-B7016 chassis cover. Unscrew the rear top cover on the back side as shown in the small diagram. Slide the rear top cover out. http://www.tyan.com...

  • Page 28: Installing The Cpu And Heatsink

    2.1.2 Installing the CPU and Heatsink Follow the steps below on installing CPUs and CPU heatsinks. 1. Locate the CPU socket. 2. Press the lever and unlock the CPU socket. http://www.tyan.com...
  • Page 29 3. Lift the CPU protection cap up and lay the CPU into the socket(A), ensuring pin1 is correctly located(B); 4. Close the socket cover and press the CPU lever down to secure the CPU; http://www.tyan.com...
  • Page 30 5. Place the heatsink on top of the CPU and secure it with 8 screws. Note: The system supports two CPUs. For CPU sequence please refer to Chapter 1.6.4. http://www.tyan.com...

  • Page 31: Installing The Memory

    Press the memory slot locking levers in the direction of the arrows as shown in the following illustration. Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. http://www.tyan.com...
  • Page 32 “2.3 - Board Parts, Jumpers and Connectors” for memory installation. 2). Refer to the memory population option table for recommended memory installation instruction. Memory Population Option Table The following pictures show common types of DDR3 memory modules. http://www.tyan.com...
  • Page 33 DIMM D0, D1 & D2 Channel A DIMM A0, A1 & A2 Channel E DIMM E0, E1 & E2 Channel B DIMM B0, B1 & B2 Channel F DIMM F0, F1 & F2 Channel C DIMM C0, C1 & C2 http://www.tyan.com...
  • Page 34 The following table outlines the suggested rules for populating memory. For 3 slots per channel RDIMM DIMM2 DIMM1 DIMM0 Single Rank Dual Rank Quad Rank UDIMM DIMM2 DIMM1 DIMM0 Single Rank Dual Rank DIMM with heat spreader DIMM2 DIMM1 DIMM0 http://www.tyan.com...
  • Page 35 1). “X” indicates a populated DIMM slot. 2). If installing only one processor, you can choose either CPU0 or CPU1. 3). For two slots per channel configuration, it requires population to start with the DIMM slots furthest away from the processor. http://www.tyan.com...

  • Page 36: Installing Hard Drives

    The GT24-B7016 supports four 3.5” hard drives. Follow these instructions to install a hard drive. Press the locking lever latch and pull the locking lever open. Slide the HDD tray out. Remove the 6 screws. Place a hard drive into the drive tray. http://www.tyan.com...
  • Page 37 Use 6 HDD screws to secure the HDD. 6. Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...

  • Page 38: Installing The Pci-E Cards

    Take off the PCI bracket. Insert the PCI-E card in the direction of arrow as shown. Close the tab of PCI-E slot to secure PCI-E card. Repeat the same procedures to insert the second PCI-E card into the expansion slot. http://www.tyan.com...
  • Page 39 The installation of two PCI-E expansion cards are now complete. http://www.tyan.com...

  • Page 40: Rack Mounting

    Installing the Server in a Rack Follow these instructions to mount the TYAN GT24-B7016 into an industry standard 19" rack. NOTE: Before mounting the TYAN GT24-B7016 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 41: Installing The Inner Rails To The Chassis

    2.2.2 Installing the inner Rails to the Chassis Screw the mounting ear to each side of TYAN GT24-B7016 as shown using 2 screws from the supplied screws kit. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 1 M4-4L(A) screw for each side.

  • Page 42: Installing The Outer Rails To The Rack

    Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(A) screws. Secure the outer rail to the rack using 2 brackets and 4 M5-8L(B) screws for each side. Secure the mounting brackets from inside, not outside, of the rack. http://www.tyan.com...
  • Page 43 Mounting Bra cket http://www.tyan.com...

  • Page 44: Rack Mounting The Server

    Lift the chassis and then insert the inner slide rails into the middle rails. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B) Secure the mounting ears of chassis to the rack with 2 M5-15L(C) screws. http://www.tyan.com...
  • Page 45 Note: To avoid injury, it is strongly recommended that two people lift the TYAN GT24-B7016 into the place while a third person screws it to the rack. http://www.tyan.com...
  • Page 46 NOTE http://www.tyan.com...

  • Page 47: Chapter 3: Replacing Pre-Installed Components

    M2083-RS/M2081-2 PCI-E Riser card, System fan, ODD drive, Power supply unit etc. Disassembly Flowchart The following flowchart outlines the disassembly procedure. Rear Components Chassis rear cover DIMMs Power CPU/Heatsink Assembly PCI Card M2083-RS PCI-E Riser card M2081-2 PCI-E Riser card Mainboard Mainboard http://www.tyan.com...
  • Page 48 Front Components Chassis rear cover DVD ROM PCBs M1008 LED M1232 HDD Control Board Board http://www.tyan.com...

  • Page 49: Removing The Cover

    Follow the instructions below to disassemble the M2083-RS PCI-E riser card. 1. Locate the riser card on the motherboard, unscrew the bracket from the slot. 2. Unscrew the bracket and pull it up from the slot in the direction as shown. http://www.tyan.com...
  • Page 50 3. Unscrew the cards from the bracket. a. remove Card M2083 b. remove Card M2081-2 4. Install a new riser card onto the bracket following the procedures mentioned earlier in reverse order. http://www.tyan.com...

  • Page 51: Disconnecting All Motherboard Cables

    Before replacing the motherboard or certain components, remove cables connected to the motherboard. Follow these instructions to remove all motherboard cables. Disconnect all the power cable. 2. Disconnect SATA DVD cable, Mini SAS cable, USB cable and front panel cable. 3. Disconnect fan cables. http://www.tyan.com...

  • Page 52: Removing The Motherboard

    After removing all of the aforementioned cables, follow the instructions below to remove the motherboard from the chassis. Remove the heatsinks and processors if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis. http://www.tyan.com...

  • Page 53: Replacing The Slim Dvd-Rom

    Remove the power and data cables from the slim DVD-ROM adapter. Press the tab in the directions as shown to release the DVD-ROM drive. The DVD-ROM drive will be freed from the drive bay after pressing the tab. Disconnect the power and data cables from the DVD-ROM drive. http://www.tyan.com...
  • Page 54 Remove two screws that secure DVD-ROM drive to the bracket. Replace the DVD-ROM drive. Secure DVD-ROM to the bracket using two screws. Then replace the unit into the drive bay and connect the DVD-ROM power and data cables. http://www.tyan.com...

  • Page 55: Replacing The Led Control Board

    Remove the two screws securing the LED control board unit to the chassis. Push the LED control board unit out and unplug the cables from the connectors at the back of the unit. Remove three screws securing the LED control board to the bracket. http://www.tyan.com...
  • Page 56 4. Lift the LED control board free from the chassis. After replacing the LED control board, insert the unit into the chassis following the above procedures in reverse. http://www.tyan.com...

  • Page 57: M1008 Led Control Board Features

    M1008 LED Control Board Connector Pin Definition J1: USB Header Definition Definition USB1- USB2- USB1+ USB2+ J3: SSI Definition Definition PW_LED+ ID_LED+ PW_LED- ID_LED- HD/LAN3 LED+ SYS_FAULT1- HD/LAN3 LED- SYS_FAULT2- PWR_SW+ LAN1_LED+ PWR_SW- LAN1_LED- RESET+ ICH_SMBDAT RESET- ICH_SMBCLK ID_SW+ INTRU# TEMP_SENSER LAN2_LED+ EXT_INT LAN2_LED- http://www.tyan.com...

  • Page 58: Replacing The System Fan

    Unplug the cables connected to the mainboard and lift the fan unit up from the chassis. Follow Step A and B to unlock the fans. After replacing the new fans, reinstall the fans into the chassis following Step A and B in reverse order. http://www.tyan.com...
  • Page 59 1. Push the fan unit away from the case. 2. After replacing the new fan unit, push the new fan back into the case. http://www.tyan.com...
  • Page 60 Connect the fan cables. http://www.tyan.com...

  • Page 61: Replacing The M1232 Hdd Board

    Replacing the M1232 HDD Board Step 1: Disconnect all cables connected to M1232 HDD Board. Power cable: SATA Power cable and Mini SAS cable: Step 2: Remove the three screws securing the bracket to the chassis base. http://www.tyan.com...
  • Page 62 Step 3: Lift the bracket up from the chassis. Step 4: Unscrew M1232 board from the bracket. Step 5: Replace a new M1232 HDD Board and reinstall it into the chassis following the above steps in reverse. http://www.tyan.com...

  • Page 63: M1232 Hdd Board Features

    3.8.1 M1232 HDD Board Features Front View J39: Mini SAS Connector http://www.tyan.com...
  • Page 64 Rear View: LED1 LED2 LED4 LED3 LED6 LED5 LED7 LED8 http://www.tyan.com...

  • Page 65: M1232 Hdd Board Connector Pin Definitions

    M1232 HDD Board Connector Pin Definitions Definition +12V Definition Definition +12V +12V J15 SGPIO JTAG Definition Definition 3.3V J41 SGPIO for IOH Definition Definition SM_CLK SGPIO_0 SM_DATA SGPIO_1 SGPIO_2 SGPIO_3 HD_ERR_LED J5 Slim Hard Disk power Definition +12V J18 Slim CDROM power Definition +12V http://www.tyan.com...
  • Page 66 Pin 1-2 chose by CPU_PWM (Default) Pin 2-3 chose by CPU_PWM2 LED Definition: Color State Description HDD fail LED Amber SATA/SAS HDD fail (LED 2/4/6/8) No failure found SATA/SAS HDD ready Green Power/Access SATA/SAS HDD Blinking access activity (LED 1/3/5/7) Power disconnected http://www.tyan.com...

  • Page 67: Replacing The Power Supply

    Replacing the Power Supply 1. Disconnect the power cables from the motherboard and the HDD/FAN board. 2. Remove the screws that secure the power supply to the chassis. http://www.tyan.com...
  • Page 68 3. Take out the power unit and install a new one follow the above steps in reverse. http://www.tyan.com...

  • Page 69: Appendix I: Cable Connection Tables

    S7016 MB → Mini-SAS Cable M1008 LED Control Board to S7016 MB Cable M1008 Connect to S7016 MB → Control Cable → USB Cable Power Supply Cables PSU to S7016 MB Connect to S7016 MB → 2X12 PWR → → http://www.tyan.com...
  • Page 70 PSU to M1232 Connect to M1232 → → DVD-ROM to S7016 MB & M1232 Cable Connect to S7016 & M1232 → SATA Cable S7016 MB J26 → Slim DVD SATA PWR Cable M1232 J18 http://www.tyan.com...

  • Page 71: Appendix Ii: Fru Parts Table

    Appendix II: FRU Parts Table GT24-B7016 FRU Parts Item Model Number Part Number Picture Quantity Description TYAN S7016WGM3NR Motherboard S7016WGM3NR Motherboard Chassis Unit CCHA-0370 43278090001 Chassis Unit;GT24 B7016 Chassis Top Cover CCCV-0180 34078090001 GT24 Top Cover Front Bezel for GT24 Series 1U...
  • Page 72 Slim ODD SATA Power Cable, CCBL-0422 422772300003 110mm A/C Power Cord, L=1830mm,US CCBL-0310 332810000280 type A/C Power Cord, L=1830mm,EU CCBL-0300 332810000281 type Note: The table is subject to change without notice. Please visit our Web site at http://www.tyan.com for latest update. http://www.tyan.com...

  • Page 73: Appendix Iii: Technical Support

    Help Resources: 1. See the beep codes section of this manual. 2. See the TYAN’s website for FAQ’s, bulletins, driver updates, and other information: http://www.tyan.com 3. Contact your dealer for help before calling TYAN. 4. Check the TYAN user group: alt.comp.periphs.mainboard.TYAN...
  • Page 74 -mber. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. ® TYAN GT24-B7016 Service Engineer’s Manual V1.00 Document No.:...
