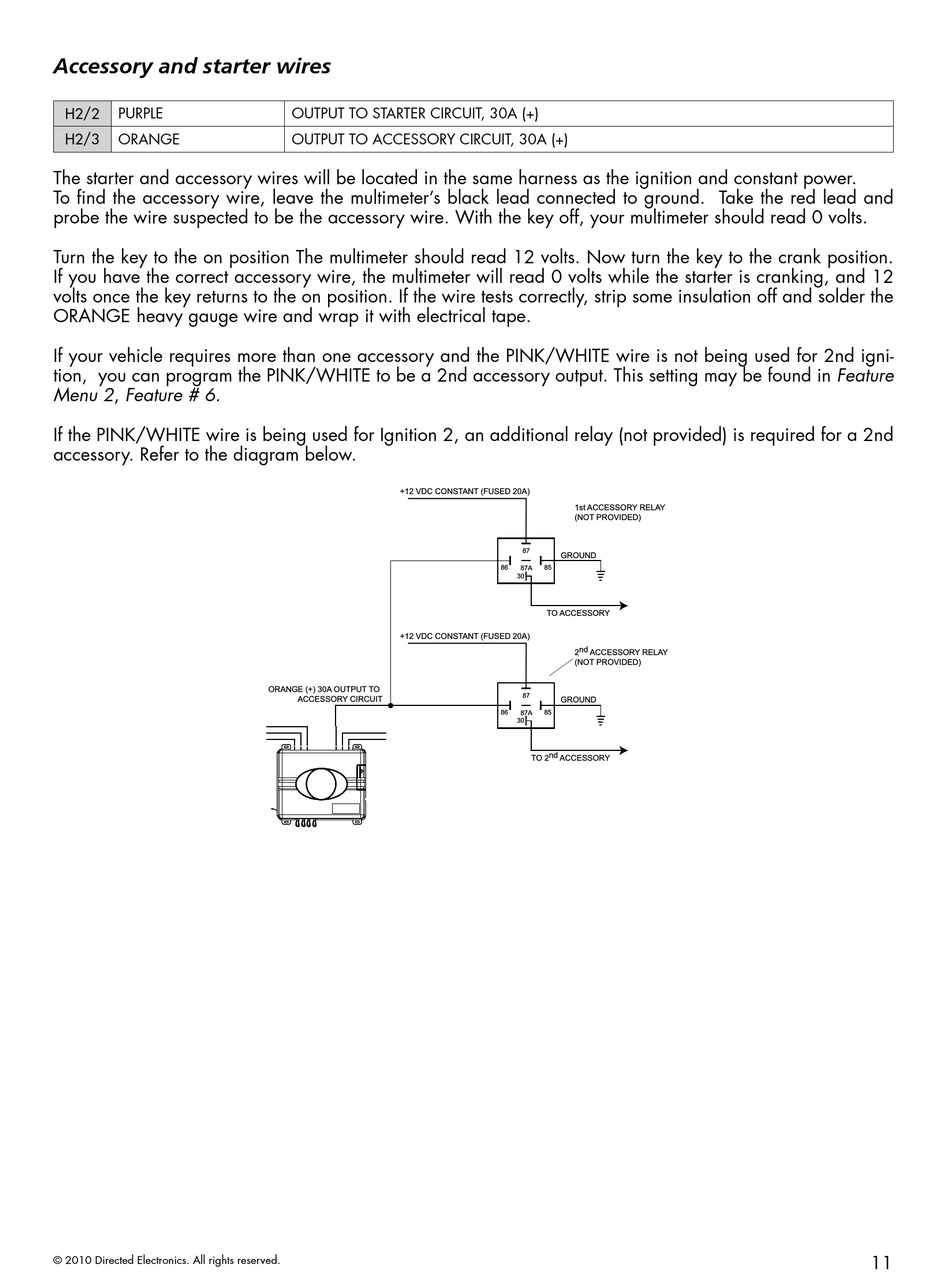

Accessory and starter wires

H2/2 PURPLE
H2/3 ORANGE
The starter and accessory wires will be located in the same harness as the ignition and constant power.
To find the accessory wire, leave the multimeter's black lead connected to ground. Take the red lead and
probe the wire suspected to be the accessory wire. With the key off, your multimeter should read 0 volts.
Turn the key to the on position The multimeter should read 12 volts. Now turn the key to the crank position.
If you have the correct accessory wire, the multimeter will read 0 volts while the starter is cranking, and 12
volts once the key returns to the on position. If the wire tests correctly, strip some insulation off and solder the
ORANGE heavy gauge wire and wrap it with electrical tape.
If your vehicle requires more than one accessory and the PINK/WHITE wire is not being used for 2nd igni-
tion, you can program the PINK/WHITE to be a 2nd accessory output. This setting may be found in Feature
Menu 2, Feature # 6.
If the PINK/WHITE wire is being used for Ignition 2, an additional relay (not provided) is required for a 2nd
accessory. Refer to the diagram below.
