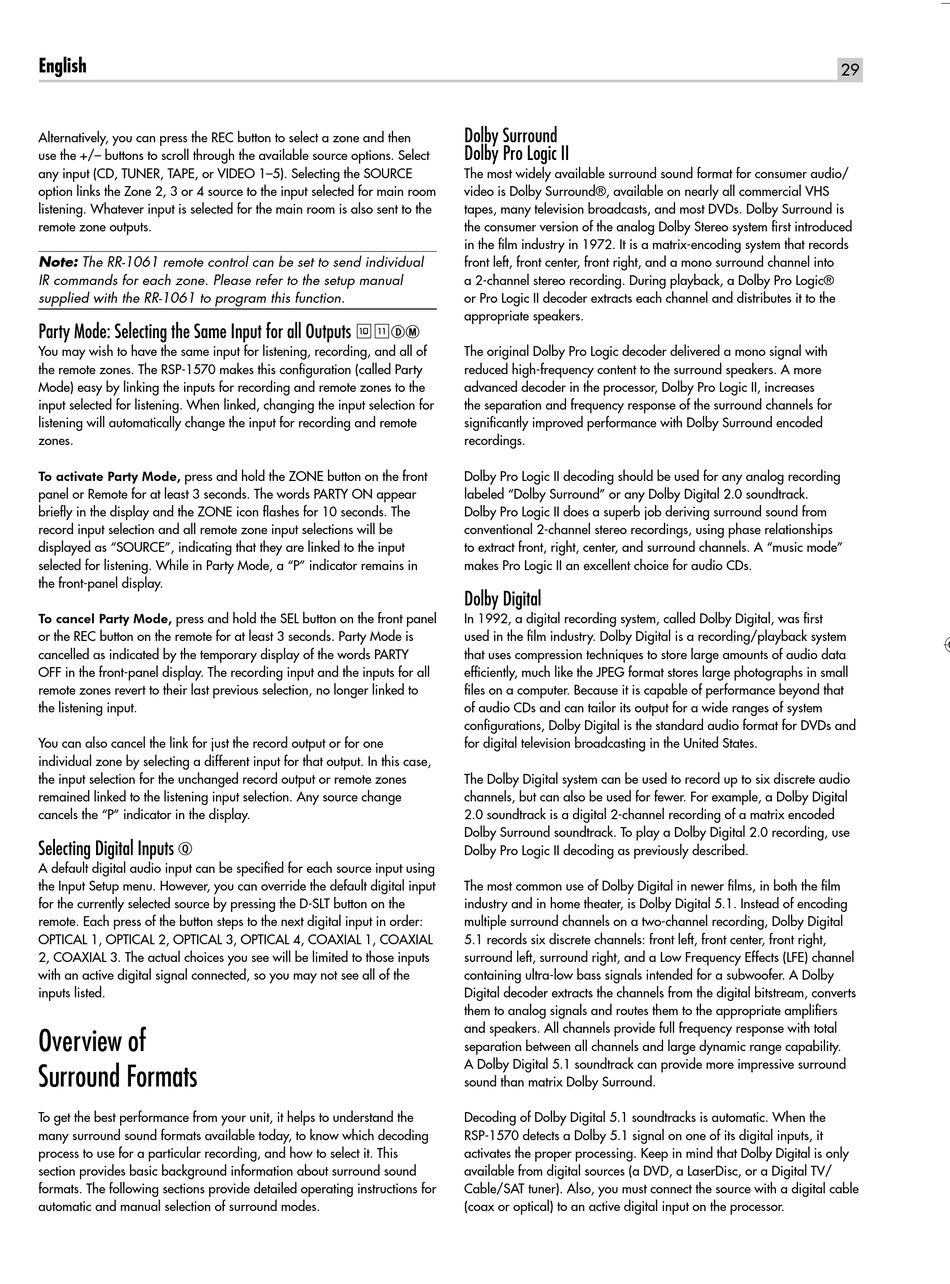

Alternatively, you can press the REC button to select a zone and then
use the +/– buttons to scroll through the available source options. Select
any input (CD, TUNER, TAPE, or VIDEO 1–5). Selecting the SOURCE
option links the Zone 2, 3 or 4 source to the input selected for main room
listening. Whatever input is selected for the main room is also sent to the
remote zone outputs.
Note: The RR-1061 remote control can be set to send individual
IR commands for each zone. Please refer to the setup manual
supplied with the RR-1061 to program this function.
Party Mode: Selecting the Same Input for all Outputs
You may wish to have the same input for listening, recording, and all of
the remote zones. The RSP-1570 makes this configuration (called Party
Mode) easy by linking the inputs for recording and remote zones to the
input selected for listening. When linked, changing the input selection for
listening will automatically change the input for recording and remote
zones.
To activate Party Mode, press and hold the ZONE button on the front
panel or Remote for at least 3 seconds. The words PARTY ON appear
briefly in the display and the ZONE icon flashes for 10 seconds. The
record input selection and all remote zone input selections will be
displayed as "SOURCE", indicating that they are linked to the input
selected for listening. While in Party Mode, a "P" indicator remains in
the front-panel display.
To cancel Party Mode, press and hold the SEL button on the front panel
or the REC button on the remote for at least 3 seconds. Party Mode is
cancelled as indicated by the temporary display of the words PARTY
OFF in the front-panel display. The recording input and the inputs for all
remote zones revert to their last previous selection, no longer linked to
the listening input.
You can also cancel the link for just the record output or for one
individual zone by selecting a different input for that output. In this case,
the input selection for the unchanged record output or remote zones
remained linked to the listening input selection. Any source change
cancels the "P" indicator in the display.
Selecting Digital Inputs
Q
A default digital audio input can be specified for each source input using
the Input Setup menu. However, you can override the default digital input
for the currently selected source by pressing the D-SLT button on the
remote. Each press of the button steps to the next digital input in order:
OPTICAL 1, OPTICAL 2, OPTICAL 3, OPTICAL 4, COAXIAL 1, COAXIAL
2, COAXIAL 3. The actual choices you see will be limited to those inputs
with an active digital signal connected, so you may not see all of the
inputs listed.
Overview of
Surround Formats
To get the best performance from your unit, it helps to understand the
many surround sound formats available today, to know which decoding
process to use for a particular recording, and how to select it. This
section provides basic background information about surround sound
formats. The following sections provide detailed operating instructions for
automatic and manual selection of surround modes.
Dolby Surround
Dolby Pro Logic II
The most widely available surround sound format for consumer audio/
video is Dolby Surround®, available on nearly all commercial VHS
tapes, many television broadcasts, and most DVDs. Dolby Surround is
the consumer version of the analog Dolby Stereo system first introduced
in the film industry in 1972. It is a matrix-encoding system that records
front left, front center, front right, and a mono surround channel into
a 2-channel stereo recording. During playback, a Dolby Pro Logic®
or Pro Logic II decoder extracts each channel and distributes it to the
appropriate speakers.
0-DM
The original Dolby Pro Logic decoder delivered a mono signal with
reduced high-frequency content to the surround speakers. A more
advanced decoder in the processor, Dolby Pro Logic II, increases
the separation and frequency response of the surround channels for
significantly improved performance with Dolby Surround encoded
recordings.
Dolby Pro Logic II decoding should be used for any analog recording
labeled "Dolby Surround" or any Dolby Digital 2.0 soundtrack.
Dolby Pro Logic II does a superb job deriving surround sound from
conventional 2-channel stereo recordings, using phase relationships
to extract front, right, center, and surround channels. A "music mode"
makes Pro Logic II an excellent choice for audio CDs.
Dolby Digital
In 1992, a digital recording system, called Dolby Digital, was first
used in the film industry. Dolby Digital is a recording/playback system
that uses compression techniques to store large amounts of audio data
efficiently, much like the JPEG format stores large photographs in small
files on a computer. Because it is capable of performance beyond that
of audio CDs and can tailor its output for a wide ranges of system
configurations, Dolby Digital is the standard audio format for DVDs and
for digital television broadcasting in the United States.
The Dolby Digital system can be used to record up to six discrete audio
channels, but can also be used for fewer. For example, a Dolby Digital
2.0 soundtrack is a digital 2-channel recording of a matrix encoded
Dolby Surround soundtrack. To play a Dolby Digital 2.0 recording, use
Dolby Pro Logic II decoding as previously described.
The most common use of Dolby Digital in newer films, in both the film
industry and in home theater, is Dolby Digital 5.1. Instead of encoding
multiple surround channels on a two-channel recording, Dolby Digital
5.1 records six discrete channels: front left, front center, front right,
surround left, surround right, and a Low Frequency Effects (LFE) channel
containing ultra-low bass signals intended for a subwoofer. A Dolby
Digital decoder extracts the channels from the digital bitstream, converts
them to analog signals and routes them to the appropriate amplifiers
and speakers. All channels provide full frequency response with total
separation between all channels and large dynamic range capability.
A Dolby Digital 5.1 soundtrack can provide more impressive surround
sound than matrix Dolby Surround.
Decoding of Dolby Digital 5.1 soundtracks is automatic. When the
RSP-1570 detects a Dolby 5.1 signal on one of its digital inputs, it
activates the proper processing. Keep in mind that Dolby Digital is only
available from digital sources (a DVD, a LaserDisc, or a Digital TV/
Cable/SAT tuner). Also, you must connect the source with a digital cable
(coax or optical) to an active digital input on the processor.
