Rotel RSP-1069 Technical Manual

T echnical
Manual
Table of Contents
Specification......................................1
Parts List...........................................2~13
Upgrade Procedure..........................14~20
Wiring................................................21
Specifications
Audio
Total Harmonic Distortion
<0.008%
Intermodulation Distortion (60 Hz:7 kHz)
<0.008%
Frequency Response
10 Hz – 120 kHz, ±3dB (analog bypass)
10 Hz – 95 kHz, ±3dB (digital input)
Signal to Noise Ratio (IHF A-weighted)
95dB (analog bypass)
92dB (Dolby Digital, dts) 0dBFs
Input Sensitivity/Impedance
Line Level: 200 mV/100K ohms
Preamp Output Level/Output Impedance
1.0 V / 1K ohms
Contour (LF/HF)
±6dB at 50 Hz/15 kHz
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES,
DTS 96/24, DTS ES 96/24, LPCM (up to 192K),
HDCD, DVD-A (HDMI HD ONLY)
THE ROTEL CO., LTD.
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Quality Uncompromised

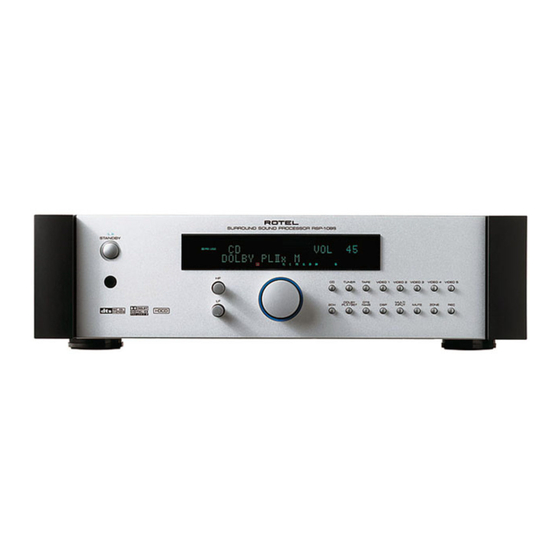

SURROUND SOUND PROCESSOR
Video
Input Resolutions
480i/576i
480p/576p
720p
1080i
1080p (HDMI only)
Output Resolutions
480i/576i (Composite, S-Video only)
480p/576p
720p
1080i
1080p (HDMI only)
HDMI Input/Output:
Version 1.1
Signal to Noise Ratio
45dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
®
RSP-1069
PCB Assembly..................................22~27
Schematic Diagram .........................28~44
General
Power Consumption:
80 watts
4.7 watts (standby)
Power Requirements (AC)
120 volts, 60Hz (USA version)
230 volts, 50Hz (CE version)
Weight
9.0 Kg/19.8 lb.
Dimensions (W x H x D)
432 x 122 x 341 mm
17.01" x 4.8" x 13.43"
Front Panel Height
(feet removed for rack mount)
109 mm / 4.29"
Serial. NO.
Beginning
Y-407A-0709/pdf
