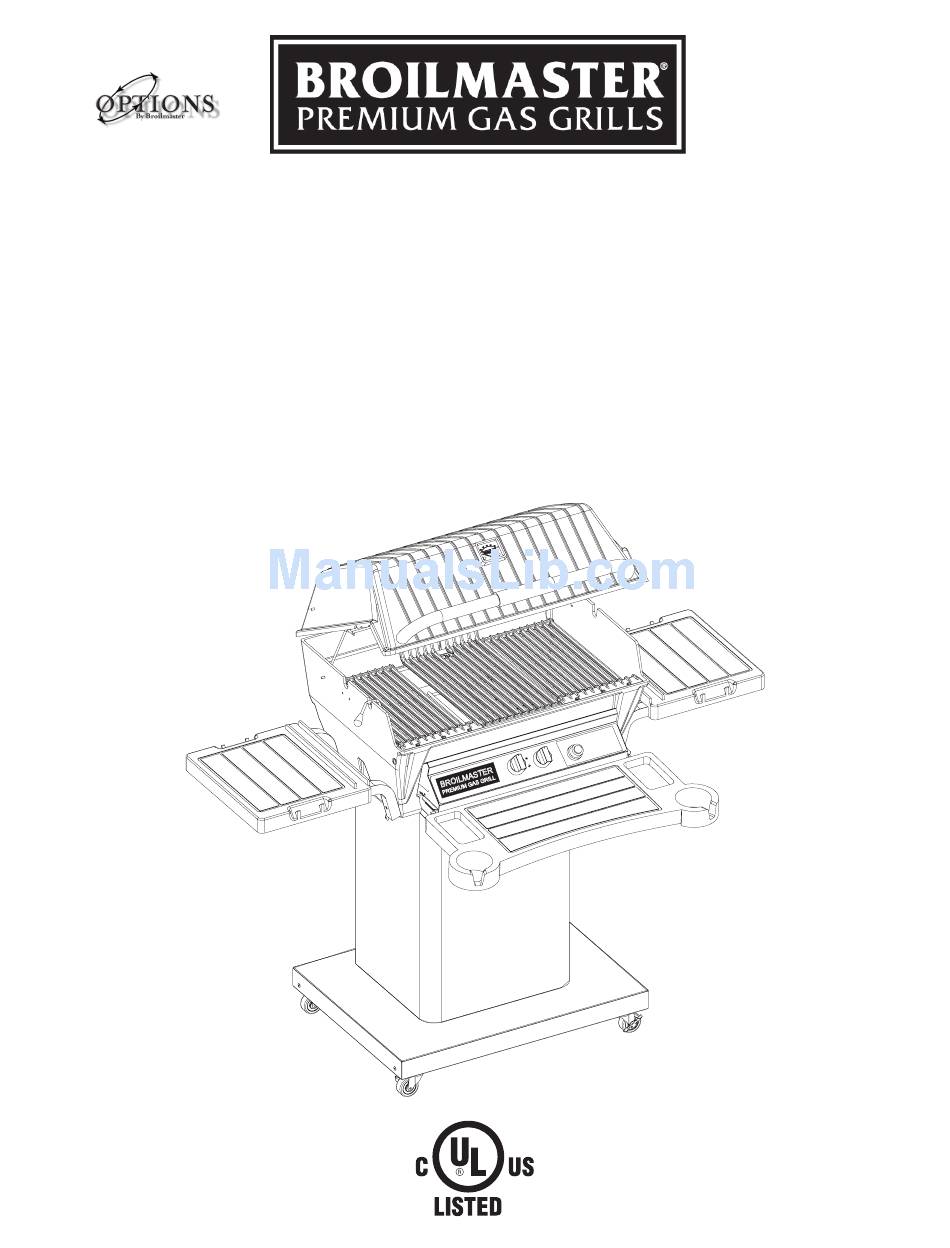

- Page 1 Premium "P" Gas Grill Owner’s Manual MODELS: P3S-1, P3SN-1 P3BL-2, P3BLW-2, P3BLN-2, P3BLWN-2 P3FBL-2, P3FBLN-2, P3FBLW-2, P3FBLWN-2 P4BL-1, P4BLN-1, P4BLW-2, P4BLWN-2 P4FBL-1, P4FBLN-1, P4FBLW-2, P4FBLWN-2 P4 Series Grill Shown With Optional Accessories GAS-FIRED Page 1...
- Page 2 Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation. WARNING Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill Protection ® Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An overfilled or improperly filled propane cylinder can be dangerous.
-
Page 3: Thank You
At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every effort will be made to ensure that Broilmaster continues to be your choice as the Premium grill of the future. Whether you are at the lake or in the privacy of your own backyard, the... -
Page 4: Table Of Contents
TABLE OF CONTENTS Congratulations! You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. ® Hardware Package ............................5 Parts Diagram ..............................6 Parts List ..............................7 & 8 Grill Assembly ............................ -
Page 5: Hardware Package
HARDWARE PACKAGE B101022 Stainless Steel HEX HEAD B101362-2-0610 Page 5... -
Page 6: Parts Diagram
To locate a dealer in your area, ® contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. -
Page 7: Parts List
PREMIUM "P" SERIES PARTS LIST Part Number Index Part Description P3BL & P3HG & P3GY & P3FBL & P3FGY & P3S & P3BLW & P3FBLW & P3BLN P3HGN P3GYN P3FBLN P3FGYN P3SN P3BLWN P3FBLWN Grill Body Top (with heat indicator, hinge, B100453 B100455 B100454... -
Page 8: Parts List
PREMIUM "P" SERIES PARTS LIST (cont.) Part Number Index Part Description P4BL P4HG P4GY P4FBL P4FGY P4BLW P4FBLW Number P4BLN P4HGN P4GYN P4FBLN P4FGYN P4BLWN P4FBLWN Grill Body Top (with heat indicator, hinge, and B073286 B076830 B073282 B073286 B073282 B073286 B073286 bridge pins) Grill Body Top (casting only) -
Page 9: Grill Assembly
Follow all instructions unless noted to apply only to other specific Do NOT use power tools. models. • Phillips screwdriver If you purchased an accessory with your Broilmaster, follow • Adjustable wrench set the instructions provided with the accessory for assembly and • Socket set installation. - Page 10 GRILL ASSEMBLY Ignitor Assembly Figure 1 Slide the collector box spacer (26) and nut (provided on assembly) onto the collector box shaft and tighten. See Figure 1. Note: Peel protective film from control panel label before installing ignitor. Figure 2 Installing the Ignitor Caution: Do not cut or damage ignitor wire.
- Page 11 GRILL ASSEMBLY Radiation Shield Figure 3 Place the radiation shield (10) in the grill bottom (22). See Figure 3. Installing the Burner Insert the burner assembly (9) into the grill bottom (22) with the venturi tubes facing the front of the grill. See Figure 4. The gas jets from the control valve will be inside the ends of the venturi tubes when properly installed.
- Page 12 GRILL ASSEMBLY Handle Figure 6 For your added comfort a foam grip (4) has been provided. See Figure 7. Tip: For ease of installation, slightly lubricate the front handle with liquid soap before pushing the foam grip into place. Fasten the front handle (3) to the grill lid (1) with two #10-24 x 1" screws.
-
Page 13: Grill Assembly
GRILL ASSEMBLY Installing Racks Place the briquet rack (8) or flavor screen rack (28) on the burner assembly. Figure 9a Position the flavor screen (29) on to flavor screen rack (28) or the ceramic briquets (7) evenly on the briquette rack without overlap- ping. -
Page 14: Propane Gas Grills
PROPANE GAS GRILLS Grill Location Gas Type Never use Liquid Propane (LP) gas with a grill designed for Natural When choosing the ideal location for your Broilmaster Premium ® gas, or Natural gas with a grill designed for Liquid Propane gas. - Page 15 Never attempt to use or repair a cylinder with a faulty or mended procedures. damaged valve outlet. A cylinder that has been dropped, dented, or otherwise damaged must be replaced. Warning: Broilmaster Premium Gas Grills require Liquid ® Propane (LP) cylinders equipped with an Overfill Protection A propane gas cylinder should never be transported in the passenger Device (OPD).
- Page 16 The pressure regulator’s fitting must remain clean and free of nicks and scratches. A dirty, nicked or scratched fitting can cause a gas leak, resulting in an explosion or fire. Use only genuine Broilmaster replacement parts unless otherwise specified by the manufacturer.
-
Page 17: Gas Conversion
GAS CONvERSION Gas Conversion Remove the hose and regulator from the valve. Replace the components inside of your grill. Propane grills include a conversion kit for natural gas. If you have Remove the knobs from the valve assembly and locate the adjust- a natural grill and wish to convert it to propane you will need to ment screws on the inside of the valve stem. -
Page 18: Natural Gas Grills
NATURAL GAS GRILLS Grill Location Gas Type The type gas required for your grill can be determined from the When choosing the ideal location for your Broilmaster Premium ® product identification label located on the grill’s control panel. Gas Grill, remember this grill is designed for outdoor use ONLY. -
Page 19: Operation- Propane & Natural Grills
Operating Instructions Checking for Gas Leaks Using the Ignitor Check for gas leaks every time you connect your Broilmaster ® Caution: If a burner fails to light after 5 seconds, turn the propane gas grill to a Propane gas cylinder, when a connected... -
Page 20: Operation
Do not expose an electrical accessory to water. Avoid using any electrical accessory in wet weather as it may present a shock Cooking hazard. Broilmaster is happy to provide a cookbook with each of its grills. ® Keep any electrical cord and fuel supply hose away from all heated The cookbook contains helpful cooking tips and instructions as surfaces. -
Page 21: Maintenance
Grease Tray Clean regularly with a solution of mild detergent and hot water. Empty periodically. Replacement tray liners can be purchased at Touch-up paint is available from your dealer. Broilmaster pro- ® most supermarkets where disposable aluminum baking pans are tective covers are recommended. -
Page 22: Troubleshooting
TROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, some- times problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Gas injector not inserted in venturi Realign/engage gas injector with the tube. -
Page 23: Warranty
WHAT IS COvERED AND FOR HOW LONG • From the date this Broilmaster Premium Grill is first purchased, we will make available at our factory a free replacement for any defective parts covered by this warranty on the following basis. Proof of purchase required. - Page 24 BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 .broilmaster.com isit our web site at www if you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer.
