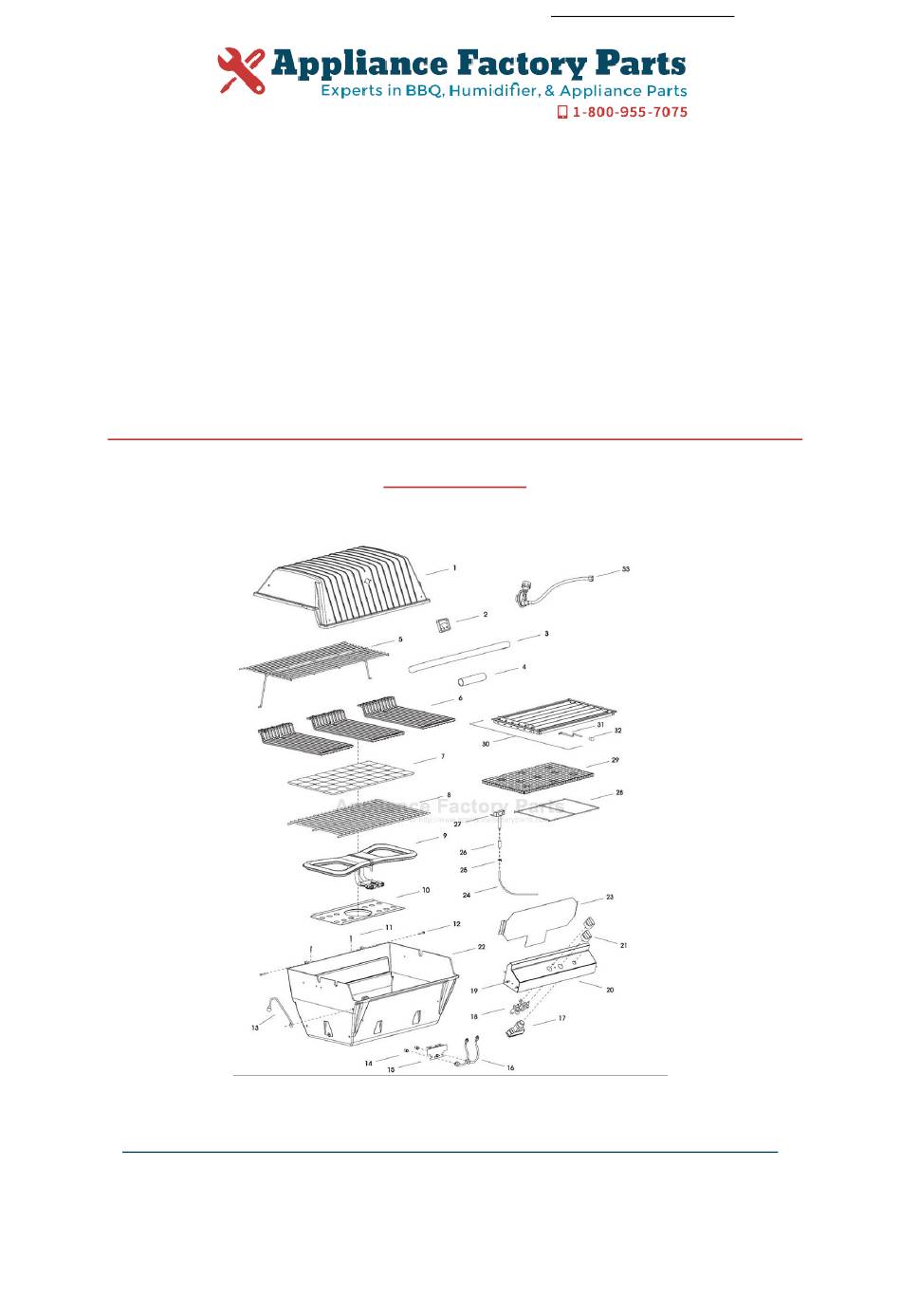

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Broilmaster P3HGCN6 Owner's Manual Shop genuine replacement parts for Broilmaster P3HGCN6 Find Your Broilmaster Grill Parts - Select From 310 Models -------- Manual continues below --------...

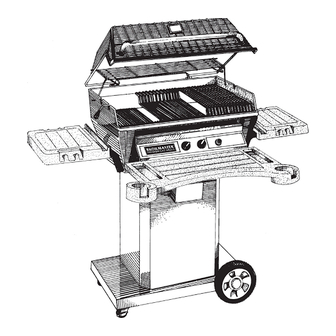

- Page 2 Premium "P" Gas Grill Owner’s Manual Optional Accessories Shown P3-1 and P4-1 Models B100911-3-0806 B100911-3-0806 Page 1...
-
Page 3: If You Smell Gas
IMPORTANT This manual should be read thoroughly by the person installing the grill and all persons who will use and maintain the grill. The installer should be sure the manual is left in the possession of the user. The user should retain this manual for future reference when using or cleaning the grill and to properly identify any repair parts that may be required. - Page 4 Congratulations! Welcome to the beauty, durability, and prestige of a Premium Gas Grill by Broilmaster . With award-winning excellence built into ® every feature and durability that surpasses other Premium gas grills, Broilmaster has manufactured the ultimate gas grill for discriminating outdoor chefs for over 30 years.
-
Page 5: Table Of Contents
ABLE OF ONTENTS Congratulations! You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. ® Hardware Package ..........................5 Parts Diagram ............................6 Parts List ............................7 & 8 Grill Assembly .......................... -
Page 6: Hardware Package
Hardware Package (FOR POST INSTALLATION) (FOR POST INSTALLATION) B100911-3-0806 Page 5... -
Page 7: Parts Diagram
arts iagram All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your ® area, contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. - Page 8 "P" S remium eries arts Index Part Description P3BL-1 P3HG-1 P3GY-1 P3FBL-1 P3FGY-1 P3S-1 P3BLN-1 P3HGN-1 P3GYN-1 P3FBLN-1 P3FGYN-1 Grill Body Top (with heat indicator, hinge, and bridge pins) B100453 B100455 B100454 B100453 B100454 B100453 Grill Body Top (casting only) B100456 B100459 B100458...
- Page 9 "P" S remium eries arts ist (Cont.) Index Part Description P4BL-1 P4HG-1 P4GY-1 P4FBL-1 P4FGY-1 P4BLN-1 P4HGN-1 P4GYN-1 P4FBLN-1 P4FGYN-1 Grill Body Top (with heat indicator, hinge, and bridge pins) B073286 B076830 B073282 B073286 B073282 Grill Body Top (casting only) B076621 B100151 B100149...
-
Page 10: Grill Assembly
RILL SSEMBLY Before You Begin Recommended Tools All Broilmaster grills require some assembly and These items are recommended for the assembly of your installation. Follow all instructions unless noted to apply grill: only to other specific models. • Phillips screwdriver If you purchased an accessory with your Broilmaster, •... -
Page 11: Ignitor Assembly
RILL SSEMBLY Ignitor Assembly Figure 1 Slide the collector box spacer (26) and nut (pro- vided on assembly) onto the collector box shaft and tighten. Figure 1. Note: Peel protective film from control panel label before installing ignitor. Figure 2 Installing the Ignitor Caution: Do not cut or damage ignitor wire. -
Page 12: Radiation Shield
RILL SSEMBLY Radiation Shield Figure 3 Place the radiation shield (10) in the grill bottom (22). Figure 3. Installing the Burner Insert the burner assembly (9) into the grill bottom (22) with the venturi tubes facing the front of the grill. Fig- ure 4. - Page 13 RILL SSEMBLY Figure 6 Handle For your added comfort a foam grip (4) has been pro- vided. Figure 7. Tip: For ease of installation, slightly lubricate the front handle with liquid soap before pushing the foam grip into place. Fasten the front handle (3) to the grill lid (1) with two #10-24 x 1"...
-
Page 14: Installing Racks
RILL SSEMBLY Installing Racks Place the briquet rack (8) or flavor screen rack (28) on the burner assembly. Figure 9 Position the flavor screen (29) on to flavor screen rack (28) or the ceramic briquets (7) evenly on the briquette rack without overlapping. -
Page 15: Propane Gas Grills
ROPANE RILLS Grill Location Gas Type Never use Liquid Propane (LP) gas with a grill designed When choosing the ideal location for your Broilmaster ® for Natural gas, or Natural gas with a grill designed for Premium Gas Grill, remember this grill is designed for Liquid Propane gas. -
Page 16: Connection Requirements
ROPANE RILLS Propane Cylinder Safety Connection Requirements Liquid Propane (LP) gas has a long history of safe use Caution: Never use Liquid Propane (LP) gas in a when the safety precautions provided in this manual grill designed for Natural gas, or Natural gas in a are followed. - Page 17 ROPANE RILLS Pressure Regulator and Hose Assembly The pressure regulator has an outlet pressure of not more than eleven (11") inches water column. It must be connected to the Propane gas cylinder’s female valve outlet before the grill can be operated. Caution: Operation of a Propane gas grill without the pressure regulator and hose assembly will cause gas leaks which could lead to fire or explosion, resulting in property damage or personal injury.
-
Page 18: Gas Conversion
Gas Conversion Gas Conversion Remove the hose and regulator from the valve. Propane grills include a conversion kit for natural Replace the components inside of your grill. gas. If you have a natural grill and wish to convert Mueller it to propane you will need to purchase the optional conversion kit #BCK195. -
Page 19: Gas Valve
Gas Valve Identifying Your Valve Valve mounting flange Valve stem cap Stamping on exterior of valve Gas inlet connection Page 18 B100911-3-0806... -
Page 20: Natural Gas Grills
ATURAL RILLS Grill Location Gas Type The type gas required for your grill can be determined When choosing the ideal location for your Broilmaster ® Premium Gas Grill, remember this grill is designed for from the product identification label located on the grill’s control panel. -
Page 21: Operation- Propane & Natural Grills
peration - ropane & atural rills Operating Instructions Checking for Gas Leaks Using the Ignitor Check for gas leaks every time you connect your Broil- Caution: If a burner fails to light after 5 sec- master propane gas grill to a Propane gas cylinder, ®... -
Page 22: Before Cooking
PERATION Electrical Accessories Before Cooking If an electrical accessory (e.g. rotisserie) is used on your Before cooking on a grill for the first time, it should be broken in to burn off any oil residue from the grill, the accessory must be electrically grounded in accordance with local codes or, in the absence of local manufacturing process. -
Page 23: Maintenance
aintenance Cleaning the Grill Venturi Tubes Caution: To prevent injury, use care when The venturi tubes allow air and gas to mix prior to cleaning a hot grill. burning, thus ensuring an efficient flame. Spiders or other small insects may build webs or nests inside the tubes Note: Do not use a commercial cleaner on the obstructing air flow. -
Page 24: Troubleshooting
ROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Gas injector not inserted in ven- Realign/engage gas injector with the turi tube. -
Page 25: What Is Covered And For How Long
WARRANTY TERMS The Most Durable Grill Known To Man Lifetime • Aluminum Grill Housing (except paint) • Porcelain Coated Cast Iron Cooking Grids • Cast Stainless Steel Cooking Grids (Damage caused by dropping, scraping, or abrasive cleaning voids the warranty for cooking grids) •... -
Page 26: Notes
Notes B100911-3-0806 Page 25... - Page 27 Notes Page 26 B100911-3-0806...
- Page 28 Notes B100911-3-0806 Page 27...
- Page 29 URABLE RILL NOWN BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Phone: 1-800-851-3153 FAX: 1-800-443-8648 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 28 B100911-3-0806...
