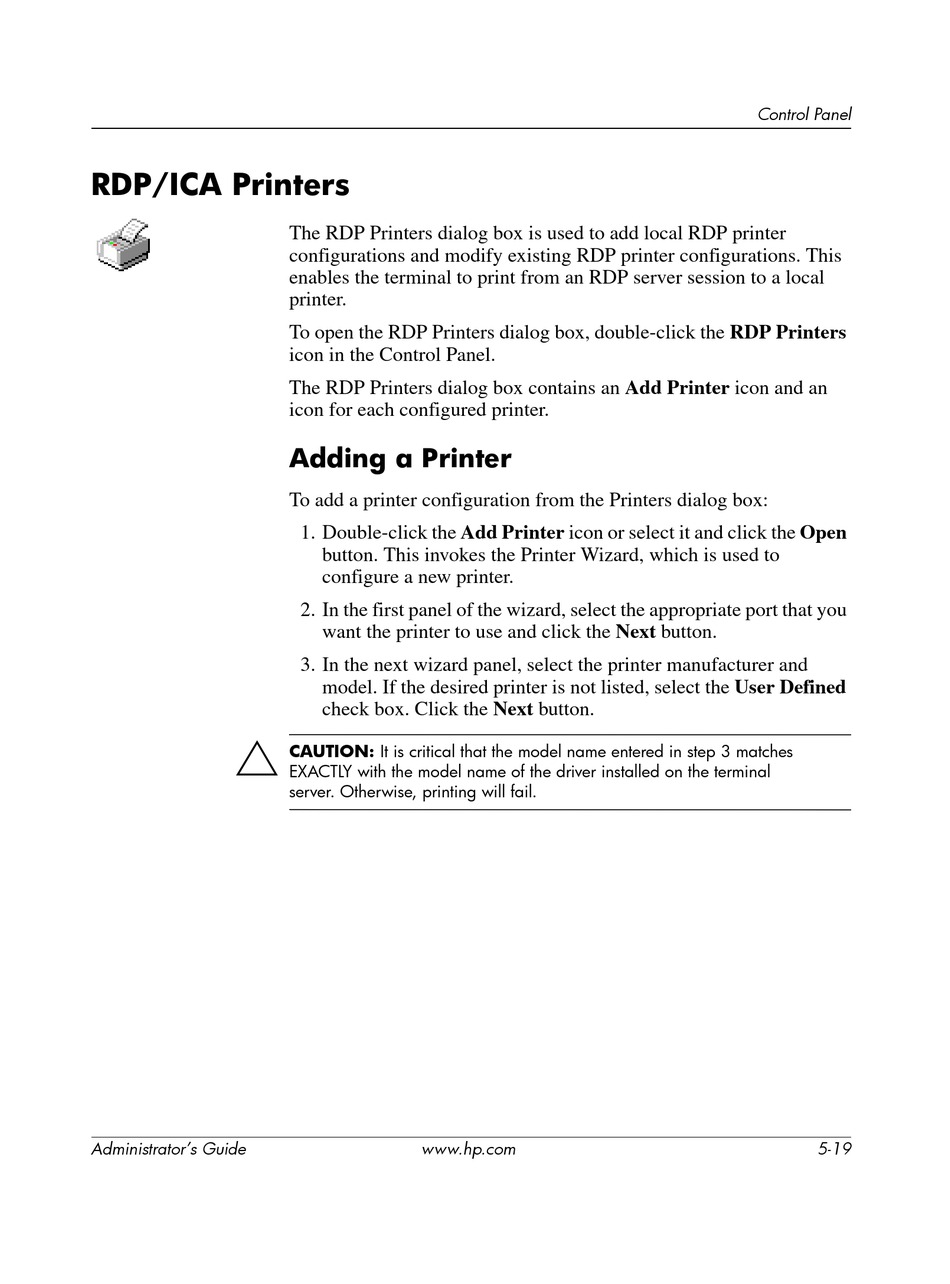

RDP/ICA Printers

Ä
Administrator's Guide
The RDP Printers dialog box is used to add local RDP printer
configurations and modify existing RDP printer configurations. This
enables the terminal to print from an RDP server session to a local
printer.
To open the RDP Printers dialog box, double-click the RDP Printers
icon in the Control Panel.
The RDP Printers dialog box contains an Add Printer icon and an
icon for each configured printer.

Adding a Printer

To add a printer configuration from the Printers dialog box:
1. Double-click the Add Printer icon or select it and click the Open
button. This invokes the Printer Wizard, which is used to
configure a new printer.
2. In the first panel of the wizard, select the appropriate port that you
want the printer to use and click the Next button.
3. In the next wizard panel, select the printer manufacturer and
model. If the desired printer is not listed, select the User Defined
check box. Click the Next button.
CAUTION: It is critical that the model name entered in step 3 matches
EXACTLY with the model name of the driver installed on the terminal
server. Otherwise, printing will fail.
www.hp.com
Control Panel
5-19
