Summary of Contents for Bogen UDMS16BP

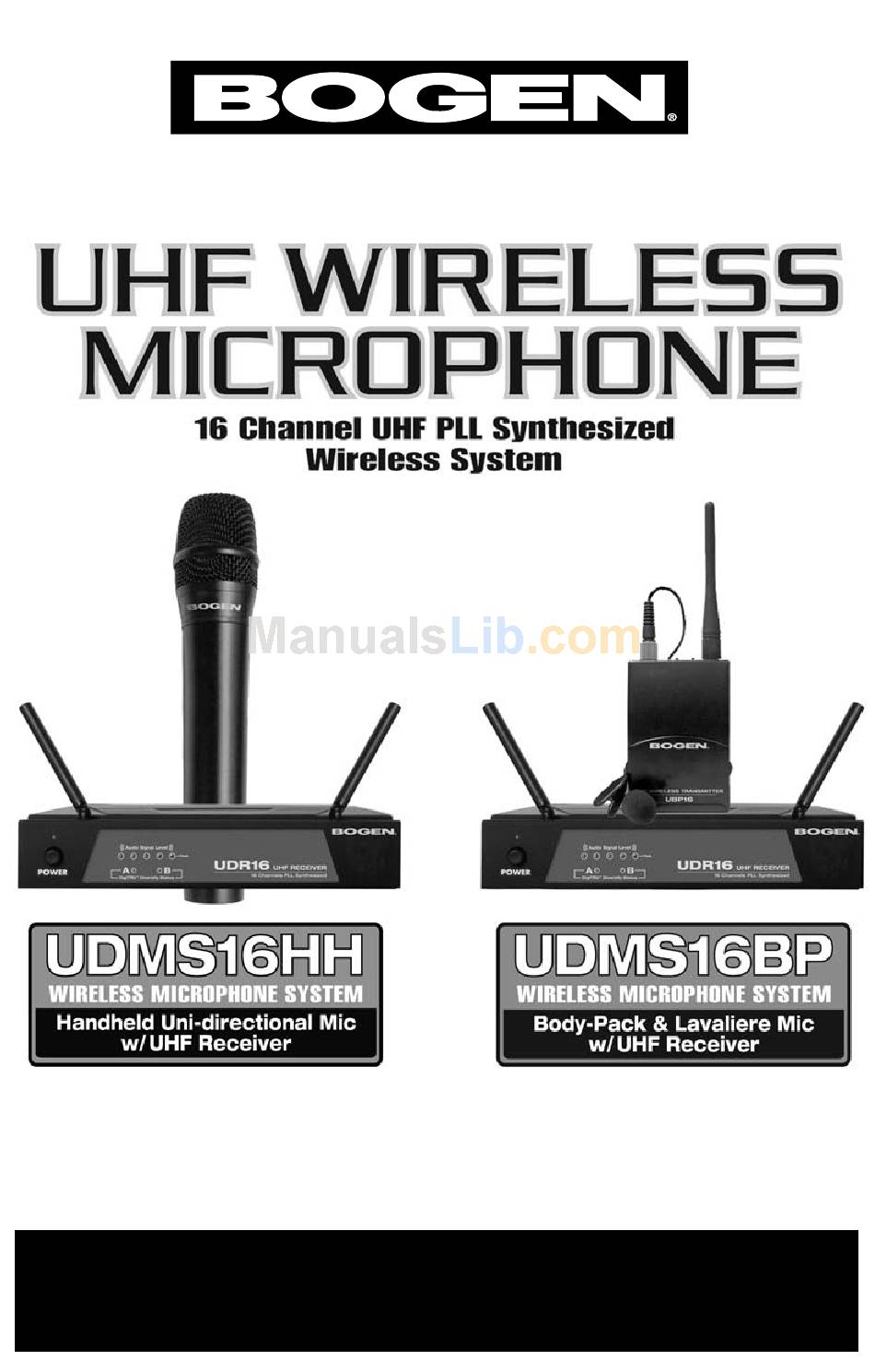

- Page 1 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
This system includes high quality professional operating features and is the best performance and price value available in UHF PLL Synthesized wireless systems. This manual lists the features of the UDMS16BP/HH Wireless System and takes you step-by-step through operation of the system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system. -
Page 3: System.features
UDR16.RECEIVER. • Frequency rotary DIP switch with 16 user-selectable channels in the wide- open UHF band for interference-free use anywhere • 120dB Dynamic Range • 150-250 ft. typical operating range — up to 500+ ft. line-of-sight • DigiTRU Diversity™ for maximum range and dropout protection •... -
Page 4: Udr16.Receiver
1..Rack.Mounting.the.Receiver There are 2 options available (as accessories) for rack mounting the UDR16 receiver: single or side-by-side with another UDR16 receiver. a. Single mounting: Remove the receiver SIDE.MOUNT.CLIPS.(1) from each side of the receiver (as shown) and slide in the optional wider RACK.EARS.(2). b. - Page 5 5...Channel.Selection Turn the frequency rotary DIP.SWITCH.(11) to one of the sixteen channels. The slot on the switch shaft should match a number or letter on the dial, which indicates the selected channel. 6..Audio.Level.and.Peak.LED.Indicator The UDR16 receiver is equipped with a five segment LED.AUDIO.LEVEL.DISPLAY. .
- Page 6 UDR16.UHF.Receiver...
-
Page 7: Uht16.Handheld.microphone.transmitter
UHT16.HANDHELD.MICROPHONE.TRANSMITTER 1. Install batteries by unscrewing the BATTERY. COMPARTMENT. COVER. (28)..counterclockwise and remove, exposing the BATTERY.HOLDER.(26). Insert two fresh AA. ALKALINE. BATTERIES. (27), observing the correct polarity, and screw the cover back on to the microphone. Make sure the cover is screwed clockwise completely. -
Page 8: Ubp16.Bodypack.microphone.transmitter
UBP16.BODYPACK.MICROPHONE.TRANSMITTER 1. Open the BATTERY.DOOR.(30) by pulling on side tabs and swinging the lid open. Insert two fresh AAA ALKALINE BATTERIES into the BATTERY.COMPARTMENT..(31), observing the correct polarity. Fresh alkaline batteries can last up to 5 hours in use, but in order to ensure optimum performance, it is recommended that the batteries be replaced after 3-4 hours of use. - Page 9 (Note: Observe care in selecting P.A. volume, transmitter location, and speaker placement so that acoustic feedback (howling and screeching) will be avoided. Please also note the pickup pattern characteristics of the microphone selected. Omni-directional mics pickup sound equally from all directions, and are prone to feedback if not used carefully.
- Page 10 UBP16.Body-Pack CLIP located on rear of Unit...
-
Page 11: Specifications
OVERALL.SYSTEM.PERFORMANCE. RF.Carrier.Frequency...UHF, 16-frequency group in separate bands within Frequency.Stability...+/- 0.005%, PLL synthesized Modulation...FM (F3E), +/- 50 kHz normal Frequency.Response...30 Hz - 21 kHz, -3dB Dynamic.Range...120 dB Total.Harmonic.Distortion...< 0.5% Operating.Range...Up to 250 ft. typical (depending on site conditions); UDR16.RECEIVER Reception.Mode...DigiTRU Diversity™ (Dual Antenna) Unwanted.Signal.Rejection...>90 dB image and spurious Squelch...External Control, Tone Key (45 kHz) Controls...Power ON/OFF, Volume Control, Squelch Adjust,... -
Page 12: Warranty
In no event shall Bogen be liable for special, incidental or consequential damages (including, but not limited to, loss of profits, loss of data or loss of use damages) arising out of the manufacture, sale or supplying of products, even if Bogen has been advised of the possibility of such damages or losses.
