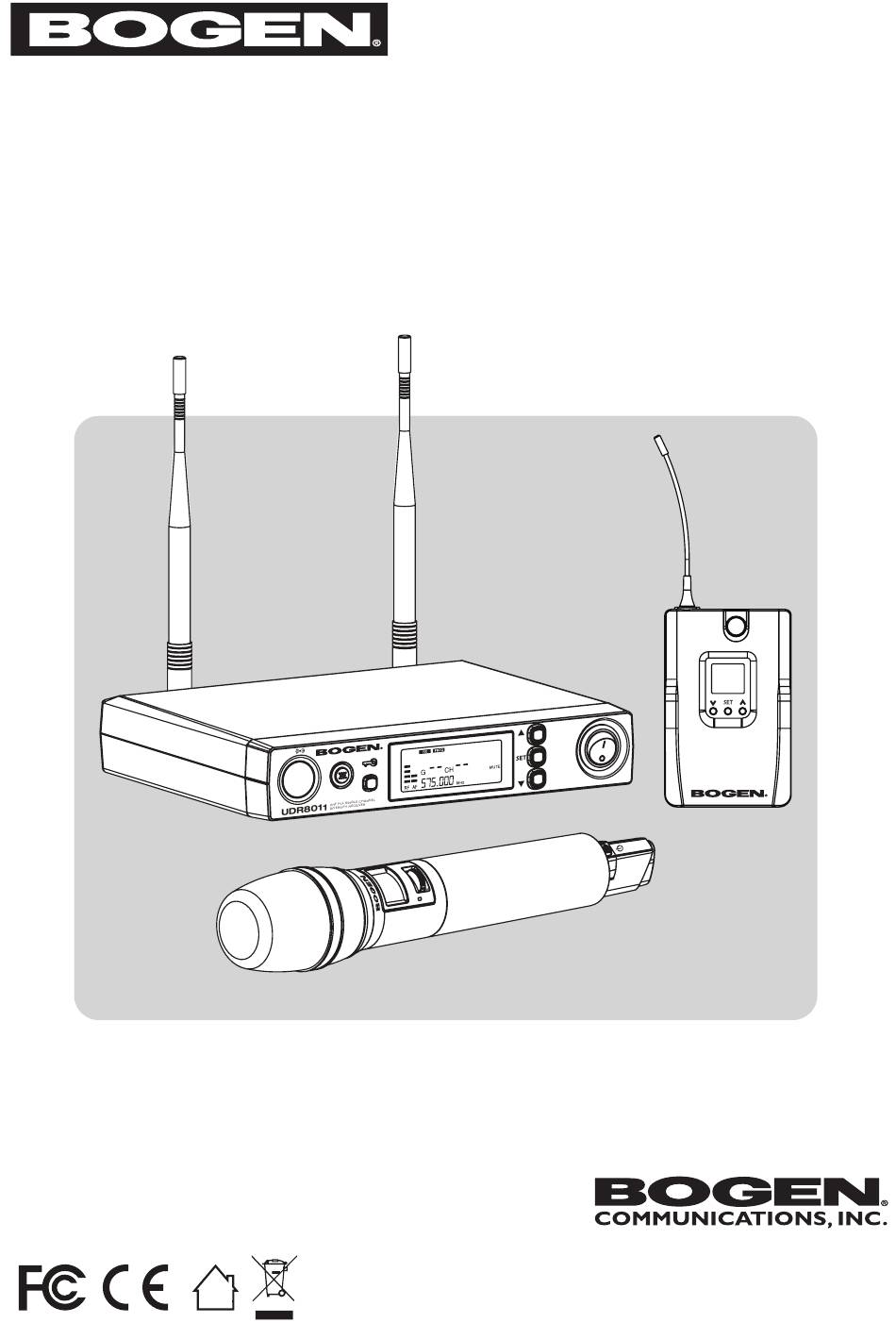

Model
UHF 8011 BP/HH
UHF PLL SINGLE CHANNEL DIVERSITY
WIRELESS SYSTEM
INSTRUCTION MANUAL
UHF 8011 BP/HH
UHF PLL SINGLE CHANNEL DIVERSITY
WIRELESS SYSTEM
UBP 8011
UHF PLL TRANSMITTER
www.bogen.com
©2019 Bogen Communications, Inc.
Specifications are subject to change.
740-00078D
1903

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF8011BP/HH and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen UHF8011BP/HH

Summary of Contents for Bogen UHF8011BP/HH

  • Page 1 Model UHF 8011 BP/HH UHF PLL SINGLE CHANNEL DIVERSITY WIRELESS SYSTEM INSTRUCTION MANUAL UBP 8011 UHF PLL TRANSMITTER UHF 8011 BP/HH www.bogen.com ©2019 Bogen Communications, Inc. Specifications are subject to change. 740-00078D 1903 UHF PLL SINGLE CHANNEL DIVERSITY WIRELESS SYSTEM...
  • Page 2 INSIDE FRONT PAGE INTENTIONALLY LEFT BLANK...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Notes for System Operation ......... . 2.

  • Page 4: Notes For System Operation

    1. Notes for System Operation • Before connecting the power, check that the power requirement shown on the unit is the same as the power output on the adapter supplied. • Do not operate the unit where humidity and temperature are high. •...

  • Page 5: Model Specifications

    3. Model Specifications 3-1 UDR8011 UHF PLL Single/Dual Channel Diversity Receiver MODEL UDR 8011 Frequency Mode Phase-locked loop (PLL) Frequency Range 470 ~ 960 MHz Sync Frequency Ultrasonic Bandwidth 36 MHz Signal/Noise Ratio > 105 dB(A) Total Harmonic Distortion < 0.6% @ 1kHz (Thd) -95 dBm Receiving Sensitivity...

  • Page 6: Uht8011 Uhf Pll Hand Held Transmitter

    MODEL UHT 8011 Frequency Mode Phase-locked loop (PLL) Frequency Range 470 ~ 960 MHz 3-2 UHT8011 UHF PLL Hand Held Transmitter Microphone Sync Frequency Ultrasonic RF Power Output 10m W / 50m W (as per local regulations) MODEL UHT 8011 RF Stability <...

  • Page 7: Bclm1 Condenser Lavalier Microphone

    BCLM 1 MODEL 4P Mini XLR Connector 100 ~ 15,000 Hz Frequency Response 3-4 BCLM1 Lavalier Microphone Cardioid Polar Pattern Sensitivity (at 1000Hz) -60 ± 3 dB* BCLM 1 MODEL 2.2k Impedance 4P Mini XLR Connector Max. SPL for 1% THD 130 dB 100 ~ 15,000 Hz Frequency Response...

  • Page 8: Description Of Parts

    4. Description of Parts 4-1 UDR8011 Receiver Feature Callouts - Front View UDR 8011 UHF PLL SINGLE CHANNEL DIVERSITY RECEIVER POWER: = ON and = OFF SET: Push and hold for 2 seconds to enter the Setting Mode. Push SET to advance to the next parameter.

  • Page 9: Udr8011 Receiver Unit Callouts - Rear View

    4-2 UDR8011 Receiver Feature Callouts - Rear View RECEIVING ANTENNA: BNC connection for 1/2 antenna. PHONE JACK (1/4” TS): Unbalanced audio output jack. 3P XLR MALE: Balanced audio output jack. STRAIN RELIEF : Securement for DC power cable. DC POWER SOCKET : 12-15 VDC / 300mA power supply.

  • Page 10: Udr8011 Receiver Lcd Display Callouts

    4-3 UDR8011 Receiver LCD Display Shown above in the non-Setting Mode : Audio Signal strength : RF Signal strength : Antenna A or B active : Transmitter Battery Level : Group/Channel : Volume Output : Button Lock : Receiver/Transmitter Mute : Output Attenuation : Frequency...

  • Page 11: Uht8011 Hand Held Transmitter Callouts

    4-4 UHT8011 Hand Held Transmitter Feature Callouts UHT 8011 REMOVABLE HANDLE COVER: Unscrew to access controls and batteries. LCD DISPLAY: Displays the parameter settings in the transmitter. LED INDICATOR: Displays the transmitter’s status, including battery level, mute and pairing indication. : Push and hold button for 2 seconds to lock the buttons/controls.

  • Page 12: Ubp8011 Body Pack Transmitter Callouts

    4-5 UBP8011 Body Pack Transmitter Feature Callouts FRONT REAR VIEW VIEW TOP VIEW UBP 8011 UHF PLL TRANSMITTER BOTTOM VIEW LED INDICATOR: Indicates the transmitter’s status, including battery level, mute and pairing indication. MICROPHONE INPUT PORT: 4P mini XLR jack MUTE/POWER: Push once to turn the unit on.

  • Page 13: Bclm1 Condenser Lavalier Microphone Callouts

    4-6 BCLM1 Condenser Lavalier Microphone (Standard with UBP8011) MIC CLIP BCLM 1 BCLM 1 MICROPHONE WINDSCREEN 4-PIN MINI XLR 4-7 UHFHSMB Headset Microphone (optional for UBP8011) ADJUSTABLE HEADBAND GOOSENECK MICROPHONE WINDSCREEN 4-PIN MINI XLR 4-8 Included Accessories AC/DC ADAPTOR (UDR8011-RPS): AC IN: AC100~240V, 50/60Hz DC OUT: DC12V/0.5A AF OUTPUT CABLE: (with 1/4”...

  • Page 14: Connecting

    5. Connecting 5-1 How to Connect the UDR8011 Receiver 1. Connect the audio output of receiver to mixer or amplifier UDR8011 Receiver The XLR balanced output jack or 1/4” unbalanced output jack can be used to connect the audio output to a mixer or an amplifier. 2.

  • Page 15: Uht8011 Hand Held Transmitter Installation

    5-2 Transmitter Installation UHT8011 Hand Held Transmitter 1. Unscrew the outer tube of the transmitter (Fig. 1). 2. Open panel door and place 2 AA batteries in the battery holder, ensuring they are in the correct polarities (Fig. 2). 3. Screw the outer tube on (Fig. 3). 4.

  • Page 16: Instructions For Use

    6. Instructions for Use 6-1 UDR8011 Receiver 1. Parameter Setting Push and hold the SET button to enter the Setting mode. Push the ▲/▼ button to select parameter. Push SET again to advance to the next parameter. UBP 8011 UHF PLL TRANSMITTER When RX receiver is selected: UDR 8011 UHF PLL SINGLE CHANNEL...
  • Page 17 When TX transmitter is selected: ◎ ATT: Microphone Audio Input Attenuation At oFF No attenuation. At on 20 dB attenuation at audio input). The function is activated with 20 dB of audio input attenuation. ◎ GAIN: Microphone Input Sensitivity High GAIN: +15 dB Sensitivity GAIN: +12 dB...

  • Page 18: Udr8011 Receiver Volume Adjustment

    2. Volume Adjustment In non-Setting Mode, adjust the volume from 0 to -31 dB using the button. ▲/▼ • The minimum volume is -31 dB. • The maximum volume is 0 dB. • The default setting is -10 dB. Note: This Volume affects the balanced and unbalanced outputs Minimum volume at -31 db;...

  • Page 19: How To Set Uht8011/Ubp8011 Transmitter Parameters

    6-2 UHT8011 Hand Held Transmitter and the UBP8011 Body Pack Transmitter 1. Parameter Setting Push and hold the SET button to enter the Setting mode. Push the ▲/▼ button to select parameter. Push SET again to advance to UBP 8011 UHF PLL TRANSMITTER the next parameter.
  • Page 20 UHT8011 UBP8011 ◎ ATT: Microphone Audio Input Attenuation At oFF No attenuation. At on 20 dB attenuation at audio input). Audio input attenuation at 20 dB. ◎ RFP: RF Transmitter Power rFP Lo 10mW 50mW rFP Hi The RF output is LO. The RF output is Hi.

  • Page 21: Additional Product Instructions

    7. Additional Product Instructions 1. For the best Sync results, always keep the UHT8011/UBP8011 transmitter within 12-inches of the UDR8011 receiver with Line of Sight. 2. The UDR8011 receiver and UHT8011/UBP8011 transmitter must be away from other metal objects, preferably 20-inches or farther. 3.

  • Page 22: Wireless System Frequency List

    8. Wireless System Frequency List...

  • Page 23: Warranty

    (as confirmed by Bogen upon inspection) during the applicable warranty period will be repaired or replaced by Bogen, at Bogen’s option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 4570 Shelby Air Drive, Suite 11, Memphis, TN 38118 USA.
  • Page 24 UHF 8011 BP/HH UHF PLL SINGLE CHANNEL DIVERSITY WIRELESS SYSTEM UBP 8011 UHF PLL TRANSMITTER UDR 8011 UHF PLL SINGLE CHANNEL DIVERSITY RECEIVER UHT 8011 UDR 8011 UBP 8011 www.bogen.com...
