Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the
monitor is able to plug-and-play. The DDC is a communication protocol through which
the monitor automatically informs the host system about its capabilities; for example,
supported resolutions and corresponding timing. The monitor supports the DDC2B
standard.

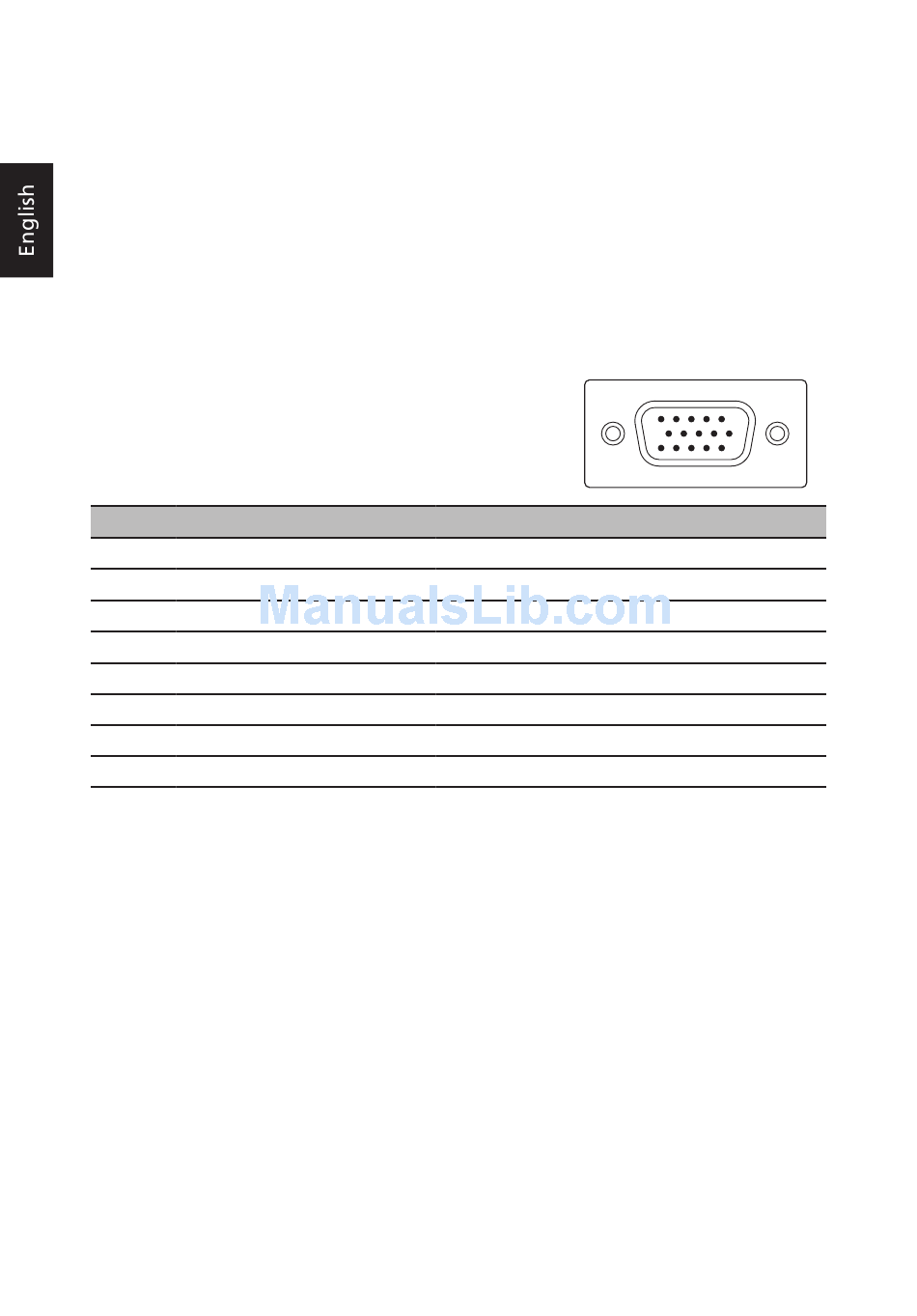

Connector pin assignment

15-pin color display signal cable

PIN No. Description
1
Red
2
Green
3
Blue
4
Monitor ground
5
DDC-return
6
R-ground
7
G-ground
8
B-ground
4
PIN No.
Description
9
+5 V
10
Logic ground
11
Monitor ground
12
DDC-serial data
13
H-sync
14
V-sync
15
DDC-serial clock
1
5
10
6
11
15
