Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the monitor
is able to plug-and-play. The DDC is a communication protocol through which the monitor
automatically informs the host system about its capabilities; for example, supported
resolutions and corresponding timing. The monitor supports the DDC2B standard.

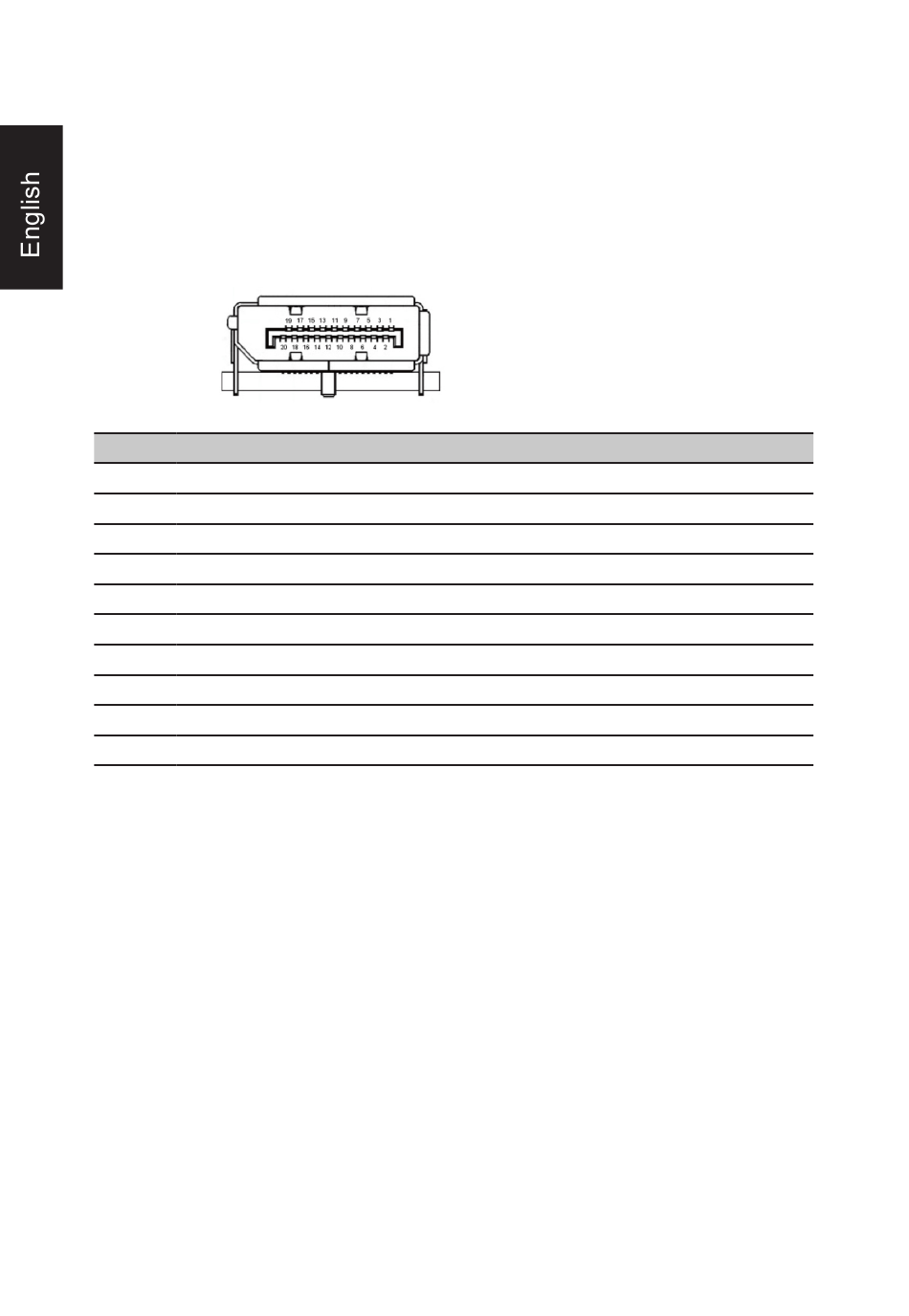

20-pin color display signal cable

PIN No. Description
1 ML_Lane 0+
3 ML_Lane 0-
5 GND
7 ML_Lane 2+
9 ML_Lane 2-
11 GND
13 KONFIG1
15 AUX CH+
17 AUX CH-
19 Return
PIN No. Description
2 GND
4 ML_Lane 1+
6 ML_Lane 1-
8 GND
10 ML_Lane 3+
12 ML_Lane 3-
14 CONFIG2
16 GND
18 Hot Plug
20 DP_PWR
