Appendix C
Filter Action Tab

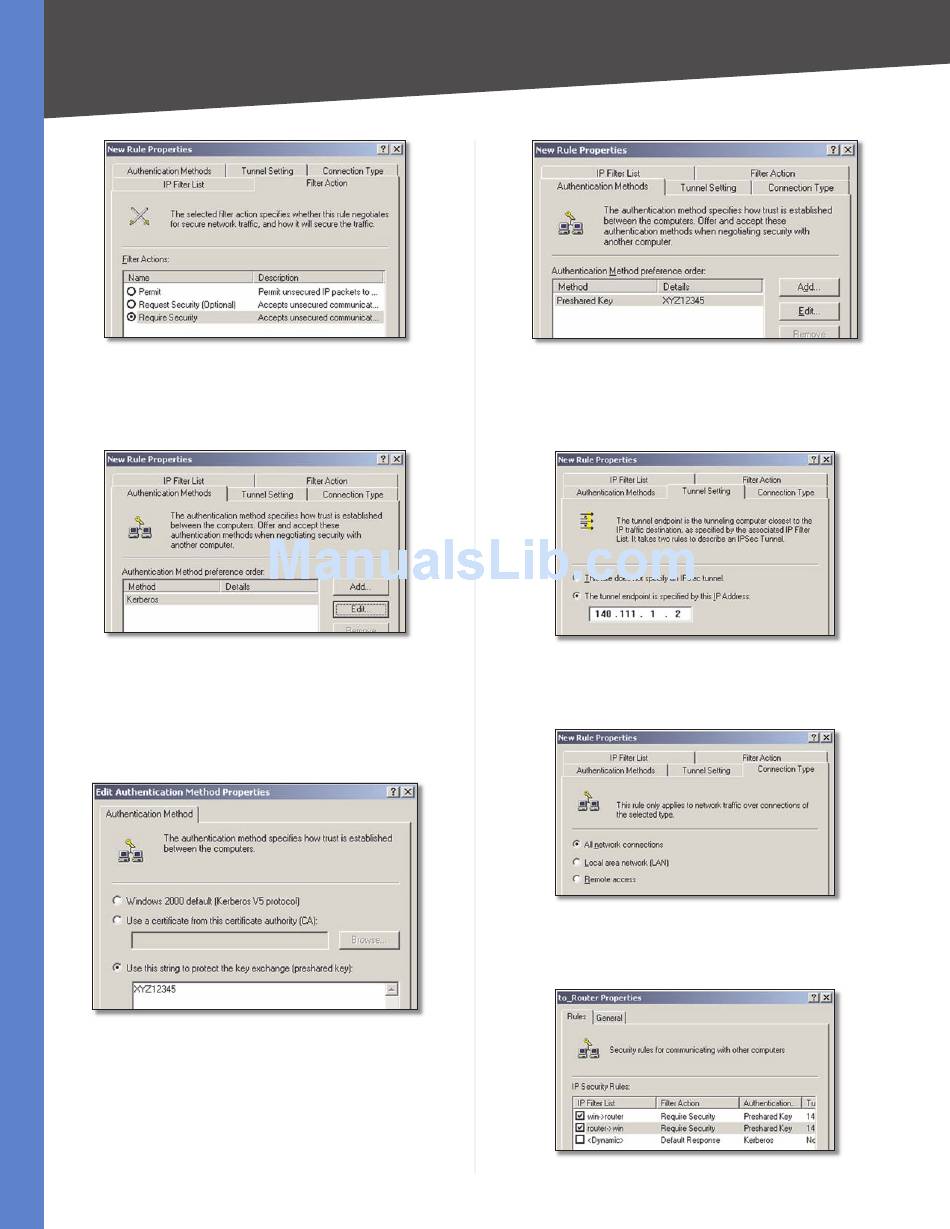

12. Click the Authentication Methods tab, and verify
that the authentication method Kerberos is selected.
Then, click Edit.
Authentication Methods Tab
13. Change the authentication method to
to protect the key exchange (preshared key), and
enter the preshared key string, such as XYZ12345.
(This is a sample key string. Yours should be a key that
is unique but easy to remember.) Then click OK.
Preshared Key
14. This new Preshared key will be displayed. Click the
Apply button to continue, if it appears on your screen;
otherwise, proceed to the next step.
4-Port Gigabit Security Router with VPN
Configuring IPSec with a Windows 2000 or XP Computer
15.
Use this string
16.
17.
New Preshared Key
Click the Tunnel Setting tab. Click the radio button The
tunnel endpoint is specified by this IP Address, and
enter the Windows 2000/XP computer's IP Address.
Tunnel Setting Tab
Connection Type tab, and select All network
Click the
connections. Then click OK or Close to finish.
Connection Type Tab
On the Rules tab, click the OK or Close button to
return to the screen showing the security policies.
Rules Tab
