Chapter 5

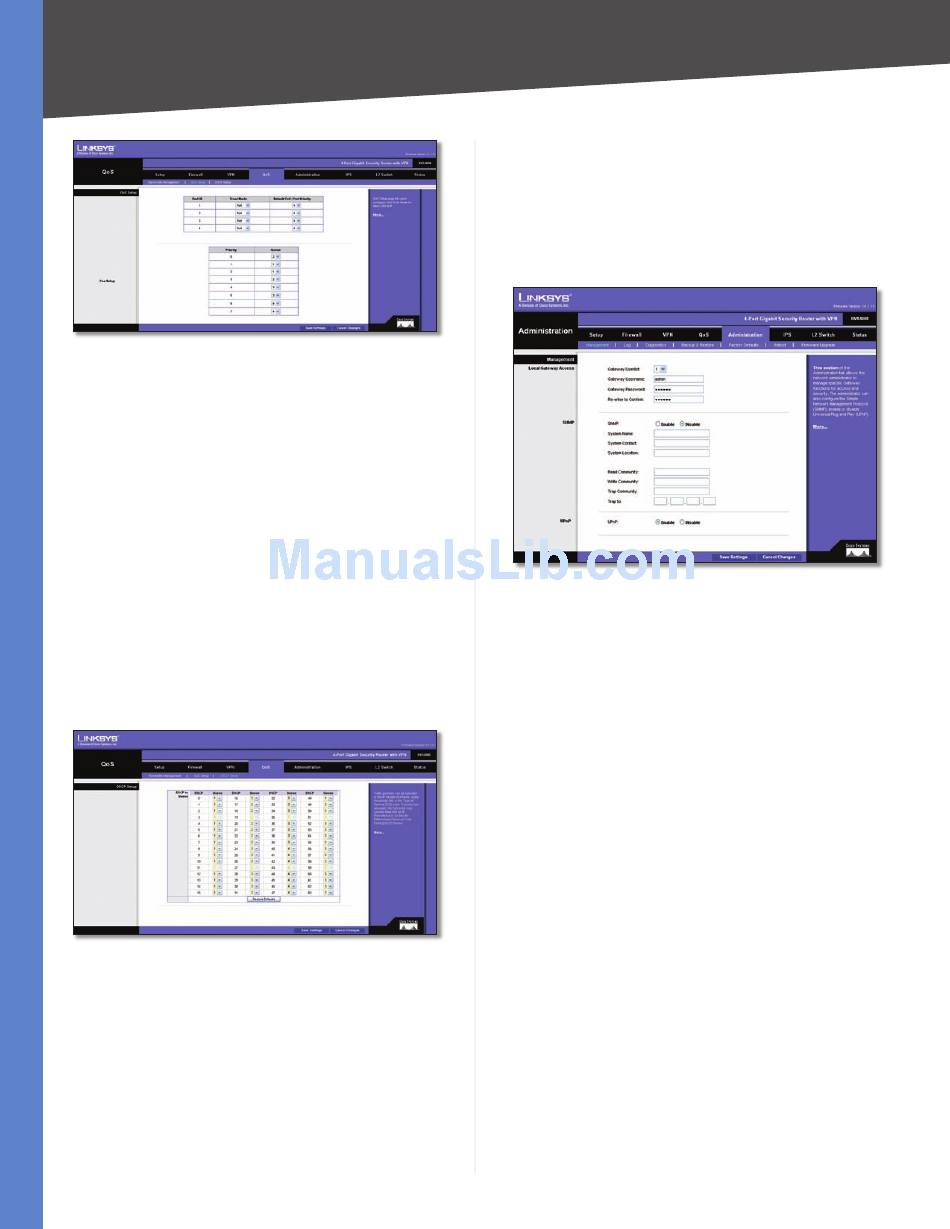

QoS > QoS Setup
Port ID
The number of the LAN port.
Trust Mode Select either Port, CoS, or DSCP. The default
is Port.
Default CoS/Port Priority
select the port priority from 1 to 4 from the drop-down
menu. If Trust Mode is set to CoS, select the default CoS
priority from 0 to 7 from the drop-down menu.
CoS Setup
Priority The CoS priority from 0 to 7.
Queue Select the traffic forwarding queue, 1 to 4, to
which the CoS priority is mapped.
Click Save Settings to save your settings. Click Cancel
Changes to cancel any changes you have entered.
QoS > DSCP Setup
QoS > DSCP Setup
DSCP The Differentiated Services Code Point value in the
incoming packet.
Queue Select the traffic forwarding queue, 1 to 4, to
which the DSCP priority is mapped.
Restore Defaults
Click this button to restore the default
DSCP values.
Click Save Settings to save your settings. Click Cancel
Changes to cancel any changes you have entered.
4-Port Gigabit Security Router with VPN
If Trust Mode is set to Port,
Setting Up and Configuring the Router

Administration

The Administration tab provides access to system
administration settings and tools. It includes the following
screens:
Administration > Management
Administration > Management
Local Gateway Access
Gateway Userlist Select the desired Gateway User List.
Gateway Username Enter the user name here.
Gateway Password Enter the password.
Re-enter to Confirm Retype the password in this field.
SNMP
SNMP Select Enable if you wish to use SNMP. To use SNMP,
you need SNMP software on your PC.
System Name Enter a suitable name. This name will be
used to identify this device, and will be displayed by your
SNMP software.
System Contact Enter contact information for the
system.
System Location Enter the location of the system.
Read Community Enter the SNMP community name for
SNMP "Get" commands.
Write Community
Enter the SNMP community name for
SNMP "Set" commands.
Trap Community Enter the SNMP community name for
SNMP "Trap" commands.
Trap To Enter the IP Address of the SNMP Manager to
which traps will be sent. If desired, this may be left blank.
