Bogen AMBSL1 Installation Instructions

AMBSL1, AMBSQ1

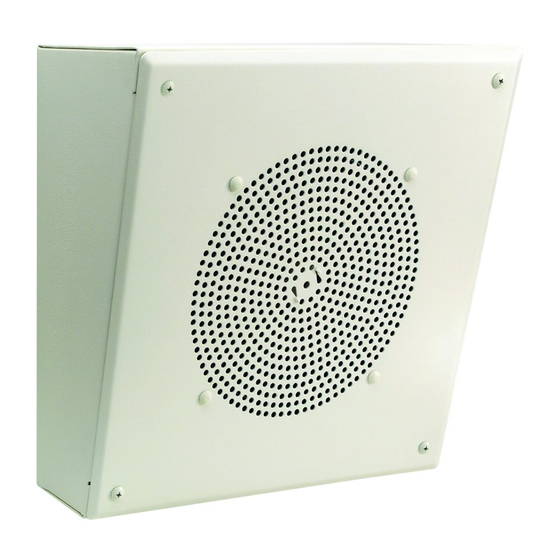

1W Self-Amplified Metal Box Speakers
For Surface Mounting to Walls and Ceilings
Installation Instructions
Determine where the speaker(s) will be mounted. Do not mount speakers near noise generating equipment (fans, motors)
1.
and do not use where a normal conversation can not be conducted. Ensure power is not connected to speaker wires prior
to installation. Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull
approximately 12" of wire through opening in mounting surface.
Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware,
2.
secure the enclosure to the mounting surface (Figure 1). Note that two toggle bolts (for sheet rock surfaces) and two wood
screws (for securing to solid wood/beams) have been included. Utilize the two washers (supplied) with either toggle bolts,
wood screws, or other user supplied hardware.
Toggle bolts
(for sheet rock)

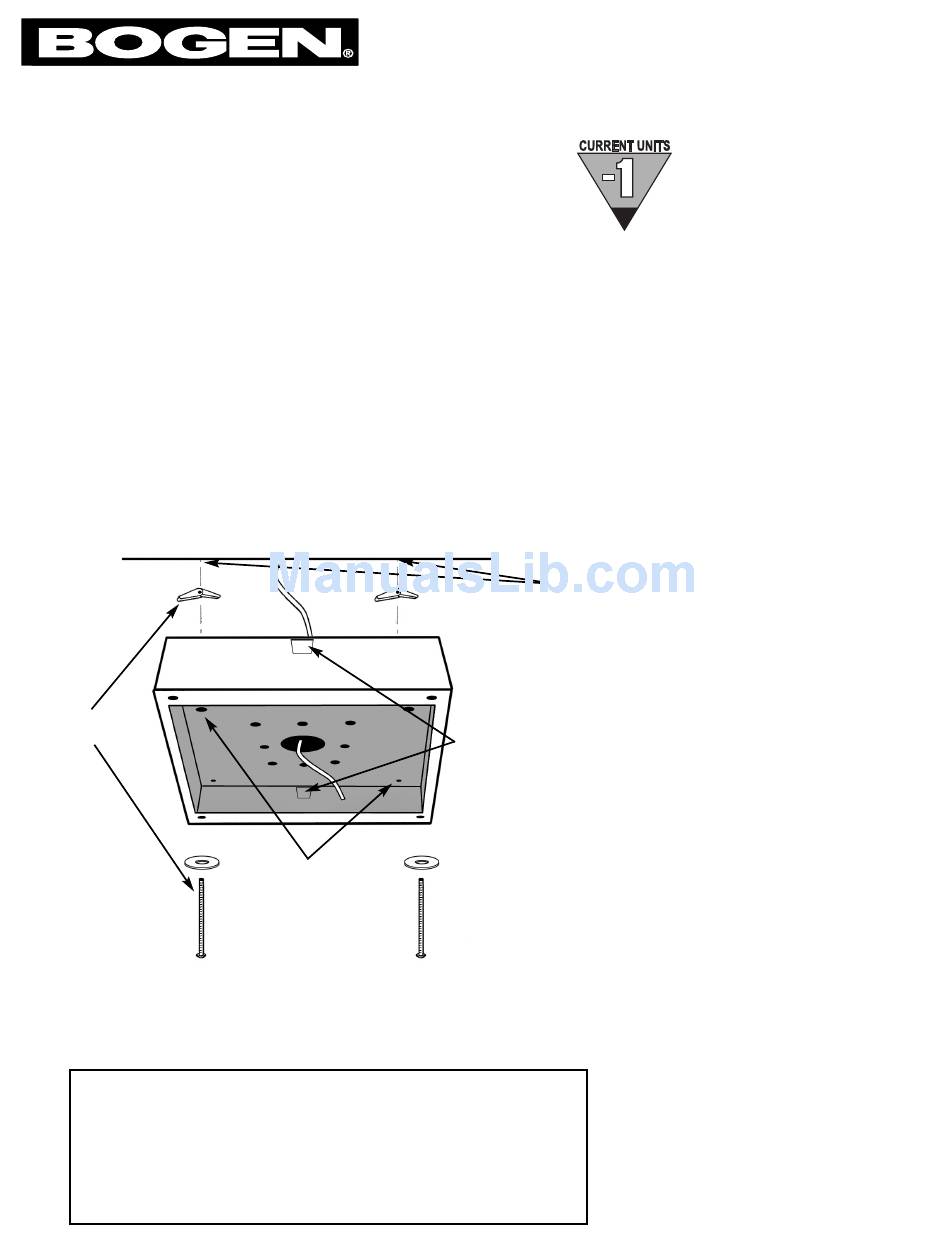

Figure 1 - Sheet rocked ceiling mount example
Package Contents:
• Back box enclosure
• Grille with speaker assembly
• Two crimp-type connectors
• Two toggle bolts
• Two pluggable screw terminals
Ceiling
Enclosure
mounting holes
• Two wood screws
• Two washers
• Four 1" screws for attaching
grille assembly
• Detachable Knob
Use two of the enclosure's mounting
holes as a template (diagonally
opposed), and mark screw hole
locations. If toggle bolts will be
used, drill two, 1/2" diameter holes
in the mounting surface, otherwise
drill a hole appropriate for hardware
being used.
®
Wiremold
Knockouts
