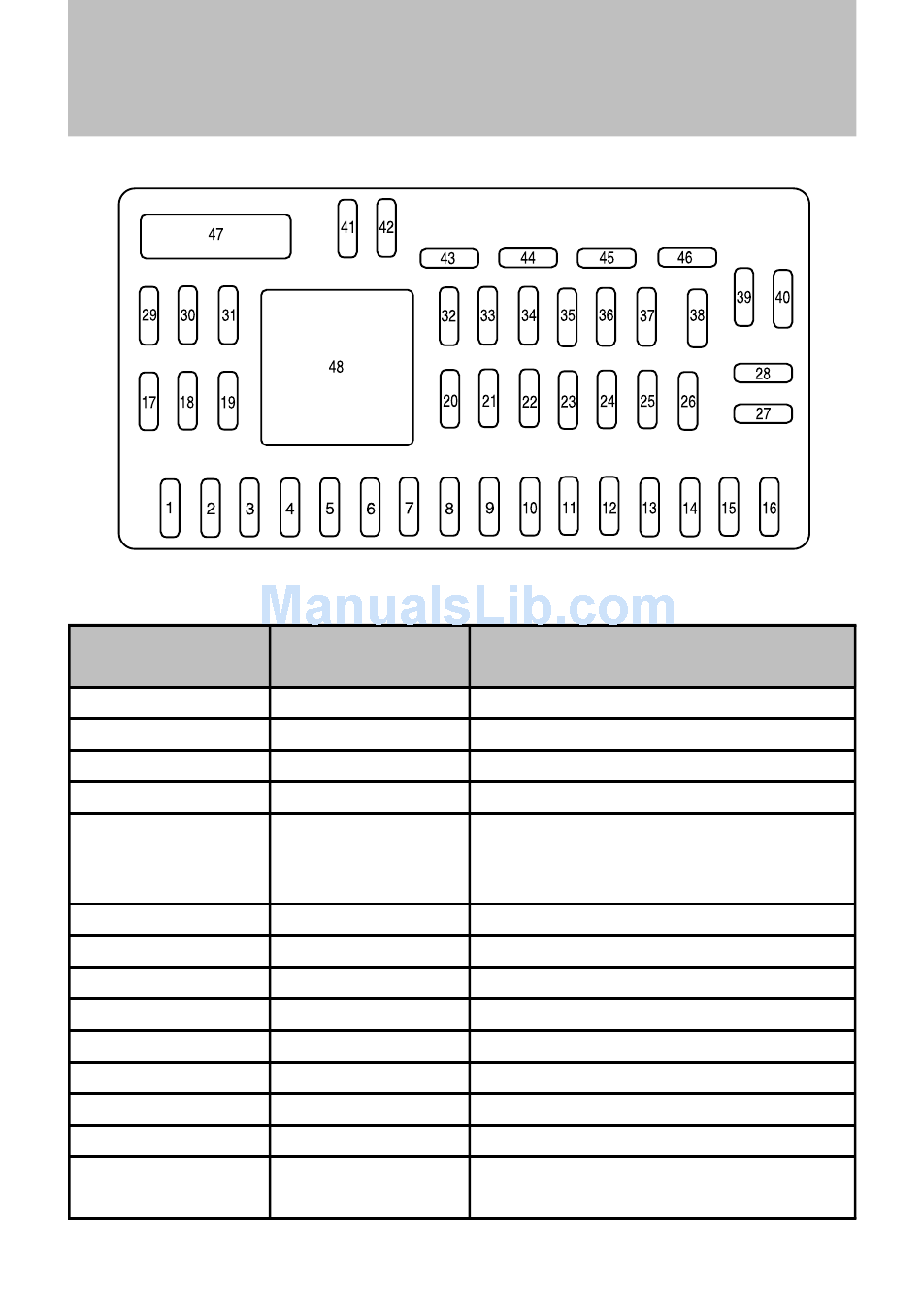

The fuses are coded as follows:
Fuse/Relay
Location
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Roadside Emergencies
Fuse Amp
Rating
30A
Not used (spare)
15A
Brake on/off switch
15A
Not used (spare)
30A
Moon roof
10A
Brake-shift interlock (BSI),
Passenger compartment fuse
panel
20A
Turn signals, Stop lamps
10A
Low beam headlamps (left)
10A
Low beam headlamps (right)
15A
Interior lights
15A
Backlighting
10A
Four wheel drive
7.5A
Power mirror switch
5A
Not used (spare)
10A
FCIM (radio buttons), Front
display module
Protective Circuits
223
