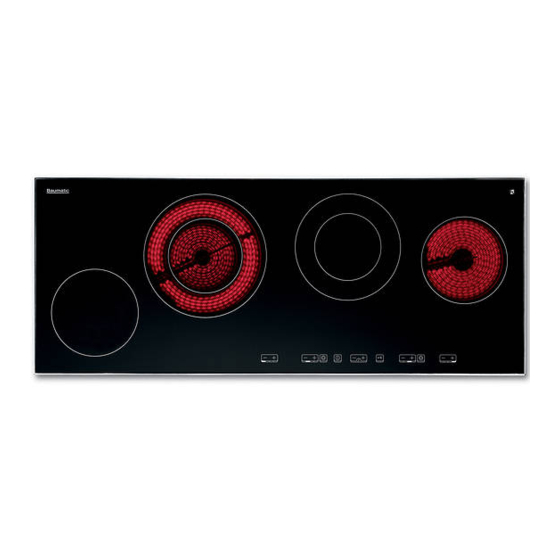

- Page 1 B27SS 90 cm touch control ceramic hob...
- Page 2 User Manual for your Baumatic B27SS 90 cm 4 hyperspeed zone touch control ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Positioning Unpacking the appliance Installing the appliance 24 – 26 Electrical connection Connecting the mains supply cable 27 – 28 Replacing the mains supply cable My appliance isn’t working correctly 29 – 30 Baumatic Ltd. Conditions of Guarantee Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowe to touch the appliance at a ny time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the...
- Page 7 Please see the specific s ection of this booklet that refers to stallation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a r esult of improper use or installation of this appliance.
-
Page 8: Specifications
o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Height: 350 mm Height: 335 mm... - Page 9 Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 6.3 kW Mains Supply Lead: 3 core x 6 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.
-
Page 10: Ceramic Hob Surface Layout
Ceramic hob surface layout 1.20 kW hyperspeed zone Ø 140 mm 0.75/2.20 kW double hyperspeed zone Ø 120/210 mm 0.70/1.70 kW double hyperspeed zone Ø 120/180 mm Control panel Control panel layout ON/OFF button Safety lock button Safety lock neon Plus button Minus button Cooking zone indicator... -
Page 11: Using The Ceramic Hob
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 12: Switching On A Zone And Setting A Power Level
Switching on a zone and setting a power level IMPORTANT: A zone must be selected within 10 seconds of switching the hob on. o Press the plus (4) button for the zone that you want to use. o Adjust the zone between power levels 1 and 9, using the plus (4) and minus (5) buttons. -
Page 13: Switching Off A Dual Circuit's Outer Section
o Adjust one of the dual circuit zones between power levels 1 and 9 using the plus (5) and minus (4) buttons. o The central section of the dual circuit zone will switch o If you wish to also activate the outer section of a dual circuit zone, you should press the relevant dual circuit ON/OFF button (8). -
Page 14: Switching Off A Zone Instantly
Switching off a zone instantly o Press the minus button (5) and the plus button (4) simultaneously. o The zone will switch off immediately. o An “H” will show in the cooking zone indicator (6), alternating with “0”. (See the section on the “residual heat indicator” on page 15). -
Page 15: Residual Heat Indicator
Residual heat indicator o After a zone is switched off, the corresponding cooking zone indicator (6) will show the letter “H”, alternating with “0”. This means that the temperature of the zone is over 60°C and is therefore high enough to cause injury. o If you switch off the appliance using the ON/OFF button (1) then only the “H”... -
Page 16: Safety Cut-Off
Safety cut-off o If one or more of the cooking zones are accidentally left on, a safety cut off will activate after a certain period of time. The length of time depends on the power level that a zone or zones have been set on. - Page 17 o Press the minus button (5) once and power levels 9 appears on the cooking zone indicator (6) and then release the minus button. o Press the plus button (4) once and a flashing decimal point symbol will appear on the cooking zone indicator (6), and then release the plus button.
-
Page 18: Increasing The Power Level During Automatic Pre-Heating
Increasing the power level during automatic pre-heating o If a zone is already within automatic pre-heating mode and you wish to increase the power level, you should press the plus button (4). o The pre-heating time will be adjusted. It will take into account the amount of time that has already elapsed. -
Page 19: The Hob Timer
The hob timer o Touch the timer plus (10) and minus (11) buttons simultaneously. A “t” symbol will appear on all of the cooking zone indicators. o After selecting the timer, a zone must be selected within 10 seconds by pressing one of the plus (4) or minus (5) buttons. You should use these buttons to select your desired power level. -
Page 20: Hob Guidelines
o If you wish to cancel the timer setting before it reaches the end of the countdown period, press the plus (10) and minus (11) buttons of the timer simultaneously. o IMPORTANT: If you cancel the timer setting, the selected zone will still remain on, therefore you will need to switch the zone off manually. -
Page 21: Cleaning And Maintenance
o Food or liquid that has high sugar content may damage the hob top if it comes into contact with the ceramic hob surface. Any spillages should be wiped up immediately, however this may not prevent the hob surface from becoming damaged. o IMPORTANT: The ceramic hob surface is tough;... -
Page 22: Cleaning Table
Cleaning table Type of deposit Remove Remove What should I Immediately? when the use to remove appliance the deposit? has cooled down? Sugar or Ceramic hob food/liquid scraper containing sugar Tin foil or plastic Ceramic hob scraper Fat splashes Ceramic hob cleaner Metallic Ceramic hob... -
Page 23: Installation
o You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. -
Page 24: Unpacking The Appliance
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 4 Spring clips 1 Sealing strip... - Page 25 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 26: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 27: Connecting The Mains Supply Cable
Connecting the mains supply cable o The mains terminal block is located on the underside of the hob and the terminals are accessible by removing the terminal block cover by removing the cover screw. o The cable connections must be in accordance with the diagram located on the bottom of the hob. -
Page 28: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions:- o Switch the appliance off at the control switch. -
Page 29: My Appliance Isn't Working Correctly
My appliance isn’t working correctly o The cooking zones are not functioning or will not switch * It has been more than 10 seconds since the appliance was switched on. You should switch the appliance on again, using the ON/OFF button. * The safety lock has been switched on (see the “Locking the hob top”... - Page 30 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 31: Baumatic Ltd. Conditions Of Guarantee
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Amperova 495 Baumatic Buildings, 46215, Librec 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 800 185 263 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900 Slovak Republic Sales Fax Baumatic Slovakia, s.r.o.
