6 Under Call Restrictions, check the appropriate box for each person, depending on whether his/her
telephone will be:
•
"Unrestricted"
•
"Outward Restricted"
•
"Toll Restricted"
7 Under Paging Groups, check the appropriate column(s) to indicate the Telephone Paging Group(s) to
which each person will be assigned.
NOTE: This is a MERLIN Plus feature and does not require any additional equipment. Your MERLIN
Plus system comes with the first ten positions (Icoms Nos. 10-19) assigned to Group 1 and the second
ten (Icom Nos. 20-29) assigned to Group 2.
8 Under Last Number Redial, Do Not Disturb, and Privacy, check the boxes as appropriate for each person
whose telephone will have a button reserved for each one of these features.
9 Under Outside Telephone Lines, enter the number and line type for each of your outside lines.
NOTE: For example, enter "CO" (for Central Office) for regular lines, "FX" for a Foreign Exchange
line, etc.
10 Under System Speed Dial Directory:
a Enter the telephone numbers, account numbers (if any), and names for numbers that you will be able
to dial using an abbreviated code.
b Check the "Restriction Override" box if people who are normally restricted from making outside calls
should be able to dial these numbers.

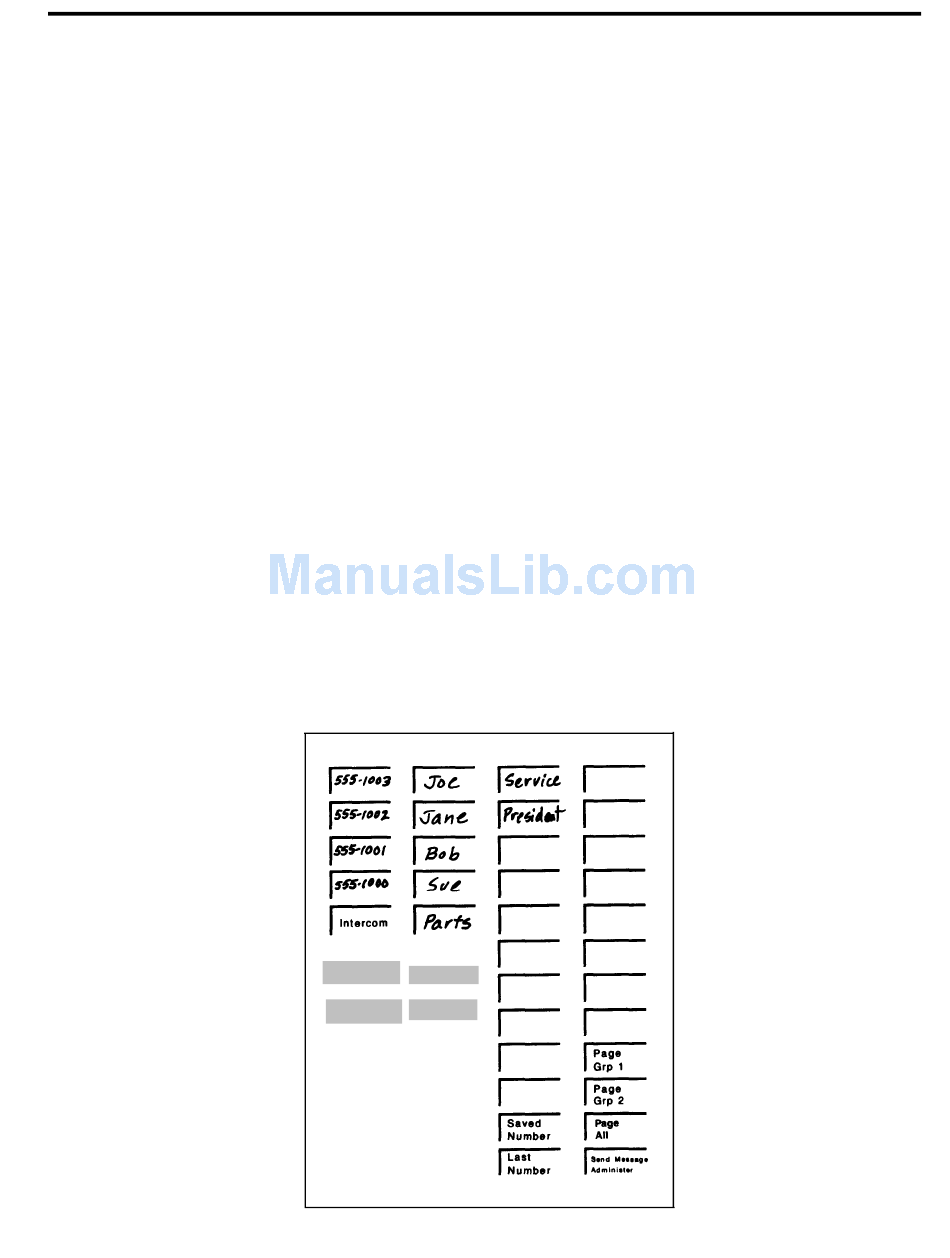

Fill out a telephone (voice terminal) label form for each of your MERLIN Plus system telephones using the
following examples. Blank forms are on pages 4 — 7. Use the appropriate form depending on the size of each
telephone. If you need more forms than supplied, make photocopies of the blank forms. Refer to your
completed System Configuration Form to see which lines and buttons will be assigned to each telephone.
2 System Planner
- able to make any kind of outside calls.
- cannot make any outside calls.
- able to make local but not long distance calls.
Conference Transfer
Hold
Drop
34 BUTTON
DELUXE
