Connecting Case Components

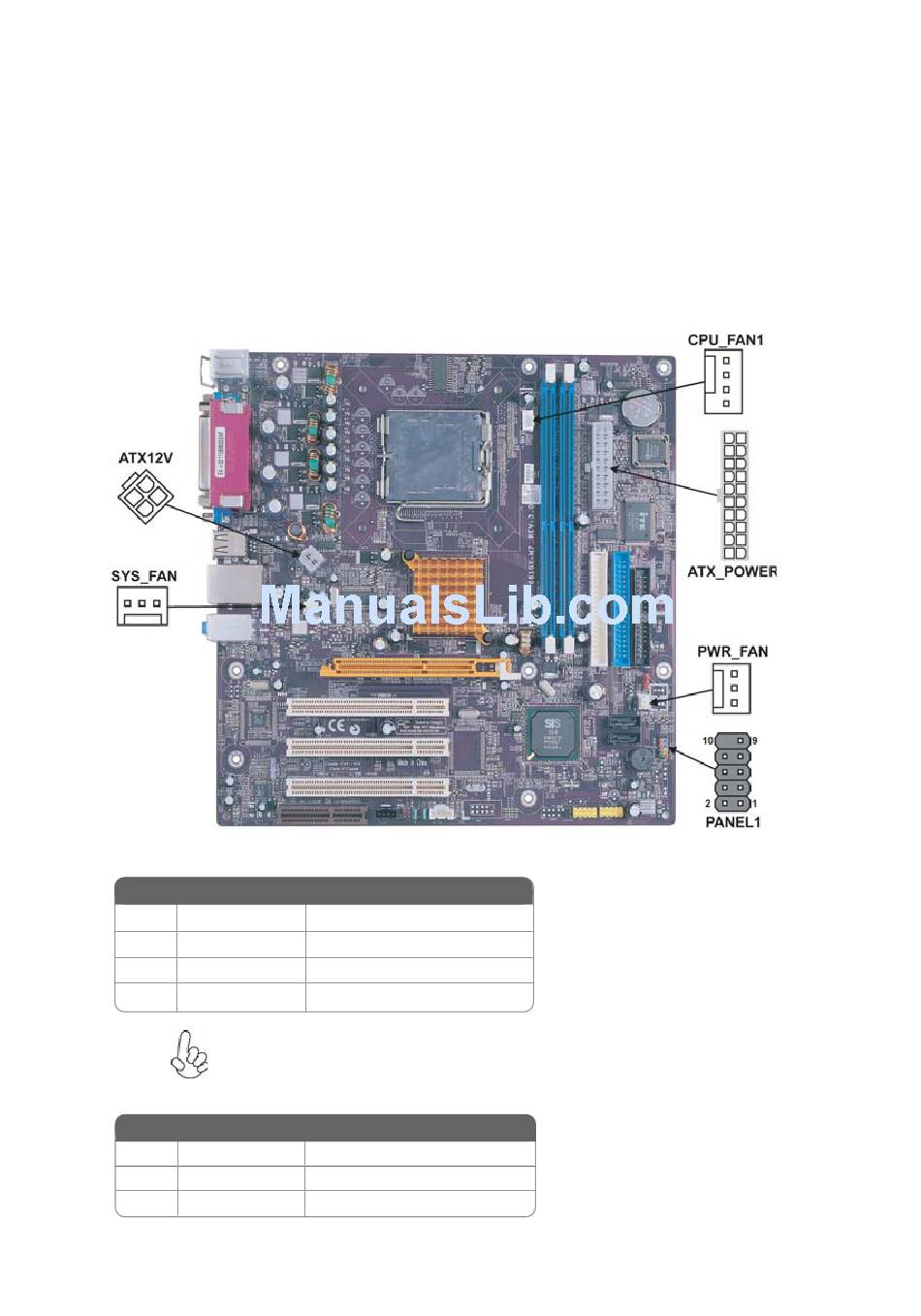

After you have installed the motherboard into a case, you can begin con-
necting the motherboard components. Refer to the following:
1
2
3
4
5
6
CPU_FAN: CPU Cooling Fan Connector
Pin
1
2
3
4
SYS_FAN/PWR_FAN: FAN Power Connectors
Pin
1
2
3
Connect the CPU cooling fan cable to CPU_FAN.
Connect the power cooling fan connector to PWR_FAN.
Connect the system cooling fan connector to SYS_FAN.
Connect the case switches and indicator LEDs to the PANEL1.
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.
Signal Name
System Ground
GND
Power +12V
+12V
Sense Sensor
FAN Control Signal
Control
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
Signal Name
System Ground
GND
Power +12V
+12V
Sense Sensor
