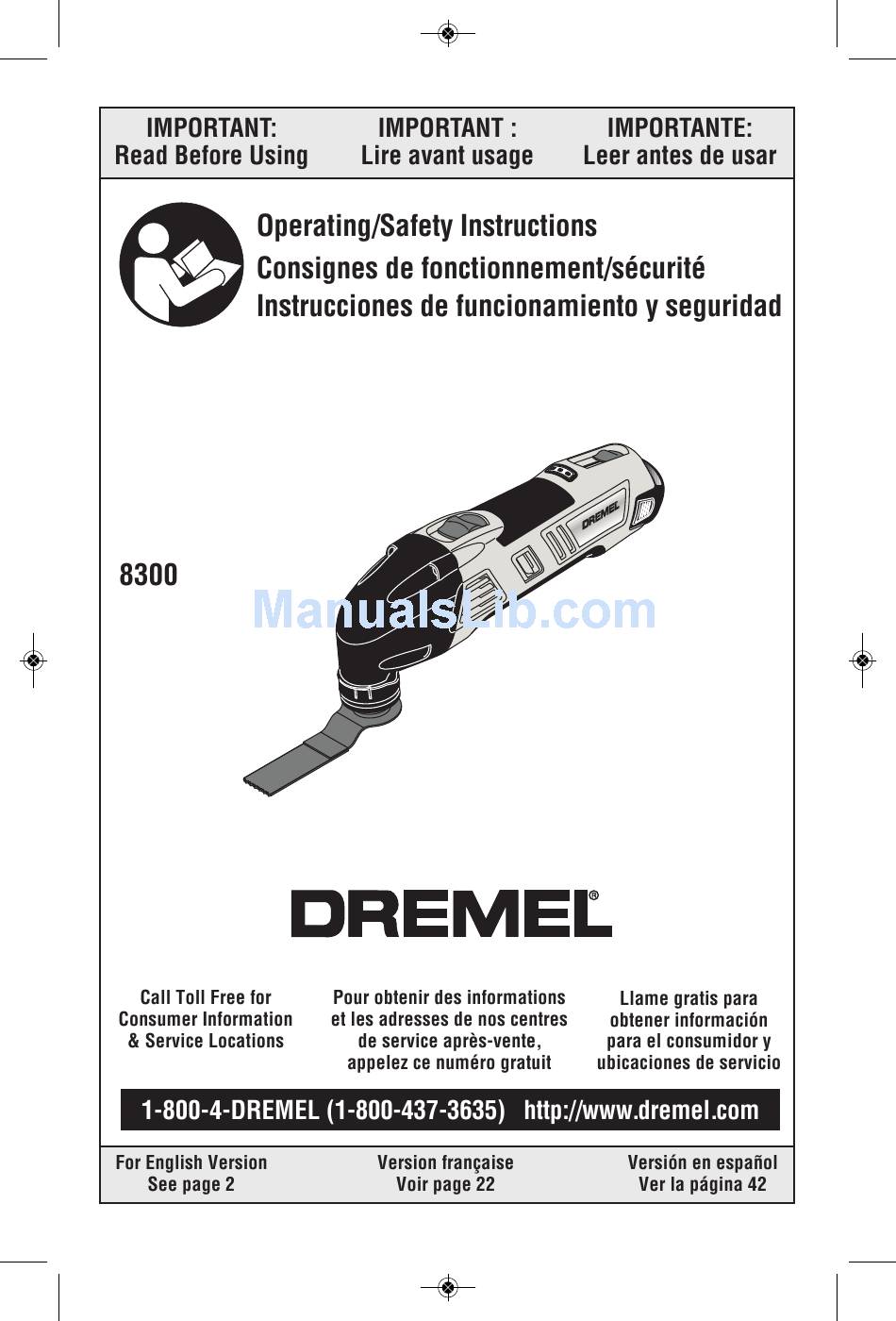

  • Page 1 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 1...

  • Page 2: General Power Tool Safety Warnings

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 2 General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool”...
  • Page 3 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 3 Disconnect the plug from the power source Battery tool use and care and/or the battery pack from the power tool Recharge only with the charger specified before making any adjustments, changing by the manufacturer.
  • Page 4 Do not Charge battery pack in temperatures above substitute any other charger. Use only Dremel +32 degrees F (0 degrees C) and below approved chargers with your product. See +113 degrees F (45 degrees C).

  • Page 5: Battery Care

    Use of an attachment not recom- materials when re-charging battery pack. mended or sold by Dremel will result in a The charger and battery pack heat during risk of fire, electric shock or injury to charging.
  • Page 6 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 6 Symbols IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
  • Page 7 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 7 Symbols (continued) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

  • Page 8: Functional Description And Specifications

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 8 Functional Description and Specifications Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Model 8300 Multi-Max Cordless Oscillating Tool Model number 8300 Charger...

  • Page 9: Installing And Removing Accessories

    Application tools can become very hot while working. Danger of burns! INSTALLING AND REMOVING ACCESSORIES Dremel cutting, scraper blades have a Quick- Fit slot which allows for faster accessory removal compared with other conventional oscillating tool systems. 1. Loosen the clamping screw using the hex...

  • Page 10: Intended Use

    Visit www.dremel.com to learn more about The ergonomic housing is designed for you what you can do with your Dremel Cordless to hold and control in a comfortable manner Multi-Max. during operation.

  • Page 11: Fuel Gauge

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 11 SLIDE "ON/OFF" SWITCH The speed of the cordless oscillating tool is controlled by setting this slide switch The tool is switched "ON" by the slide switch on the housing. located on the topside of the motor housing (Fig.

  • Page 12: Important Charging Notes

    Note: Use of chargers or battery packs not sold by Dremel will void the warranty. 3. Remember to unplug charger during storage period.

  • Page 13: Charging Battery Pack

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 13 Charging Battery Pack 876 1-HOUR CHARGER require more time to stop blinking depending Plug charger cord into your standard power on temperature. outlet, then insert battery pack into charger The purpose of the green light is to indicate (Fig.

  • Page 14: Maintenance

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 14 Maintenance Service recommend it be examined every six months. Only a genuine Dremel replacement motor NO USER SERVICEABLE specially designed for your tool should be PARTS INSIDE. Preventive used. maintenance performed by unauthorized...
  • Page 15 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 15...
  • Page 16 This tool must be used only with the flush cutting blade on a delicate surface, Dremel accessories . you should protect the surface with cardboard Below are some typical uses for your Dremel or masking tape. Cordless Multi-Max Tool. The flat saw blade is ideal for...
  • Page 17 Flexible scrapers are used for your dealer. For best results, use Dremel hard to reach areas and softer sanding accessories which are of superior material such as caulk.
  • Page 18 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 18 GRINDING Corners may be finished using the tip or edge The diamond paper accessory of the selected accessory, which should allows for the Cordless Multi-Max to occasionally be rotated during use to distribute be used for grinding away cement, the wear on the accessory and backing pad plaster or thin set.
  • Page 19 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 19 CORRECT: Sand with a smooth back and forth motion, allowing the CORRECT: Always cut with a weight of the tool to do the work. smooth back and forth motion. Never force the blade. Apply light pressure to guide the tool.
  • Page 20 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 20 Multi-Max Accessories Accessory Material Application MM11 Depends on sanding Sanding surfaces close to edges, in Base plate for sheet corners or hard to reach areas. sanding Depending on the sanding sheet for, e.g., sanding wood, paint, varnish, thinset and cement.

  • Page 21: Limited Warranty

    DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 21 Dremel ® Limited Warranty...
  • Page 22 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 22...
  • Page 23 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 23...
  • Page 24 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 24...
  • Page 25 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 25...
  • Page 26 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 26...
  • Page 27 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 27...
  • Page 28 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 28...
  • Page 29 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 29...
  • Page 30 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:20 PM Page 30...
  • Page 31 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 31...
  • Page 32 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 32...
  • Page 33 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 33...
  • Page 34 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 34...
  • Page 35 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 35...
  • Page 36 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 36...
  • Page 37 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 37...
  • Page 38 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 38...
  • Page 39 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 39...
  • Page 40 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 40...
  • Page 41 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 41 ®...
  • Page 42 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 42...
  • Page 43 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 43...
  • Page 44 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 44...
  • Page 45 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 45...
  • Page 46 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 46...
  • Page 47 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 47...
  • Page 48 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 48...
  • Page 49 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 49...
  • Page 50 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 50...
  • Page 51 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 51...
  • Page 52 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 52...
  • Page 53 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 53...
  • Page 54 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 54...
  • Page 55 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 55...
  • Page 56 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 56...
  • Page 57 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 57...
  • Page 58 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 58...
  • Page 59 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 59...
  • Page 60 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 60...
  • Page 61 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 61 ®...
  • Page 62 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 62 Notes:...
  • Page 63 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 63 Remarques :...
  • Page 64 DM 2610011834 07-10:DM 2610011834 07-10.qxp 7/20/10 1:21 PM Page 64 Notas:...
