Red Hat Cluster for Enterprise Linux 5 Configuration page 46

2. Starting the Cluster Configuration Tool

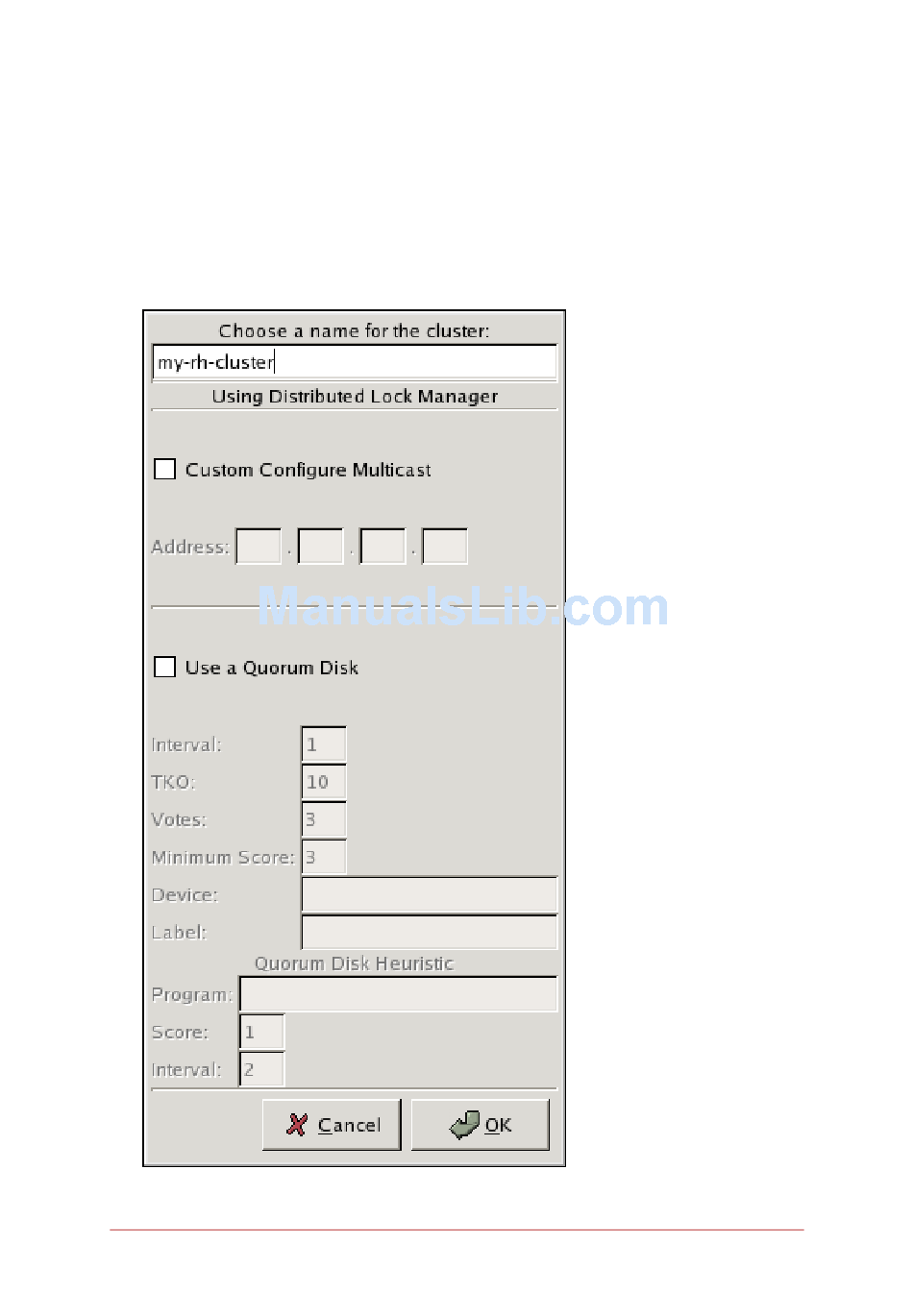

3. Clicking Create New Configuration causes the New Configuration dialog box to be dis-
played (refer to Figure 4.2, "Creating A New Configuration"). The New Configuration dia-
log box provides a text box for cluster name and the following checkboxes: Custom Con-
figure Multicast and Use a Quorum disk. In most circumstances you only need to config-
ure the cluster name. Red Hat Cluster software chooses a multicast address for cluster
management communication among cluster nodes. If you need to use a specific multicast
address, click the Custom Configure Multicast checkbox and enter a multicast address in
the Address text boxes. If you need to use a quorum disk, click the Use a Quorum disk
checkbox and enter quorum disk parameters. For information about quorum disk paramet-
ers, refer to the qdisk(8) man page.
38
