- Page 1 BDW01 60 cm Semi- integrated electronic dishwasher...
- Page 2 BAUMATIC BDW01W/SS dishwasher user manual BDW01 DISHWASHER 60 CM FULL HEIGHT DISHWASHER IMPORTANT! PLEASE READ THIS MANUAL AND KEEP IT FOR FUTURE REFERENCE! THIS MANUAL CONTAINS SECTIONS OF SAFETY INSTRUCTIONS, OPERATING INSTRUCTIONS & TROUBLESHOOTING TIPS, ETC. DD 02/11/07...
-
Page 3: Table Of Contents
BAUMATIC BDW01 dishwasher user manual CONTENTS • SAFETY FIRST! SAFETY INFORMATION .……………..…………3 *Please read this before using your dishwasher! BEFORE CALLING • KNOWING YOUR FOR SERVICE DISHWASHER CONTROL PANEL ………………………..……..…4 REVIEWING THE SECTION ON DISHWASHER FEATURES …………..………….4 TROUBLESHOOTING TIPS WILL... -
Page 4: Safety Information
BEFORE DISCARDING IT. DURING THE GUARANTEE PERIOD ONLY BAUMATIC • SERVICE ENGINEERS OR AN AUTHORISED AGENT OF BAUMATIC SHOULD CARRY OUT REPAIRS ON THIS UNIT. DO NOT USE IF THE SUPPLY CORD IS DAMAGED. • FOR INSTALLATION PROCEDURE PLEASE CONSULT •... -
Page 5: Control Panel
BAUMATIC BDW01 dishwasher user manual CONTROL PANEL POWER SWITCH: Turns the Power supply ON & OFF. HALF WASHING LIGHT: To come on when select the Half wash. SALT WARNING LIGHT: Add more salt as this indicator on the panel lights up. -
Page 6: Loading Salt Into Salt Container
BAUMATIC BDW01 dishwasher user manual on chemicals used by the dishwasher Note • Your dishwasher is equipped with an adjustable rinse aid and salt container. Using individual detergents, rinse aid and salt will give the best possible results as this will give the correct dosage of each chemical to suit your needs. -
Page 7: Detergent
BAUMATIC BDW01 dishwasher user manual SETTING THE WATER SOFTENER LEVEL YOU CAN ADJUST THE AMOUNT OF SALT USED BY THE DISHWASHER TO SOFTEN WATER TO GET THE BEST WASHING RESULTS, BASED ON THE HARDNESS OF WATER IN YOUR AREA. THERE IS A RING ON THE NECK OF THE CONTAINER. -
Page 8: Rinse Aid
BAUMATIC BDW01 dishwasher user manual THE RINSE AID IS RELEASED DURING THE • RINSE AID FINAL RINSE TO PREVENT WATER FROM FORMING DROPLETS ON YOUR DISHES THAT CAN CAUSE SPOTS AND STREAKS. IT ALSO IMPROVES DRYING BY ALLOWING WATER TO FALL OFF THE DISHES. -
Page 9: Loading Your Dishwasher
BAUMATIC BDW01 dishwasher user manual LOADING NOTE: YOUR FOR BEST PERFORMANCE, FOLLOW THESE LOADING GUIDELINES. FEATURES AND DISHWASHER APPEARANCE OF RACKS & CUTLERY BASKETS MAY VARY FROM YOUR MODEL. BEFORE LOADING! REMOVE ALL SCRAPS OF FOOD. • EMPTY DRINKS & LIQUIDS FROM CUPS. -
Page 10: Loading Guide (Upper Rack)
BAUMATIC BDW01 dishwasher user manual HOW TO USE THE UPPER RACK THE UPPER RACK IS FOR MORE DELICATE POSITION THE DISHES AND LIGHTER DISHWARE SUCH COOKWARE SO THAT THEY DO NOT GLASSES, COFFEE & TEA CUPS, SAUCERS, GET MOVED BY THE SPRAY OF... -
Page 11: How To Load The Lower Rack
BAUMATIC BDW01 dishwasher user manual ***NOTE ***: THE UPPER RACK HAS SIDE FLAPS (PICTURED AT LEFT ABOVE BASKET). THERE ARE 4 (2 ON EACH SIDE). THESE CAN BE ADJUSTED INTO 2 POSITIONS = POSITION 1 (HIGH) AND POSITION 2 (LOW). -
Page 12: Cutlery Basket
BAUMATIC BDW01 dishwasher user manual CUTLERY BASKET CUTLERY SHOULD BE PLACED IN THE CUTLERY BASKET WITH HANDLES ALWAYS POINTING DOWNWARD (AT THE BOTTOM). VERY LONG UTENSILS (LADLES, etc.) SHOULD BE PLACED HORIZONTALLY AT THE FRONT OF THE UPPER RACK. Forks... -
Page 13: Starting A Wash Cycle
BAUMATIC BDW01 dishwasher user manual STARTING A WASH CYCLE STARTING A WASH CYCLE MAKE SURE THAT THE PLUG OF THE APPLIANCE IS INSERTED INTO THE WALL SOCKET. MAKE SURE THAT THE WATER SUPPLY IS TURNED ON TO FULL PRESSURE. LOAD THE DISHWASHER (SEE THE SECTION ENTITLED ‘LOADING YOUR DISHWASHER’). -
Page 14: Wash Cycle Table
15 grams OVERFLOW PROTECTION YOUR BAUMATIC DISHWASHER HAS AN OVERFILL PROTECTION DEVICE WHICH AUTOMATICALLY SHUTS OFF THE INLET VALVE AND STARTS THE DRAIN PUMP IF THE WATER OVERFLOWS. IF THIS OCCURS THEN TURN OFF THE MAINS WATER SUPPLY BEFORE CALLING THE SERVICE DEPARTMENT. IF THERE IS WATER IN THE BASE PAN BECAUSE OF AN OVERFILL OR SMALL LEAK, THE WATER SHOULD BE REMOVED BEFORE RESTARTING THE DISHWASHER. -
Page 15: Unloading At The End Of A Cycle
BAUMATIC BDW01 dishwasher user manual WHAT YOU WILL SEE ON THE DISPLAY: SHOWS THE SELECTED WASHING PROGRAM (From Left): INTENSIVE, NORMAL, ECONOMY, RINSE, GLASS, RAPID, PRE-RINSE. INFORMATION DISPLAY: INFORMATION DISPLAYED HERE: WASHING PROGRAM, ERROR, DOOR-OPEN, ETC. WASHING PHASE: (From left) Pre-rinse;... -
Page 16: Filtering System
BAUMATIC BDW01 dishwasher user manual FILTERING SYSTEM FOR YOUR CONVENIENCE, WE HAVE PLACED THE FILTERING SYSTEM WITHIN EASY REACH INSIDE THE TUB. THE FILTER REMOVES BITS OF FOOD TRAPPED IN THE FILTER FROM THE WASH WATER SO IT CAN BE RECIRCULATED DURING THE CYCLE. -
Page 17: Cleaning The Filters
BAUMATIC BDW01 dishwasher user manual CLEANING THE FILTERS THE FILTER ASSEMBLY MUST BE KEPT CLEAN FOR BEST PERFORMANCE. You should remove the • larger bits of food trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. -
Page 18: How To Keep Your Dishwasher In Shape
BAUMATIC BDW01 dishwasher user manual HOW TO KEEP YOUR DISHWASHER IN SHAPE , leave the door slightly ajar so that moisture and odours are not trapped FTER VERY inside. before cleaning or performing maintenance. Never run the risk of electric EMOVE THE shocks. -
Page 19: Before You Call For Service
Drain Pump overflow. When it does, it shuts off Overflow the circulation pump and turns on • doesn’t stop! the drain pump. Call a Baumatic Ltd approved technician. Sound from soft food shredding • Some audible sounds • action and detergent cup opening. - Page 20 BAUMATIC BDW01 dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Use only special dishwasher Suds in the Tub! • Improper detergent • detergent to avoid suds. Always wipe up rinse agent spills • Spilled rinse agent • immediately. Stained tub...
- Page 21 BAUMATIC BDW01 dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Use less detergent if you have soft • Combination of soft Cloudiness on • water and select a shorter cycle to water and too much clean the glassware. glass!
-
Page 22: Dishwasher Leaks
BAUMATIC BDW01 dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Black or grey Aluminium utensils • Use a mild abrasive cleaner to • have rubbed against marks on dishes! eliminate those marks by hand. dishes A small amount of clean water Water standing in •... -
Page 23: Error Codes
BAUMATIC BDW01 dishwasher user manual ERROR CODES - WHAT THEY MEAN * YOUR DISHWASHER MAY EXPERIENCE A FAULT. SHOULD THIS HAPPEN, A CODE CONSISTING OF ‘E’ & A NUMBER FROM 1-7 CAN BE DISPLAYED. THIS TABLE T NDERSTAND WHAT IS... -
Page 24: Characteristics

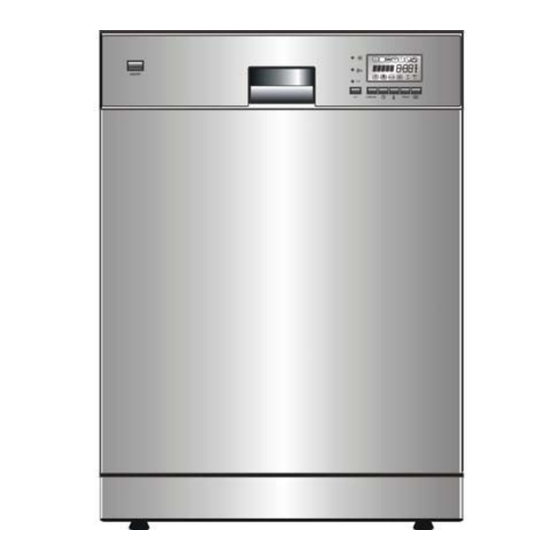

BAUMATIC BDW01W/SS dishwasher user manual DISHWASHER CHARACTERISTICS The BAUMATIC BDW01W/SS dishwasher model is based firmly on convenience. Apart from having the same general workings as other household dishwashers, it has several extra features. Rinse aid Warning Overflow protection – Indicator -... -
Page 25: How To Install
BAUMATIC BDW01 dishwasher user manual INSTALLATION INSTRUCTIONS NOTE: APPLIANCE SHOULD ONLY BE FITTED BY A TRAINED TECHNICIAN INSTALLING YOUR DISHWASHER a) PREPARATION Before you install your appliance, make sure that the place you have chosen to fit it is: • Near the existing power socket. - Page 26 BAUMATIC BDW01 dishwasher user manual b) PLACING AND FITTING YOUR DISHWASHER’S OPTIONAL FURNITURE DOOR The furniture door (an optional accessory fitted to match your kitchen décor available from your kitchen unit dealer) can be attached to the front of the dishwasher according to the following diagram.
- Page 27 BAUMATIC BDW01 dishwasher user manual...
- Page 28 BAUMATIC BDW01 dishwasher user manual TENSION ADJUSTMENT OF THE DOOR SPRING Your dishwasher’s outer door is attached to springs. These are set at the factory to ensure they’re at the proper tension so that the door can open and close smoothly and conveniently.
- Page 29 d) Connecting to he mains water supply IMPORTANT: Do not connect the appliance to your mains water supply using an old or an existing water inlet hose. The inlet hose supplied with the dishwasher is the ONLY one that should be used. DO NOT CONNECT THE WATER INLET HOSE TO A HOT WATER TAP.
-
Page 30: Electrical Connection
BAUMATIC BDW01 dishwasher user manual f) NOW YOU ARE READY TO CONNECT THE POWER CORD. WARNING! ELECTRICITY CAN BE DANGEROUS. PLEASE READ THE FOLLOWING CAREFULLY : ELECTRICAL CONNECTION Electrical Requirements The dishwasher is designed for operation on an adequately wired individual 220-240V AC, 50-60Hz system. - Page 31 BAUMATIC BDW01 dishwasher user manual g) NOW, PUT THE DISHWASHER ON THE SLIDE RAILS (These are supplied so your appliance can be pushed into place easily and to protect your floor surface from pressure points). See figure at bottom of page.
- Page 32 REAR FEET. THIS CAN BE ACHIEVED USING A LEVER AND FULCRUM. TAKE GREAT CARE WHEN ATTEMPTING TO MOVE OR TILT YOUR DISHWASHER IN ANY WAY. NOTE : BAUMATIC WILL NOT BE LIABLE FOR ANY INJURY OR DAMAGE INCURRED WHILST YOU ATTEMPT TO MOVE YOUR DISHWASHER. k) THE DISHWASHER MUST NOW BE SECURED IN PLACE .
-
Page 33: Final Checklist Before Starting
BAUMATIC BDW01 dishwasher user manual FINAL CHECKLIST BEFORE OPERATING NOTE: BEFORE YOU START USING YOUR DISHWASHER, PLEASE MAKE SURE YOU HAVE CHECKED WHETHER THE DISHWASHER IS LEVEL AND • FIXED. WHETHER THE INLET VALVE IS OPENED. • WHETHER THERE IS LEAKAGE AT THE •... -
Page 34: Minimum And Maximum Plate Sizes
Minimum and maximum plate sizes Maximum height of Maximum height of dishes (upper basket) dishes (lower basket) With upper 19 cm 30 cm basket raised With upper 24 cm 25 cm basket lowered IMPORTANT: Care should be taken to make sure that the spray arms can move freely when items have been loaded into the baskets. - Page 35 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, +420 800 185 263 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovak Republic Baumatic Slovakia, s.r.o. Sales Telephone Skultetyho 1...
-
Page 36: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. - Page 40 BAUMATIC BDW01 dishwasher user manual...
