Troubleshooting - Hayward Aqua Rite® Operation And Installation Manual

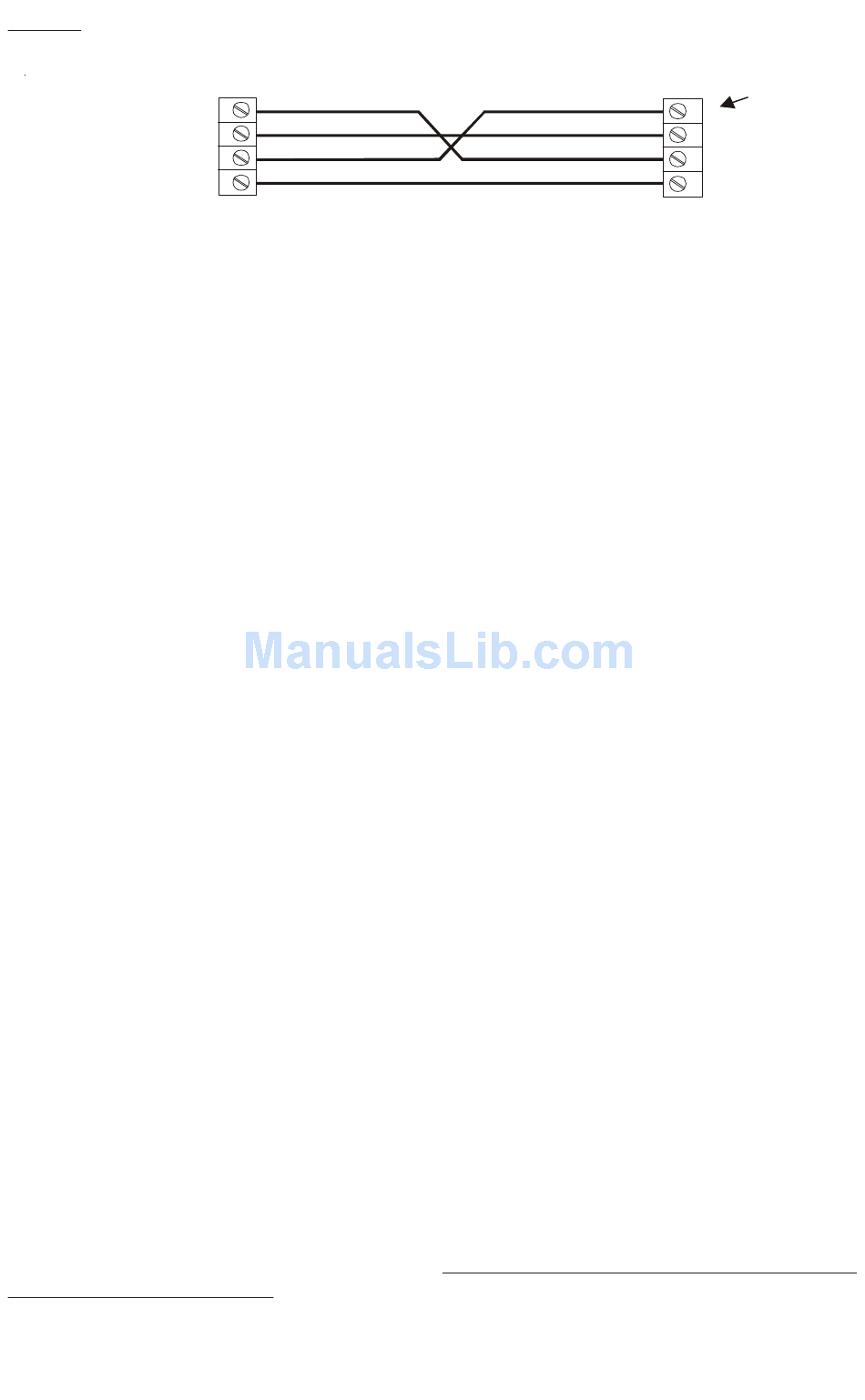

Polaris - Attach wires to proper screw terminals as shown below. Note that screw
terminal "1" is marked on the Polaris PCB.
GRN
YEL
Aqua Rite
BLK
RED
Visit www.goldlinecontrols.com for helpful information on operation, maintenance and
troubleshooting your Aqua Rite
Diagnostic Displays
Sequential pushes of the small "diagnostic" button next to the LCD display will cause
the Aqua Rite to display the following information:
1. Pool temperature (xx degrees Fahrenheit or Celsius)
2. Cell voltage (xx.x volts)
3. Cell current (x.xx amps)
4. Desired Output % ("0P" -- "100P" depending on knob position or input from remote
pool automation controller)
5. Instant salinity ( -xxxx ppm or -x.xx grams/Liter)
6. Product name sent to the pool automation control display ("AL-0" which signifies
"Aqua Rite")
7. Software revision level (r1.xx)
8. Chlorinator cell type (t-3, t-5, t-9, t-15)
On the 9th push of the button the display will revert back to the default salt display.
Also, if the button is not pushed for 30 seconds, the display will revert back to the
standard salt display.
Common Problems and Solutions
1. "Power" LED not on
Check to make sure either 120VAC or 240VAC input power is connected to the proper
screw terminals at the Aqua Rite control. Verify input voltage with a voltmeter. If there
is input power, the fuse may have blown. The Aqua Rite is protected by a 20 amp mini
ATO fuse located on the circuit board above the cell connector.
2. "Generating" LED flashing
The temperature of the pool water is too high or low to operate. You can override this by
switching the main switch to SUPER CHLORINATE. The Aqua Rite will run at maximum
output for the remainder of the current pump cycle or 24 hours, whichever comes first.
3. "No Flow" LED illuminated
The Aqua Rite has sensed a no flow condition and has stopped generating chlorine.
Check that the flow switch is plugged into the connector on the bottom of the control
unit and that the wire is not cut or damaged. Make sure you have at least 12" of straight
pipe before the flow switch. If there is adequate flow and the LED is still on, check that
the arrows on the flow switch (on top of hex) are pointing in the direction of flow.
4
3
2
1
