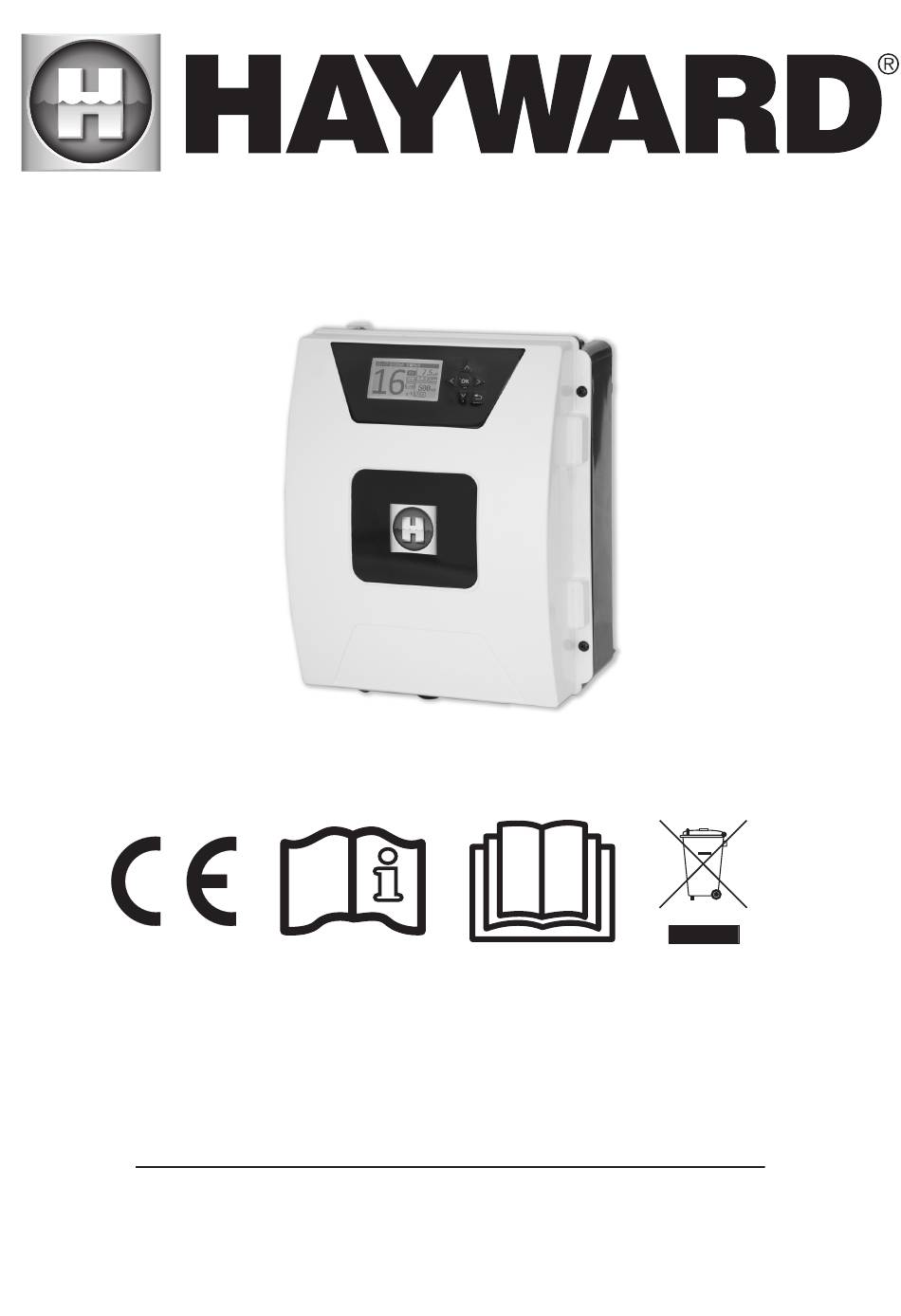

- Page 1 AQUARITE FLO ADVANCED PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE HAYWARD POOL EUROPE - 1070 Allée des Chênes - CS 20054 Saint Vulbas - 01154 Lagnieu Cedex - France...
- Page 2 Children must not play with the device. User maintenance and cleaning must not be carried out by unsupervised children. • WARNING – Use only original Hayward parts. • WARNING – If the power supply cable is damaged, it must be replaced by the manufacturer, the after-sales service or similarly qualified persons to avoid danger.
-
Page 3: Unit Description
WiFi module (optional) Acid dosing pump (optional) * Filtration control by internal timer Acid injector (optional) Hydrochloric acid container (not supplied) Filtration mode: See section on Filtration USE ONLY GENUINE REPLACEMENT PARTS Page 3 of 12 AquaRite Flo Advanced Rev. B... -
Page 4: Unit Assembly
4. Connect the cell and the gas detector to the electronic box the pool so that the cyanuric acid (chlorine stabiliser) does not distort measurements made by the rX (redox) probe. USE ONLY GENUINE REPLACEMENT PARTS Page 4 of 12 AquaRite Flo Advanced Rev. B... -
Page 5: Main Screen
DOWN key PLUS key MINUS key OK key RETURN / ESCAPE Upwards navigation Downwards navigation Modify value / selection Modify value / selection Select / confirm USE ONLY GENUINE REPLACEMENT PARTS Page 5 of 12 AquaRite Flo Advanced Rev. B... - Page 6 – only recommended for matches with your reference value correction of small deviations in the (photometer or other measuring readings. device). USE ONLY GENUINE REPLACEMENT PARTS Page 6 of 12 AquaRite Flo Advanced Rev. B...
- Page 7 1 objective measurement. measured value of the probe and Black the actual temperature. Set to the Yellow actual temperature of the probe and press OK. USE ONLY GENUINE REPLACEMENT PARTS Page 7 of 12 AquaRite Flo Advanced Rev. B...
- Page 8 • Proceed in the same way as for backwash cleaning, this time placing the filtration pump valve in the rinsing position. • When exiting the Filter Cleaning menu using the return/escape key, the system will revert back to the mode programmed previously. USE ONLY GENUINE REPLACEMENT PARTS Page 8 of 12 AquaRite Flo Advanced Rev. B...
- Page 9 • In the standard menu, the maximum dosing time is 60 minutes to avoid acidification of the water (AL3). • It can dose either acid or alkali (please contact your supplier). 110 – 230 V Max. 1.15 A USE ONLY GENUINE REPLACEMENT PARTS Page 9 of 12 AquaRite Flo Advanced Rev. B...
-
Page 10: System Settings
10.20 Status: Check the status of the name and the password of the detailed configuration enter your connection. network selected. into this menu or contact your installer. USE ONLY GENUINE REPLACEMENT PARTS Page 10 of 12 AquaRite Flo Advanced Rev. B... -
Page 11: Wifi Installation
The titanium cell includes a gas flow sensor, and you can combine the two for better control. Flow switch & USE ONLY GENUINE REPLACEMENT PARTS Page 11 of 12 AquaRite Flo Advanced Rev. B... -
Page 12: Variable Speed Pump
Maximum time exceeded for acid dosing. Check pH readings, calibration and verify that the acid tank is not empty. To reset the alarm press the ‘Back’ key. USE ONLY GENUINE REPLACEMENT PARTS Page 12 of 12 AquaRite Flo Advanced Rev. B... - Page 13 NOTES...
-
Page 14: Limited Warranty
LIMITED WARRANTY All Hayward products are covered for manufacturing defects or material defects for a warranty period of 2 years from the date of purchase. Any warranty claim should be accompanied by proof of purchase, indicating date of purchase. We would therefore advise you to keep your invoice. - Page 15 NOTES...
