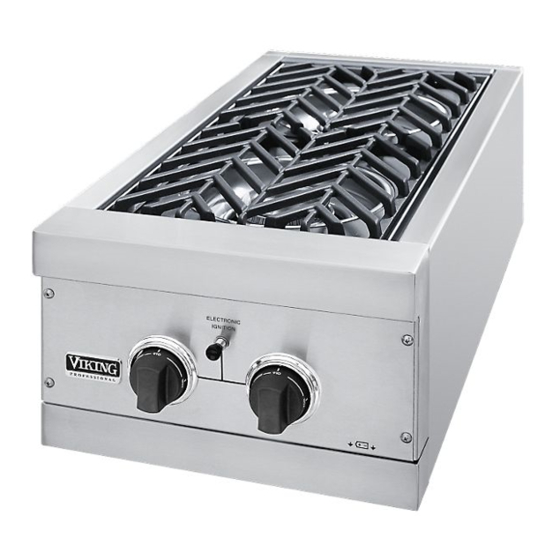

  • Page 1 Viking Installation Guide Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com Outdoor 15” Wide Double Side Burners F20921 EN (000000)

  • Page 2: Basic Specifications

    SAFETY TIPS IMPORTANT: PLEASE READ AND FOLLOW •Keep outdoor cooking appliance area free from combustible materials, gasoline and other flammable vapors and 1. Before beginning, please read these instructions completely and carefully. liquids. 2. Do not remove permanently affixed labels, warnings, or plates from product. This may void the warranty •Keep ventilation openings at the rear of the cart and cylinder free and clear to allow proper air flow.

  • Page 3: Natural Fixed Piping Connection

    DO NOT forget to place the installer supplied gas valve in an accessible location. NOTE: If using a Viking GSH12 flexible hose, remove the 3/8” flare adapter and attach hose to the the 1/2” (1.3 cm) male flare on the regulator assembly.

  • Page 4: Leak Testing

    LP/Propane Tank Connection LEAK TESTING Outdoor side burners orificed for use with LP/Propane gas come equipped with a high capacity hose/regulator assembly Although all gas connections on the unit are leak tested at the factory prior to shipment, a complete gas tightness check must for connection to a standard 20 lb.
  • Page 5 INSTALLATION PROCEDURES FOR BUILT-IN INSTALLATION Built-In Clearance Dimensions – VGSB5152 1. A minimum of 6” (15.2 cm) from the sides must be maintained from the side burners above the cooking surface to adjacent vertical combustible construction. The unit is not to be located under overhead unprotected combustible construction. 2.

  • Page 6: Ventilation For Built-In Installations

    BURNER ADJUSTMENT– VGSB5152 VENTILATION FOR BUILT-IN INSTALLATIONS Each burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the burners. The flames of the burners should be visually checked and compared with flame height illustration.

  • Page 7: Performance Checklist

    CLEANING AND MAINTENANCE PERFORMANCE CHECKLIST Any piece of equipment works better and lasts longer when maintained properly and kept clean. Grilling equipment is A qualified installer should carry out the following checks: no exception. Your TruSear™ Infrared Burner must be kept clean and maintained properly. 1.

  • Page 8: Service Information

    Have the following information readily available: from defective materials or workmanship in normal household use for a period of twelve (12) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
