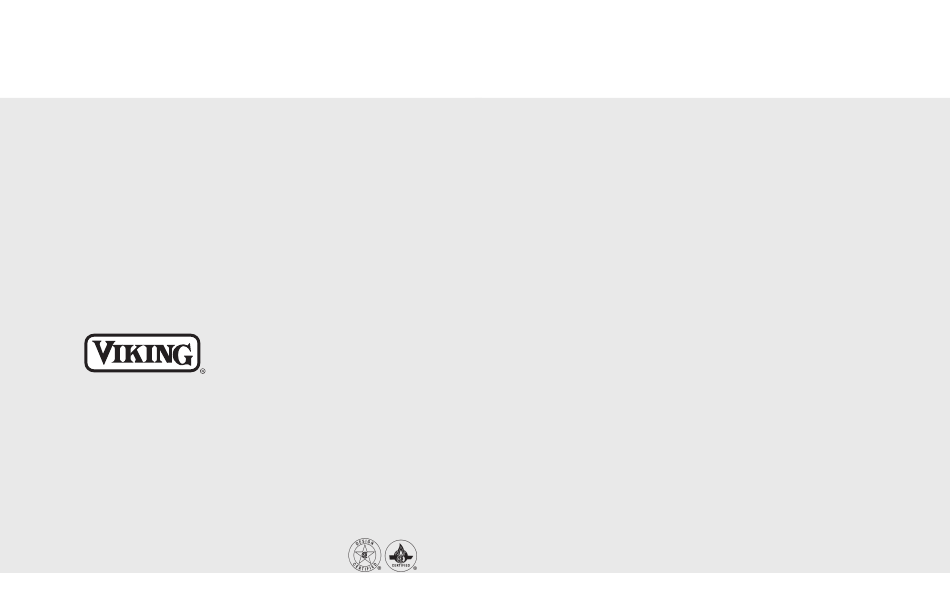

  • Page 1 Viking Installation Guide Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com Outdoor 15” Wide Double Side Burners F20921 EN (000000)

  • Page 2: Basic Specifications

    Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code, ANSI Z223.1. In Canada: Installation must be in accordance with the current CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes. BASIC SPECIFICATIONS Description VGSB5152 Overall Width 15-5/16” (38.9 cm) FOR YOUR SAFETY WARNING...
  • Page 3 DO NOT forget to place the installer supplied gas valve in an accessible location. NOTE: If using a Viking GSH12 flexible hose, remove the 3/8” flare adapter and attach hose to the the 1/2” (1.3 cm) male flare on the regulator assembly.

  • Page 4: Leak Testing

    LP/Propane Tank Connection LEAK TESTING Outdoor side burners orificed for use with LP/Propane gas come equipped with a high capacity hose/regulator assembly Although all gas connections on the unit are leak tested at the factory prior to shipment, a complete gas tightness check must for connection to a standard 20 lb.
  • Page 5 INSTALLATION PROCEDURES FOR BUILT-IN INSTALLATION Built-In Clearance Dimensions – VGSB5152 1. A minimum of 6” (15.2 cm) from the sides must be maintained from the side burners above the cooking surface to adjacent vertical combustible construction. The unit is not to be located under overhead unprotected combustible construction.
  • Page 6 BURNER ADJUSTMENT– VGSB5152 VENTILATION FOR BUILT-IN INSTALLATIONS Each burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the burners. The flames of the burners should be visually checked and compared with flame height illustration.

  • Page 7: Performance Checklist

    CLEANING AND MAINTENANCE PERFORMANCE CHECKLIST Any piece of equipment works better and lasts longer when maintained properly and kept clean. Grilling equipment is A qualified installer should carry out the following checks: no exception. Your TruSear™ Infrared Burner must be kept clean and maintained properly. 1.

  • Page 8: Service Information

    Have the following information readily available: from defective materials or workmanship in normal household use for a period of twelve (12) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
