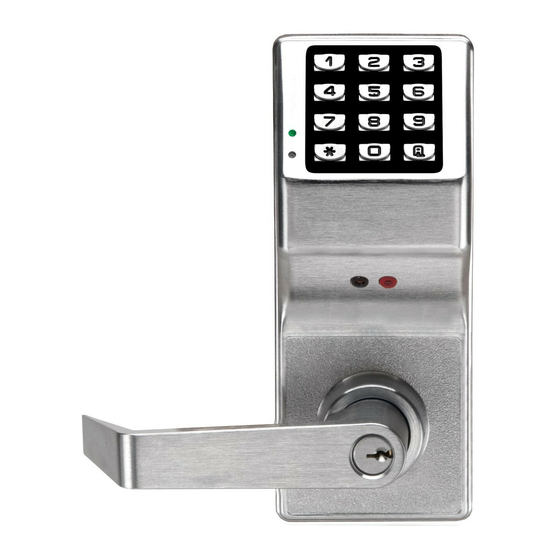

Alarm Lock Trilogy DL3000 Series Programming Instructions Manual

Standalone access control system
Hide thumbs Also See for Trilogy DL3000 Series:
Table of Contents

Advertisement

Quick Links

Trilogy
DL3000 Programming Instructions
345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ
Symbol: NSSC
OI224C 9/06
© ALARM LOCK 2006
DL3000 Trilogy Series
Standalone Access Control System
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trilogy DL3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm Lock Trilogy DL3000 Series

Summary of Contents for Alarm Lock Trilogy DL3000 Series

  • Page 1 Trilogy DL3000 Programming Instructions 345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC OI224C 9/06 © ALARM LOCK 2006 DL3000 Trilogy Series Standalone Access Control System...

  • Page 2: Table Of Contents

    User Code Record Sheet ........30 Conventions Used in this Manual ......8 Schedule Record Sheet ........31 Programming Levels ..........9 Glossary ..............32-33 Wiring, Power Up & Battery Replacement ..10 ALARM LOCK LIMITED WARRANTY ....36 LED and Sounder Indicators ........11 Product Communication Examples .....12...

  • Page 3: Dl3000 Lock Features

    • Transferable to AL-DTM AL-DTM Data Transfer Module • Use Alarm Lock’s AL-DTM to easily transfer program data between locks and a PC running DL-WINDOWS software. Easily transfer Audit Trail from multiple locks and then view or print each Audit Trail from a computer.

  • Page 4: Supported Products

    AL-IR1 PRINTER AL-PCI Cable An ALARM LOCK AL-PCI cable is required to communicate between your computer’s RS-232 serial com- munications port (COM 1-4) and the AL-DTM or lock. One end of the AL-PCI cable is designed to be used on a 9-pin serial Com Port. If your computer has a 25-pin Com Port only, a 25-pin to 9-pin adapter must be used.

  • Page 5: Lock Design Overview

    Lock Design Overview Why Use Software inside a Lock? With ordinary door locks, the need to make physical copies of metal keys and distributing them can be a huge organizational and financial task -- and what will you do if someone causes a security breach by losing their key? The answer lies in the advantage of software.

  • Page 6: Quick Start

    Quick Start First Time Start Up IMPORTANT: Failure to follow this exact procedure can result in erratic lock behavior. The DL3000 lock uses five (5) AA-size 1.5 volt alkaline batteries. Remove the back cover, install batteries into the battery pack. Connect the battery pack plugs and the lock will beep 3 times. To load the default program press any key within 5 sec- onds, the lock will beep slowly while the default values are loaded and beep rapidly upon completion.

  • Page 7: Terminology Used In This Manual

    Terminology Used in this Manual The Lock Program ming Level to access that Function. Each User must possess a Programming Level EQUAL to the Programming Level A Lock Program is stored within the lock's circuitry and contains assigned to the Function in order to access that Function. the instructions that the lock uses to perform its various func- When programming via the keypad, see page 13 for a list of all tions.

  • Page 8: Conventions Used In This Manual

    DL-Windows is a computer program that allows you to program lock to UNLOCK at 9AM, LOCK at noon for lunch, UNLOCK at your ALARM LOCK Security Lock. You do not need DL- 1PM, and LOCK again at 5PM--every weekday. As you can...

  • Page 9: Programming Levels

    Programming Levels The Programming Level defines which Programming Func- (Abbreviated as the Programming Level = "M"). tions a User is allowed to perform. Each User Number is as- Manager: Always associated with User Numbers 2-6. Can program all Functions except Functions relating to lock sociated with a defined level of ability--a Programming Level- -as to which Functions the assigned User can access.

  • Page 10: Wiring, Power Up & Battery Replacement

    Wiring, Power Up & Battery Replacement times and 6 beeps will sound. WIRING The lock is now ready for use. Program is loaded from See the Installation Manual for more information. non-volatile (fixed) memory. Note: Audit Trail and Clock Batteries: Settings are lost.

  • Page 11: Led And Sounder Indicators

    LED and Sounder Indicators The DL Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feedback is as follows: ACTIVITY SOUNDER COMMENTS Keypress 1 RED Flash 1 Beep Normal Operation Access Granted or Remote Input 2 GREEN Flashes 2 Beeps For Remote Input, wire a normally...

  • Page 12: Product Communication Examples

    Product Communication Examples Send to lock Receive from lock If your computer does not have a serial COM port AL-PCI CABLE (DB-9 male) available, you can plug your AL-PCI2 CONNECT TO SERIAL PORT (COM 1-4) cable into a special USB to RS-232 cable. Order part PCI-USB for the USB to RS-232 cable only, or ALPCI2-U for...

  • Page 13: Programming Functions--Overview

    Programming Functions--Overview FUNCTION DESCRIPTION PAGE FUNCTION DESCRIPTION PAGE NUMBER NUMBER NUMBER NUMBER Function 1 New Master Code Function 52 Set Pass Time to 10 Seconds Function 2 Add/Delete/Change User Codes Function 53 Set Pass Time to 15 Seconds 2-300 Function 54 Reserved Function 3 Disabling Users (By User Num-...

  • Page 14: Programming Functions

    Programming Functions USERS 1. New Master Code [ _ _ _ _ _ _ ] [ _ _ _ _ _ _ ] (User Number 1) (New Master Code) (Confirm New Master Code) • Master Code must be 6 digits-only. •...
  • Page 15 Programming Functions (cont'd) USERS (Continued) 5. User Enable with Timeout [ _ _ _ _ ] [ _ _ _ _ ] (Enter Timeout, XXX Hours) (User Number) (XXX Hours) (This Function enabled through keypad only) • With Function 5, User Numbers must be between 2-300, hours must be between 1-999. •...
  • Page 16 Programming Functions (cont'd) CLEAR FUNCTIONS 12. Clear All Schedules and Timeout Functions ; 1 2 ; 0 0 0 : Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions 5, 25 through 34 and Function 47.
  • Page 17 Programming Functions (cont'd) NOTE: Clear All Timeout Functions by entering Function 13. GROUPS Group Enable/Disable with Timeout (Enter Timeout, XXX Hours) (Functions 25-34 are enabled through the keypad only) • Hours must be between 1-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours. NOTE: Only 4 Timeout Functions are allowed at any one time.
  • Page 18 Programming Functions (cont'd) CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero. •...
  • Page 19 Programming Functions (cont'd) CLOCK ADJUST Clock Adjust Number of seconds to adjust (speed up/slow down) the clock each day must be be- tween 0-55 seconds. Note: Repeated use of these Functions are not "cumulative" (this means, for example, if the clock has already been set to speed up 10 seconds per day, and then is found to Clock Accuracy need an additional 10 seconds, then program 20 seconds using Function 43).
  • Page 20 Programming Functions (cont'd) PERMANENT PASSAGE MODE Passage Mode Enable/Disable - Schedule will not Override • Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function • Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46.
  • Page 21 E ..; 5 7 : 57. Print Clock Settings and Software Version ALARM LOCK SYSTEMS, INC VERSION DL26 org REC Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. 04/07/06 13:11:28 Tue...
  • Page 22 Programming Functions (cont'd) AL-DTM 59. Reserved LOCKOUT [ _ ] 60. Number of Attempts Before Lockout ; 6 0 (Number of Attempts) • Number of attempts before lockout must be 1-9 attempts. • The number of attempts is reduced by half every time the keypad is locked out without a successful code entry (default is 6 attempts).
  • Page 23 Programming Functions (cont'd) RELAY FEATURES [ _ _ ] ; 6 7 67. Add Relay Features (Event Number) Use Function 67 to program one or more lock events and the Relay will energize when the programmed event(s) listed below oc- curs.
  • Page 24 Programming Functions (cont'd) SCHEDULES Scheduled Passage Mode Enable/Disable Use the functions below to Enable/Disable Schedule Passage Mode. For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thurs- day, 6 for Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, 0 for all days of week.
  • Page 25 Programming Functions (cont'd) QUICK SCHEDULES Quick Schedules - Enable Group For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their User Codes into the keypad to unlock the lock.

  • Page 26: Audit Trail

    Programming Functions (cont'd) SCHEDULES GROUP 1 ACTIVATED Scheduled Relay Activation (Group 1 Activated) Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window, the relay will be activated for 2 seconds. For additional information, see Group 1 Acti- vated Features on page 27.

  • Page 27: Groups And Scheduled Group 1 Examples

    The following examples detail the more advanced features of the DL3000 lock. Although all features and device functions can be programmed using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock security lock.

  • Page 28: Groups And Scheduled Group 1 Examples

    Groups and Scheduled Group 1 Examples (cont'd.) Functions 90/91: Use Function 90 and 91 (see page 26) to create a window of time where if any Group 1 User Code is entered within the programmed window, a Relay will be activated for 2 seconds. 1.

  • Page 29: Programming Record Sheet

    Programming Record Sheet Default Values are shown in parentheses. Function Function Name Programming Number(s) 40/41 Daylight Savings Time Enable/ Enable [ ] Disable [ ] Disable (Enable) 43/44 Clock Adjust 0-55 seconds Seconds 51/52/53 Pass Time 3-5 sec [ ] 10 sec [ ] 15 sec [ ] (3-5 sec)

  • Page 30: User Code Record Sheet

    Page_____ User Code Record Sheet User Number User Code Group Programming Full Name (1-300) (3-6 digits) Association Level Note: To obtain a complete list of User Codes, use either the remote printer (see Program Function 56) or use DL-WINDOWS download software.

  • Page 31: Schedule Record Sheet

    Schedule Record Sheet Day(s) Up to 150 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3=Tuesday, 4 Wednesday Function Number 5 = Thursday, 6 = Friday, 7=Saturday, 8 = Monday - Fri- Time Function Name 9 = Saturday and Sunday, 0=All days of the week Enter time of day in 24 hour format (00:00- 23:59)

  • Page 32: Glossary

    Glossary ACCESS = Entry into a restricted area. COM PORT = A computer serial communications port used to commu- nicate with the Lock and/or Data Transfer Module. AMBUSH = A special Code entered at the keypad when the User is forced to unlock a device.

  • Page 33: Glossary

    Glossary (cont'd) • KEYPAD PROGRAMMING = Ability to program the lock through the keypad. RELAY = Switched output allowing remote control of other devices. For an explanation of all relay features, see Function 67 on page KEYPRESS = Pressing a button on the lock’s keypad. REMOTE INPUT = Entry into a restricted area, by pressing a button connected to the REMOTE INPUT WIRES (White and White) by LEVEL ABILITY = Predefined User Types (such as Master, Manager...
  • Page 34 NOTES...
  • Page 35 NOTES...

  • Page 36: Alarm Lock Limited Warranty

    In no event shall ALARM LOCK be liable for an amount in materials and workmanship for 36 months following in excess of ALARM LOCK's original selling price of the the date of manufacture.
