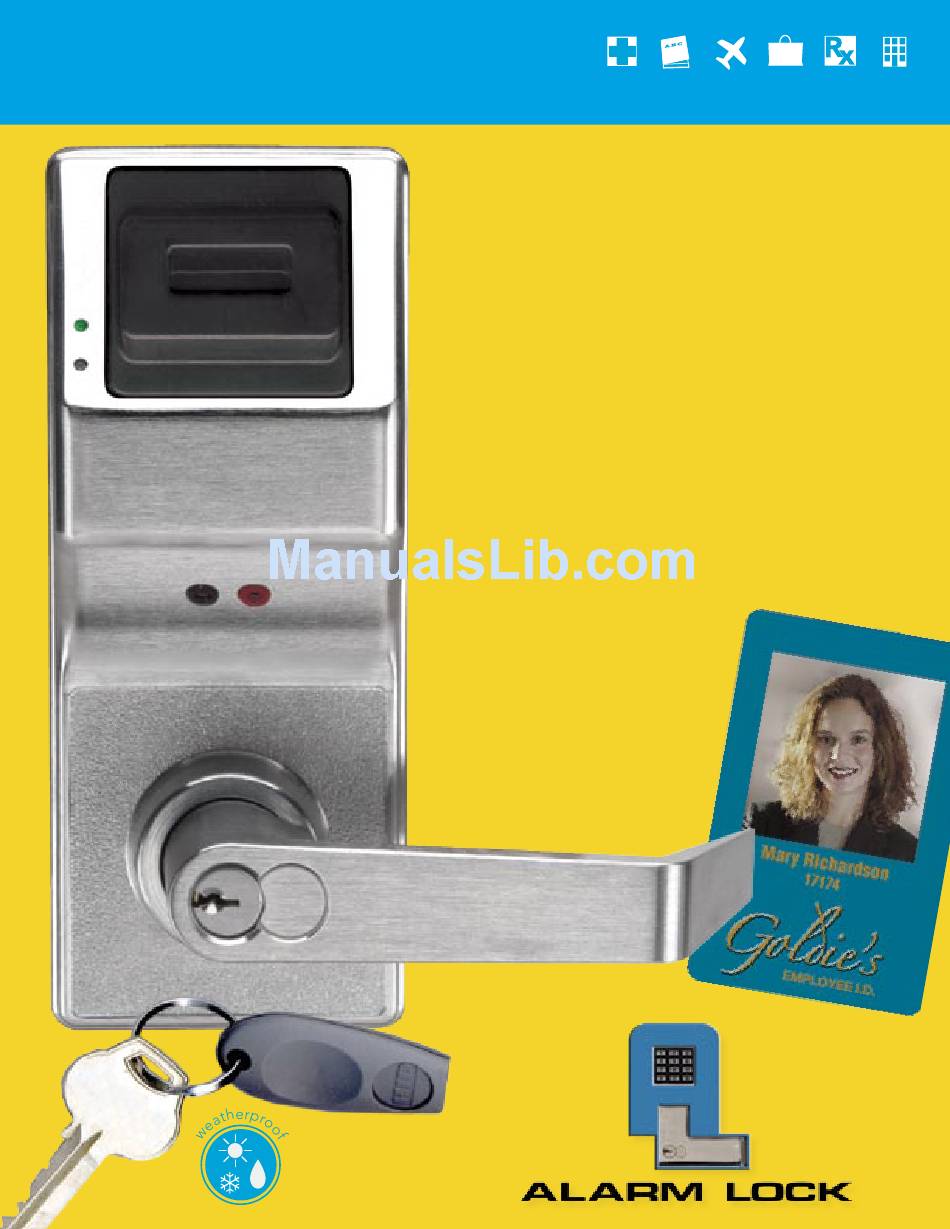

Alarm Lock PL3000 Datasheet

Trilogy: PL3000
hospital
Keypad-less standalone
access control locking
Ultra vandal-deterrence; No keys and
no PINs to record or administer
Field-proven, rugged keypad-less lock with ultra-vandal-proof prox reader built
•
in. Standalone lock – no wiring; long-life battery operation. (Key override with IC
core option.)
• Users are individually programmed to gain access only with HID prox cards, prox
keyfobs or prox tags, for the highest level of vandal-resistance and dependability
available.
• 2000 individual users gain entry access using new or legacy HID Prox ID cards,
prox keyfobs or prox tags. No keys or PIN codes to record or administer. 100%
Prox, keypad-less security for fastest entrant processing and the highest level of
dependable, vandal-deterrent standalone access control locking.
Weather proof performance, water-sealed for use inside and out, with operational
•
temperature range of +151°F to -31°F (+66°C to -35°C)
• Program/add users with Trilogy
presenting valid cards to prox reader on the lock face, while in programming
mode. (Note: Programming mode is activated by using one of the nine pre-
programmed cards furnished with the lock. )
• Scheduled Events: Real time clock enables up to 500 scheduled events and holiday
schedules. Program to lock/unlock; disable/enable users; 4 built-in time schedules
• Audit Trail with Time/Date Stamp Log: Up to 40,000 event audit trail with printed
time/date-stamped log of all electronic activity can
be reported from the lock including user entry,
unlock/lock events, program mode changes,
user entry, keypad lockout, remote release
events, unauthorized code attempts, etc., by
using the AL-IR1 (infrared printer), the AL-DTM
(data transfer module) or PCI2 (PC interface).
Program data transferred to lock via AL-PCII
(PC interface) or (AL-DTMII data transfer
module).
• "First-Manager-in" controls three (3) different
features: Passage mode, group of users and
relay options
• Programmable Form C Relay functions
for schedules of manual control of CCTV,
lighting, ambush function, alarm system, etc.
schools airport retail
DL-WINDOWS PC Programming, or by
®
office
pharmacy
