Alarm Lock DL 3000WP Parts List

MODEL DL 3000WP
LEVER SETS

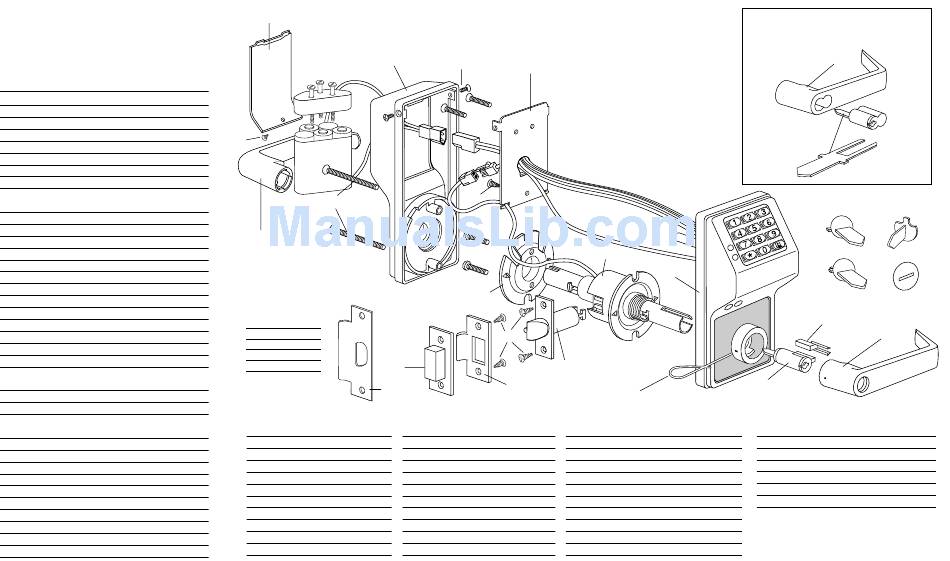

PARTS LIST
Standard Cylinder and Interchangeable Core Models
Key Part No. Description
1a HW592-US3 Battery Cover
1b HW592-US5 Battery Cover
1c HW592-26D Battery Cover
1d HW592-26 Battery Cover
2a HW615-US3 Inside Lever
2b HW615-US5 Inside Lever
2c HW615-26D Inside Lever
2d HW615-26 Inside Lever
Thru Bolt/10-32x2-1/2", (2)
3a SC458-US3 Flat Hd.,PH,MS
3b SC458-US5 Flat Hd.,PH,MS
3c SC458-26D Flat Hd.,PH,MS
3d SC458-26 Flat Hd.,PH,MS
4a S6044-US3 Inside Housing Ass'y
4b S6044-US5 Inside Housing Ass'y
4c S6044-26D Inside Housing Ass'y
4d S6044-26 Inside Housing Ass'y
Inside Mounting Screws (2)
5a P1526-US3 #6-32x3/8", Oval Hd
5b P1526-US5 #6-32x3/8", Oval Hd
5c P1526-26D #6-32x3/8", Oval Hd
5d P1526-26 #6-32x3/8", Oval Hd
6 HW594 Inside Mounting Plate
Inside Mounting Plate Screws (2)
7 SC459 #8-32 x 1", Flat Hd., PH, MS
8a P5851-26D #4-40x1/4", Flat Hd., PH, MS
8b P5851-3 #4-40x1/4", Flat Hd., PH, MS
Inside Rose Screws (2)
9 SC457 #10-32 x 1", w/#8 Pan Hd, PH, MS
10 HW564 Inside Rose
11 S6045 Lock Body Assembly
11A S6046 IC Lock Body Assembly
12a S6047-US3 Outside Housing Ass'y
12b S6047-US5 Outside Housing Ass'y
12c S6047-26D Outside Housing Ass'y
12d S6047-26 Outside Housing Ass'y
13a HW596-US3 Std. Cylinder Ass'y
13b HW596-26D Std. Cylinder Ass'y
1
4
8
28
3
2
FINISH LEGEND
US3 Polished Brass
US5 Antique Brass
26D Satin Chrome
26 Polished Chrome 21
27
Key Part No. Description Key Part No.
14 HW578 Cylinder Retainer 18a S6034-US3
15a HW614-US3 Outside Lever 18b S6034-US5
15b HW614-US5 Outside Lever 18c S6034-26D
15c HW614-26D Outside Lever 18d S6034-26
15d HW614-26 Outside Lever 18e S6035-US3
16a HW616-US3 Outside Lever-IC Core 18f S6035-US5
16b HW616-US5 Outside Lever-IC Core 18g S6035-26D
16c HW616-26D Outside Lever-IC Core 18h S6035-26
16d HW616-26 Outside Lever-IC Core 19a SC460-US3
17 HW618 Lever Release Pin 19b SC460-US5
5
6
7
19
9 11
10
19
18
20
17
Description Key Part No. Description
Latch - 2-3/4" Backset 19c SC460-26D #8x3/4" Combination screw
Latch - 2-3/4" Backset 19d SC460-26 #8x3/4" Combination screw
Latch - 2-3/4" Backset 20a HW577-US3 Strike 2-3/4" x 1-1/8"
Latch - 2-3/4" Backset 20b HW577-US5 Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 20c HW577-26D Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 20d HW577-26 Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 21 P5847 Dust Box
Latch - 2-3/8" Backset 22 HW598 IC Tailpiece for Best, Arrow, Falcon
#8x3/4" Combination screw 23 HW597 Std. Tailpiece
#8x3/4" Combination screw 24 HW580 Replacement tailpiece for Schlage
IC INTERCHANGEABLE CORE
16
22
23
12
25
14
13
Key Part No. Description
25 HW620 Replacement tailpiece for Lori
26 WA160 Tailpiece washer for all tailpieces
27a HW470-US3 Strike 4-7/8" x 1-1/4"
27b HW470-US5 Strike 4-7/8" x 1-1/4"
27c HW470-26D Strike 4-7/8" x 1-1/4"
27d HW470-26 Strike 4-7/8" x 1-1/4"
28 S6040 Battery Box Ass'y
TAILPIECES
24
26
15
W I993 6/99
