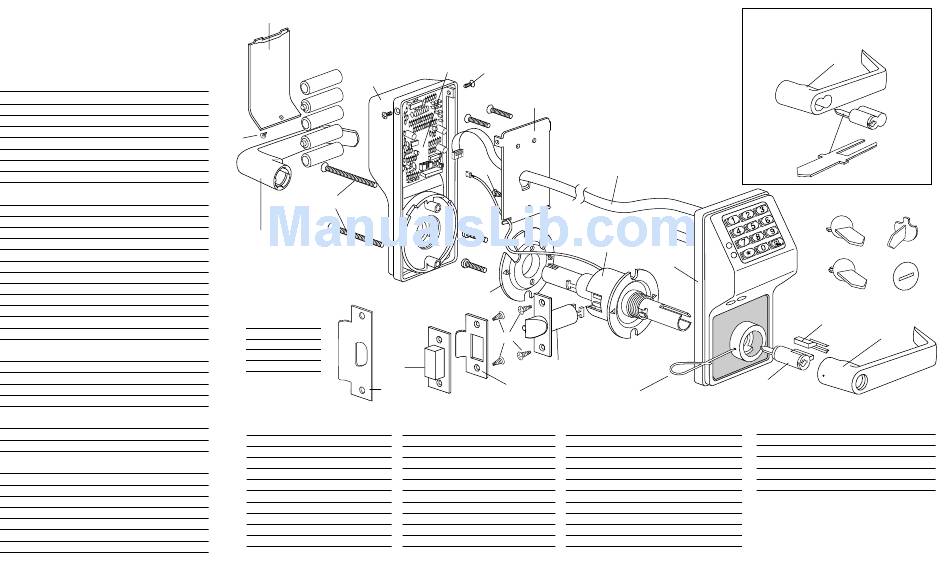

Alarm Lock DL 3000 Parts List

MODEL DL 3000
LEVER SETS
PARTS LIST
Standard Cylinder and Interchangeable Core Models
Key Part No. Description
1a HW592-US3 Battery Cover
1b HW592-US5 Battery Cover
1c HW592-26D Battery Cover
1d HW592-26 Battery Cover
2a HW615-US3 Inside Lever
2b HW615-US5 Inside Lever
2c HW615-26D Inside Lever
2d HW615-26 Inside Lever
Thru Bolt/10-32x2-1/2", (2)
3a SC458-US3 Flat Hd.,PH,MS
3b SC458-US5 Flat Hd.,PH,MS
3c SC458-26D Flat Hd.,PH,MS
3d SC458-26 Flat Hd.,PH,MS
4a S6059-US3 Inside Housing Ass'y w/PC Board
4b S6059-US5 Inside Housing Ass'y w/PC Board
4c S6059-26D Inside Housing Ass'y w/PC Board
4d S6059-26 Inside Housing Ass'y w/PC Board
4e S6044-US3 Inside Housing Ass'y less PC Board
4f S6044-US5 Inside Housing Ass'y less PC Board
4g S6044-26D Inside Housing Ass'y less PC Board
4h S6044-26 Inside Housing Ass'y less PC Board
5 S6053 PC Board Assembly
Inside Mounting Screws (2)
6a P1526-US3 #6-32x3/8", Oval Hd
6b P1526-US5 #6-32x3/8", Oval Hd
6c P1526-26D #6-32x3/8", Oval Hd
6d P1526-26 #6-32x3/8", Oval Hd
7 HW594 Inside Mounting Plate
Inside Mounting Plate Screws (2)
8 SC459 #8-32 x 1", Flat Hd., PH, MS
9a P5851-26D #4-40x1/4", Flat Hd., PH, MS
9b P5851-3 #4-40x1/4", Flat Hd., PH, MS
Inside Rose Screws (2)
10 SC457 #10-32 x 1", w/#8 Pan Hd, PH, MS
11 HW564 Inside Rose
12 S6014 Lock Body Assembly
12A S6015 IC Lock Body Assembly
13a S6048-US3 Outside Housing Ass'y
13b S6048-US5 Outside Housing Ass'y
13c S6048-26D Outside Housing Ass'y
13d S6048-26 Outside Housing Ass'y
1
4
9
3
2
FINISH LEGEND
US3 Polished Brass
US5 Antique Brass
26D Satin Chrome
26 Polished Chrome 22
28
Key Part No. Description Key Part No.
14a HW596-US3 Std. Cylinder Ass'y 18 HW618
14b HW596-26D Std. Cylinder Ass'y 19a S6034-US3
15 HW578 Cylinder Retainer 19b S6034-US5
16a HW614-US3 Outside Lever 19c S6034-26D
16b HW614-US5 Outside Lever 19d S6034-26
16c HW614-26D Outside Lever 19e S6035-US3
16d HW614-26 Outside Lever 19f S6035-US5
17a HW616-US3 Outside Lever-IC Core 19g S6035-26D
17b HW616-US5 Outside Lever-IC Core 19h S6035-26
17c HW616-26D Outside Lever-IC Core 20a SC460-US3
17d HW616-26 Outside Lever-IC Core 20b SC460-US5
5
6
7
8
20 29
12
10
11
20
19
21
18
Description Key Part No.
Lever Release Pin 20c SC460-26D
Latch - 2-3/4" Backset 20d SC460-26
Latch - 2-3/4" Backset 21a HW577-US3
Latch - 2-3/4" Backset 21b HW577-US5
Latch - 2-3/4" Backset 21c HW577-26D
Latch - 2-3/8" Backset 21d HW577-26
Latch - 2-3/8" Backset 22 P5847
Latch - 2-3/8" Backset 23 HW598
Latch - 2-3/8" Backset 24 HW597
#8x3/4" Combination screw 25 HW580
#8x3/4" Combination screw 26 HW620
IC INTERCHANGEABLE CORE
23
24
13
26
14
Description Key Part No.
27 WA160
#8x3/4" Combination screw
28a HW470-US3
#8x3/4" Combination screw
Strike 2-3/4" x 1-1/8" 28b HW470-US5
Strike 2-3/4" x 1-1/8" 28c HW470-26D
Strike 2-3/4" x 1-1/8" 28d HW470-26
29 W280
Strike 2-3/4" x 1-1/8"
Dust Box
IC Tailpiece for Best, Arrow, Falcon
Std. Tailpiece
Replacement tailpiece for Schlage
Replacement tailpiece for Lori
17
TAILPIECES
25
27
15
16
Description
Tailpiece washer for all tailpieces
Strike 4-7/8" x 1-1/4"
Strike 4-7/8" x 1-1/4"
Strike 4-7/8" x 1-1/4"
Strike 4-7/8" x 1-1/4"
Ribbon Cable Ass'y
W I993 6/99
