7.1.5

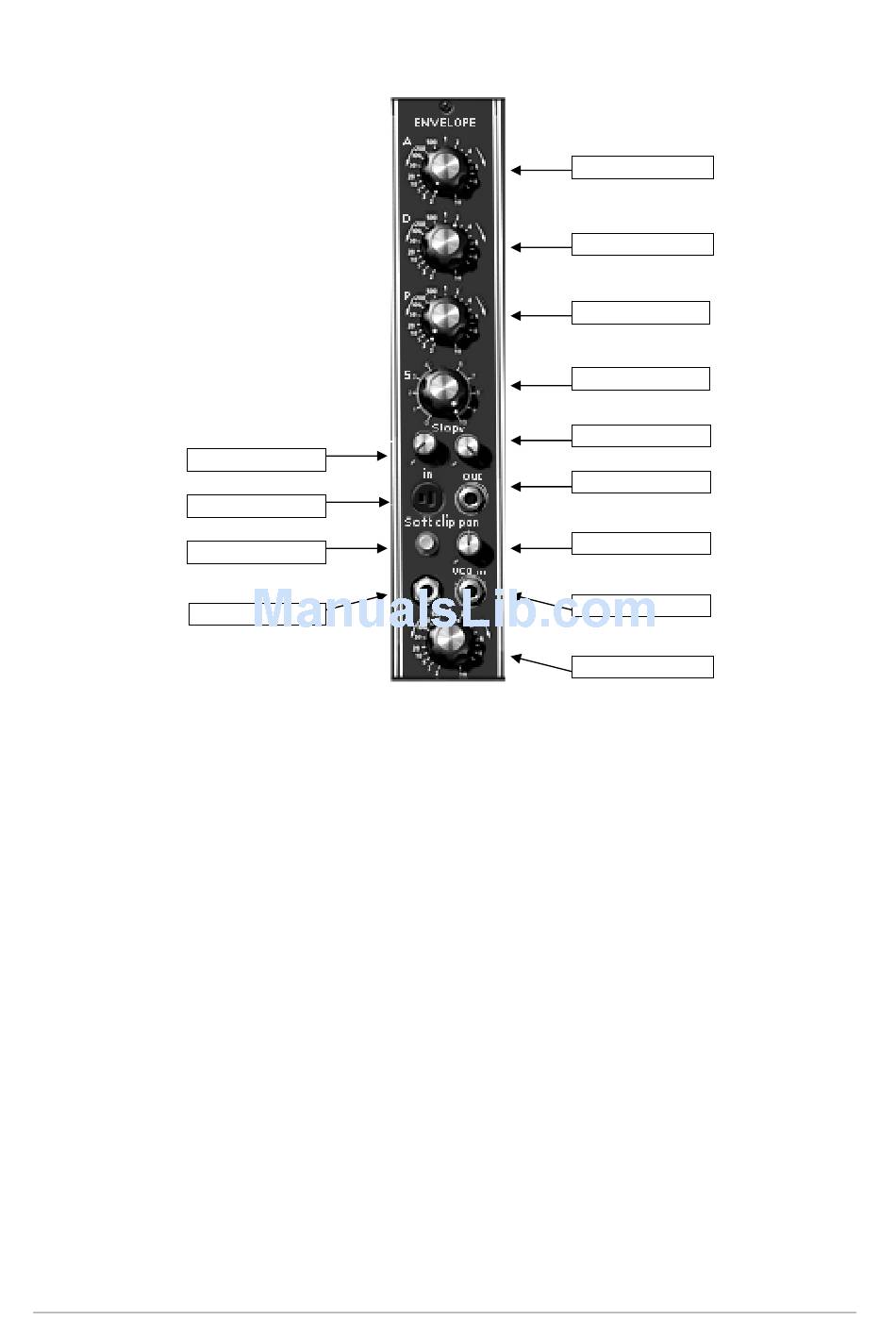

Output amplifiers (VCA)

Attack
Decay
Release
Sustain
Slope Time
Slope Level
Input Trigg
Envelope out
Audio Input
Panoramic
Soft Clip
AM Input
There are 2 output amplifiers, each possessing its own envelope. These amplifiers are
internally linked to a panoramic manager, which allows, through the "panoramic" knob, to
position the output in stereo space.
These amplifiers are the last step in the generation of a sound. The associated envelope
sculpts the temporal form of the signal at the end of the sequence after the application of all of
the other modulations. Unlike the modulation envelopes, it has an extra period between the
"attack" and "decay" sequences, called "slope". The time and level can be set for this period
and allows the envelope to move from the high point after attack to slope before moving to the
decay:
78
Slope Time
Input Trigg
Soft Clip
AM Input
Sets the attack time
Sets the decay time
Sets the release time (release)
Sets the sustain level
Sets the intermediate decay time
Sets the intermediate decay level
Input trigger signal connection jack
Envelope out connection jack
VCA input connection jack
Sets the position in stereo space
Use of gentle saturation
Audio modulation Input jack
Output envelope
ARTURIA – MOOG MODULAR V 2.6 – USER'S MANUAL
Attack
Decay
Release
Sustain
Slope Level
Mod Output
Panoramic
Audio Input
Gain
