first modulation input allows the dynamic modification of the bandwidth, the 2 others, the
central frequency.
A "type" selector provides a choice of filtering, band pass or band reject.

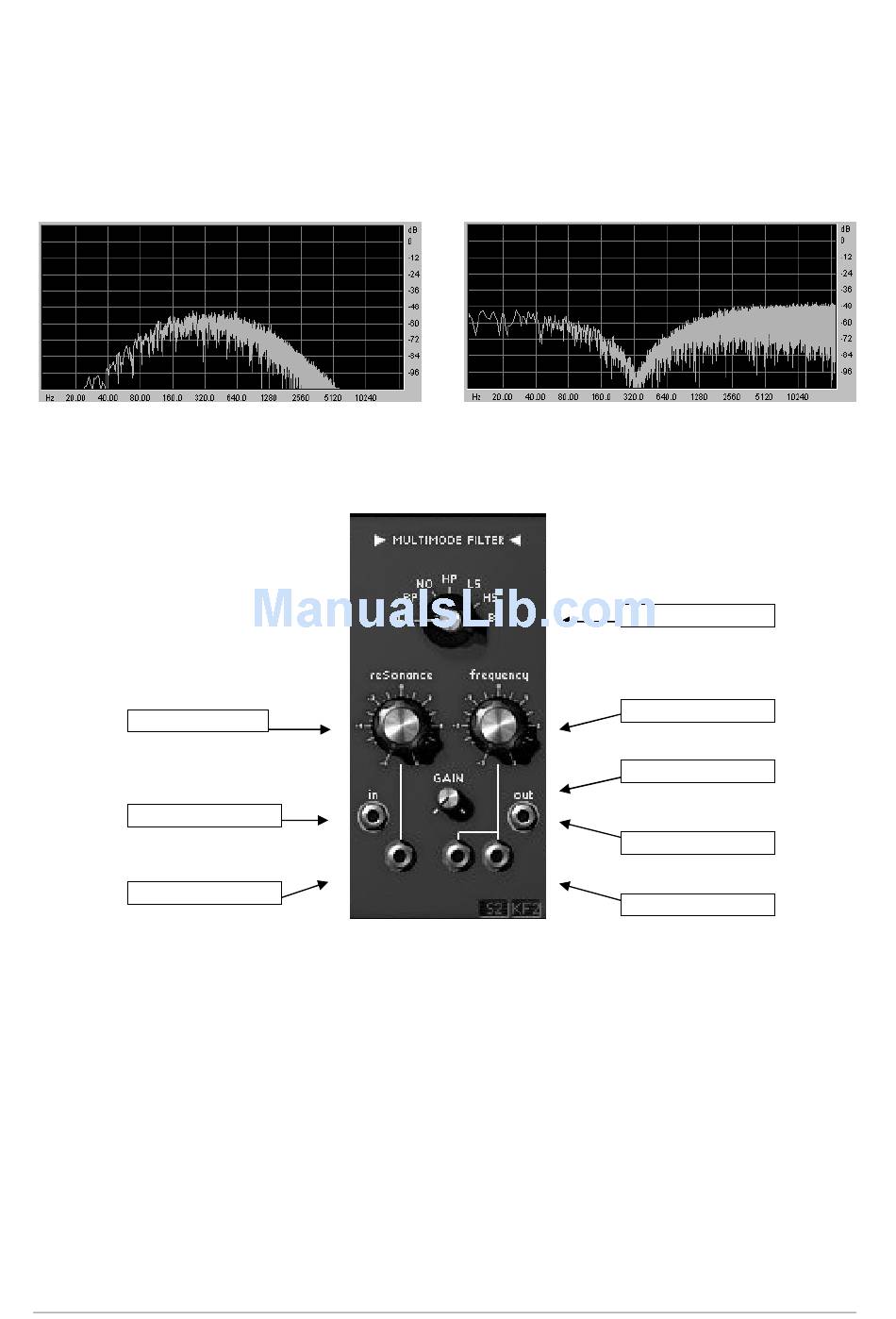

The following images represent the spectrum of the band-pass and band-reject filters where
the central frequency is 500 Hz.
Band-pass 24 dB/octave filter
7.1.3.4 Multi-mode 12 dB/octave filter
Resonance
Audio Input
ModRes Input
Type
Frequency
Resonance
Gain
Audio Output
Audio Input
FM Inputs
ModRes Input
Keyboard follow
Sequencer Choice
ARTURIA – MOOG MODULAR V 2.6 – USER'S MANUAL
Multimode 12 dB/octave filter
Choice of filter type
Sets the filter cut-off frequency
Sets the resonance of the filter
Sets the gain for bell, shelf High and Low.
Filter output connection jack
Filter input connection jack
Frequency modulation input jacks
Resonance modulation input connection jack
Keyboard follow choice tuning the filter (no follow, follow 1, 2, 3 or 4).
Choice of the sequencer output tuning the filter (no sequencer,
sequencer 1, 2, 3 or 4).
Band reject 24 dB/octave filter
Type
Frequency
Gain
Audio Output
FM Inputs
