Arkon CM097-2-USB Installation Instructions

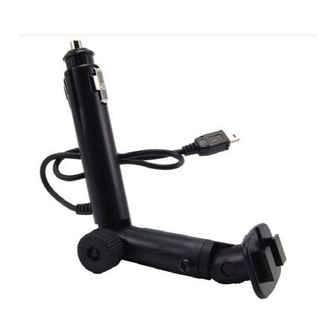

CM097-2-USB | Lighter Socket Mount with USB Power Connector
Mount Installation Instructions
Insert the DC Power plug (A) completely into the vehicle's
Step 1.
12V - 24V / lighter socket.
Step 2. Adjust the angle of the pedestal arm by tightening the
adjustment knob (B) to the desired placement angle.
A
B
C
Step 3. If necessary, adjust the rotation of the mounting head by
tightening the screw (C) with a screwdriver.
Step 4. Adjust the angle of the dual T-tab head by tightening the
wing nut (D) to the desired mounting angle.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
CM097-2-USB
Lighter Socket Mount
with Mini USB Power
D
Mini USB
power
connector
Package Contents:
(1) CM097-2-USB - Lighter socket mount with mini USB power
Specs: Input (12V - 24V) outlets, Output (5V, 500mA)
Make sure the power mentioned in the specs is compatible
with your device prior to use.
!
Do not place mount in or near an air bag deployment
zone or where it will obstruct view of the road.
Dual T Device Attachment
Attach the mini USB power connector (E) to the device's
Step 1.
power socket (F).
Note: The mini USB power connector will only power /
charge your device. Inserting the power connector in a
mini USB sync port will not provide power to the device.
Step 2. Attach the device to the pedestal by inserting the dual
T-tabs of the pedestal (G) into the dual T-slots of the
device (H).
The Mobile Mounting Specialists™
Consumer Hotline:
USA
(800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
(Device sold
separately)
H
G
F
E
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2009 Arkon Resources, Inc.
