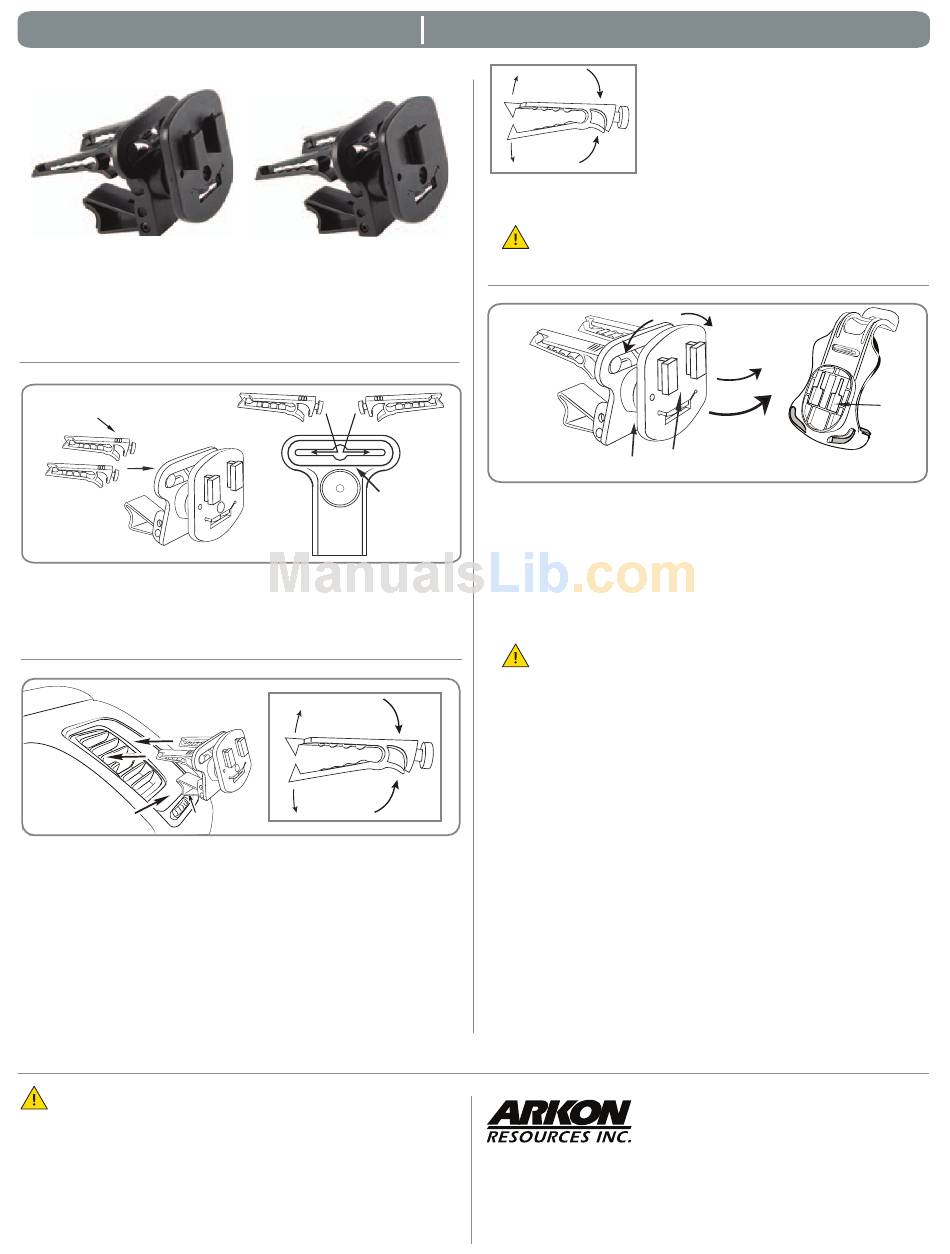

CM047-SRVC-2 & CM047-SRVC
CM047-SRVC-2
Flat side face up
(A)
Pedestal Assembly
Attach the vent mounting clips (A) to the back of the pedestal (B)
Step 1.
with the vent clips positioned with the flat sides facing up.
(C)
Insertion of Pedestal into the Air Vent
Step 1.
Pinch the vent mounting clips (A) so that the teeth open and
gently insert vent pedestal into vent louvres until the mounting
clips are attached to the fin/blade of the vent. Adjust the support
leg (C) vertically until it rests firmly along the bottom of the vent
or dash surface below the vent.
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
Removable Air Vent Pedestal
CM047-SRVC
Pedestal Adjustment & Device Cradle Installation
(B)
(Cradle Sold Separately)
Step 1.
Step 2.
(A)
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Pedestal Removal
Step 1.
Remove the device from the vent
mount assembly.
(A)
Pinch the vent clips (A) so that the
Step 2.
teeth open and carefully slide the
pedestal from the vent/blade.
Use caution when removing the pedestal. Make sure that the
teeth of the vent clips are open enough to not damage vent.
(B)
(E)
(D)
Adjust the swivel angle of the pedestal head by firmly holding
the back of the pedestal (B), pulling out the pedestal head and
twisting to the desired angle. Adjust the lateral angle of the
pedestal head (E) by simply twisting the head on the pivot axis
(D).
Use caution when adjusting the swivel movement to avoid
damaging your air vents.
Attach the device cradle to the pedestal by inserting the dual T-
Tabs of the pedestal (E) into the T-slots of the cradle (F). (Cradle
Sold Separately)
The Mobile Mounting Specialists
Mon-Fri. 9am-5pm, PST
© Copyright 2007 Arkon Resources, Inc.
(F)
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
