CM018-KST
CM018-KST-1
(B)
(A)

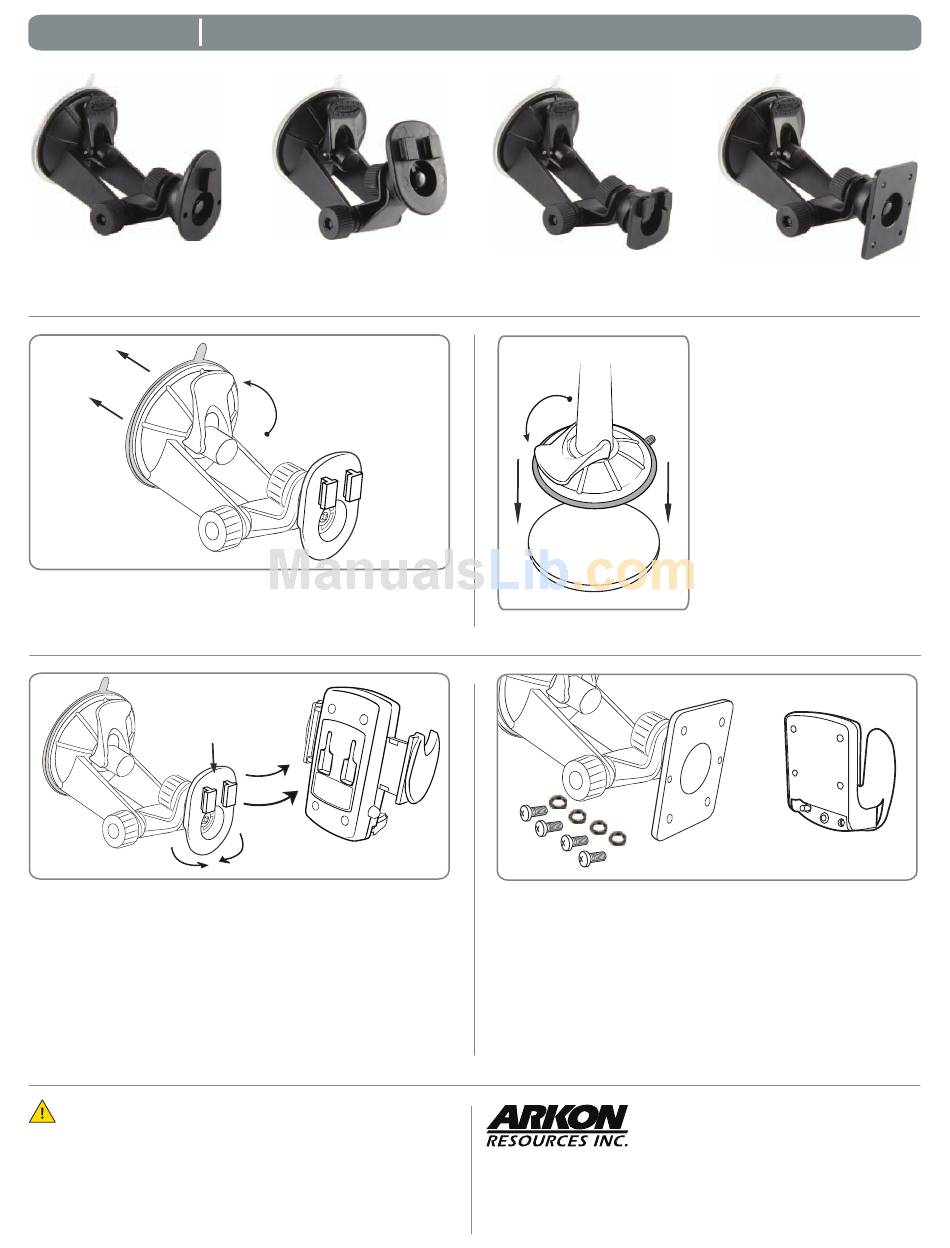

Windshield Installation
Step 1.
Push the pedestal suction cup (A) firmly to the windshield.
Flip the lever (B) down to secure the suction cup.
(F)
(E)
(D)
(D)
Gooseneck and Dual-T Head Instructions
Step 1.
Adjust the angle of the pedestal head by loosening the
adjustment knob (D).
Adjust the angle and rotation of the pedestal head by loosening
Step 2.
the adjustment knob (E).
Step 3.
Attach the device cradle (H) to the dual-T tab head (F) by
inserting the T-tabs into the T-slots (G). (Cradles are sold
separately and vary depending on the device that you are using)
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no
responsibility of liability for injury or death as a result of car crashes
and/or air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
5" Windshield Suction Pedestal
CM018-KST-2
(G)
CM018-KST-2SH
(B)
(H)
(K)
AMPS Configuration Instructions (For CM018-KST-AMPS)
Step 1.
Secure the AMPS pedestal head (I) to the device or device
cradle (J) by using a screwdriver to secure the pedestal head
with the nuts and screws (K) to the cradle. (Cradles are sold
separately and vary depending on the device that you are
using)
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
Dash Installation (Optional,
when disc is included)
Step 1.
Locate a safe flat surface on
the dash or console to
mount the pedestal. Clean
the dash with the alcohol
(A)
pad provided. Let the dash
surface dry before applying
the adhesive disc (C).
Step 2.
Push the pedestal suction
(C)
cup (A) firmly to the disc (C).
Flip the lever (B) down to
secure the suction cup.
(I)
The Mobile Mounting Specialists
© Copyright 2007 Arkon Resources, Inc.
CM018-KST-AMPS
(J)
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
