Arkon BBBOLD128 User Manual

BBBOLD128 | 1" Multi Angle Dash / Console Mount for BlackBerry® Bold™ 9000
CM048-2
Multi Angle
Dash Mount
Dash or Console Adhesive Mounting
Step 1. Find a safe location on the dash or console to mount the
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface.
Step 2. Remove the adhesive backing (A) under the triangular
pedestal and fi rmly press into place.
Step 3. After adhesive has bonded at room temperature (approx.
72° F), allow 24 hours prior to use for best results.
Step 4. Adjust the angle of the pedestal head by fi rmly holding the
base and rotating to the desired angle.
Dash or Console Screw Mounting (Optional)
Step 1. Find a safe location on the dash or console to mount the
pedestal. Make sure the area is clean and dry. Use the
included alcohol pad to clean the mounting surface.
Remove the adhesive backing (A) under the triangular
pedestal and fi rmly press into place.
BlackBerry brand name and Bold product name are trademarks or registered trademarks of
Research in Motion, Ltd. Arkon Resources, Inc. is not affi liated with Research in Motion, Ltd.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
CC007-BOLD
Custom Cradle
for BlackBerry Bold
Patent Pending
A
Continued on next column...
Package Contents:

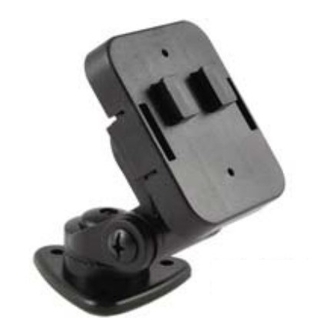

(1) CM048-2 - 1" Multi angle adhesive dash mount
(3) Self tapping screws (optional)
(1) CC007-BOLD - Custom cradle for BlackBerry Bold
(1) Alcohol cleaning pad
Compatible with:
• BlackBerry Bold 9000 smartphone
!
Do not place mount in or near an air bag deployment zone or where it will
obstruct view of the road.
Drilling into the dash, fl oor, or console will permanently damage the vehicle.
Use caution and consult a mobile install professional to avoid drilling into
the gas tank, electrical system or other highly sensitive vehicle components.
Step 2. Using a screwdriver, tighten the 3 screws (B) through the
pedestal base into the mounting surface. Adjust the angle
of the pedestal head by fi rmly holding the base and rotating
to the desired angle.
Cradle Connection and Bold Insertion into Cradle
Step 1. Attach the dual T-slots (C) on the back of the Bold cradle
to the dual T-tabs (D) on the dash mount pedestal head.
Step 2. Push and hold the right thumb tab (E) and gently insert the
Bold device (not included, sold separately) into the cradle.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
A
D C
E
(Device sold separately)
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2009 Arkon Resources, Inc.
