SM232 & CM932
CM018-KST-2 (Dual T-tab)
CM018-KST-1 (Single T-tab)
(B)
(A)

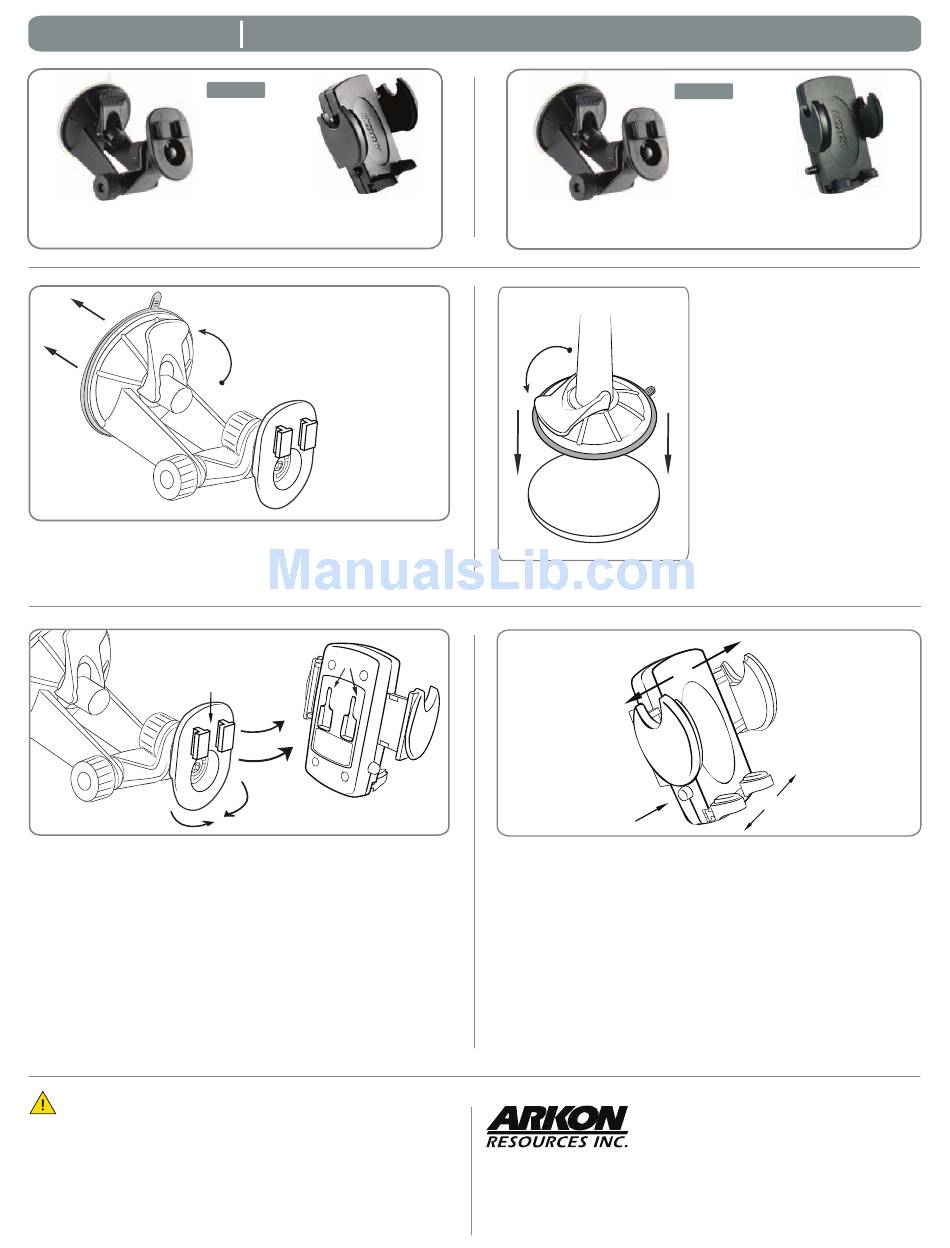

Windshield Installation
Step 1.
Push the pedestal suction cup (A) firmly to the windshield.
Flip the lever (B) down to secure the suction cup.
(F)
(E)
(D)
Pedestal and Dual-T Head Instructions
Adjust the angle of the arm by loosening the adjustment
Step 1.
knob (D).
Step 2.
Adjust the angle and rotation of the pedestal head by
loosening the swivel-tightening knob (E).
Attach the device cradle to the dual-T tab head (F) by
Step 3.
inserting the T-tabs into the T-slots (G).
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.

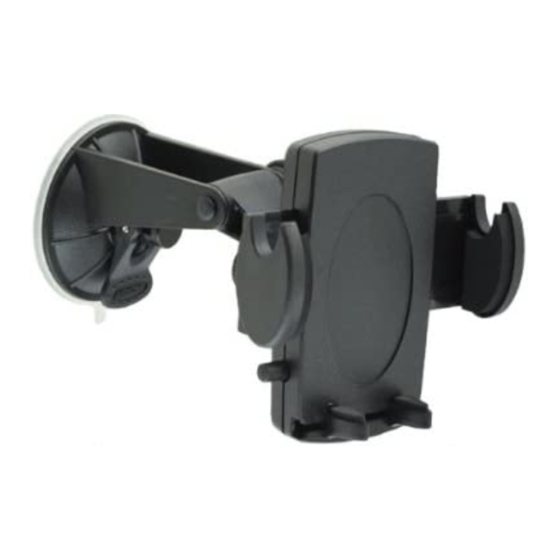

Universal 5" Windshield Mobile Phone or PDA Mount
SM232
SM020-2
SM020
(G)
CM018-KST-2 (Dual T-tab)
CM018-KST-1 (Single T-tab)
(A)
(B)
(C)
(I)
(J)
Universal Cradle Instructions
Step 1.
If necessary, adjust the support legs (K) by sliding them
laterally. These provide support for your device.
Step 2.
Place device on the support legs (K) and squeeze the side
grip arms (I) until they fit securely to the device.
Step 3.
Push the release button (J) in order to release the device from
the cradle.
The Mobile Mounting Specialists
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
CM932
CM090-2
CM090
Dash Installation (Optional,
when disc is included)
Step 1.
Locate a safe flat surface on
the dash or console to
mount the pedestal. Clean
the dash with the alcohol
pad provided. Let the dash
surface dry before applying
the adhesive disc (C).
Step 2.
Push the pedestal suction
cup (A) firmly to the disc (C).
Flip the lever (B) down to
secure the suction cup.
(K)
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2007 Arkon Resources, Inc.
