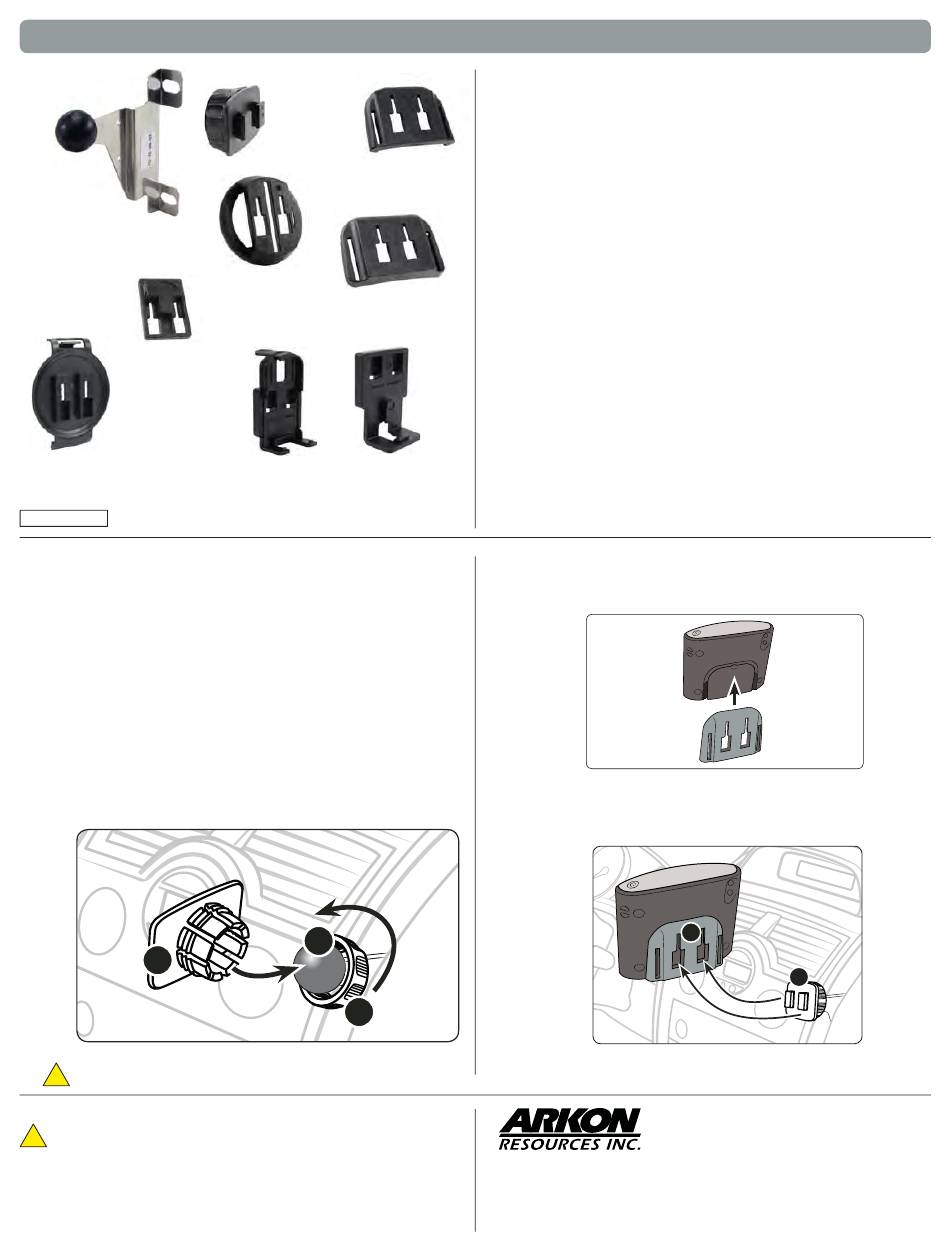

Arkon GPS-FO7208G3 Quick Start Manual

GPS-FO7208G3 | Vehicle Specifi c Mounting Bracket for Most Portable GPS
FO-72-08-G3
Pro.Fit™
Vehicle Specifi c
Mounting Bracket
(See included Pro-Fit
manual for instructions
& specifi c car compatibility)
APTTGO-S20
Adapter Plate for
TomTom GO
APTTSE A
Adapter Plate
for TomTom
Start™ & Ease™
Patent Pending
Installing the Vehicle Specifi c Moutning Bracket
Step 1. See the included ProFit VSM Bracket manual for instructions
on installing the VSM Bracket. Arkon reccomends that you
have the VSM bracket professionally installed. Arkon is
not responsible for any unintended damaged caused by
installation of the VSM Bracket.
*See included Pro.Fit maual for Vehicle Specifi c Mounting Bracket
instructions. For question regarding installation, contact Pro.Fit at
800.388.0073.
Connect Dual-T Head to VSM Mounting Pedestal
Step 1. Slip the tightening ring (A) over the VSM bracket ball. Snap the
dual-T head adapter plate (B) on to the bracket ball (C). Screw
the tightening ring over the adapter plate until securely holding
the plate. Adjust the angle as needed.
B
!
Do not place mount in or near an air bag deployment zone.
Safety Precautions
!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
SP-SBH-Kit
Dual-T Tab
Connects to
adapter plates
APTTO
Adapter Plate for
TomTom ONE
APTTEP
Adapter Plate
APTTOXL
for EasyPort™
Adapter Plate for
TomTom ONE XL / XL • S
APMM200 APMM300
Adapter Plate Adapter Plate
for Mio Moov for Mio Moov
200 Series 300 Series & newer
Magellan GPS
C
A

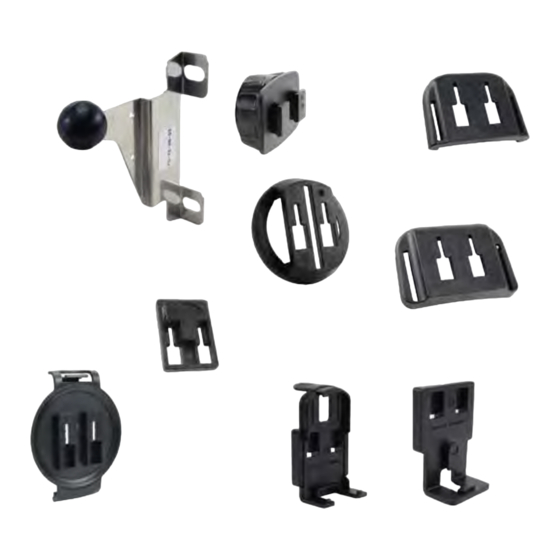

Package Contents:
(1) FO-72-08-G3 - Pro.Fit™ Vehicle Specifi c Mounting Bracket*
(1) SP-SBH-Kit - Dual-T Head with Swivel Ball Socket & Locking Ring
(1) APTTO - Adapter plate for TomTom ONE pattern
(1) APTTOXL - Adapter plate for TomTom ONE XL pattern
(1) APTTGO520 - Adapter plate for TomTom GO pattern
(1) APTTEP - Adapter plate for TomTom EasyPort™ pattern
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™ pattern
(1) APMM200 - Adapter plate for Mio Moov 200 Series pattern
(1) APMM300 - Adapter plate for Mio Moov 300 Series and newer Magellan GPS patterns
TomTom Device Compatibility:
TomTom ONE 125 (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S (TomTom EasyPort Mount)
TomTom XXL 530-S, XXL 540-S (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffi c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
Garmin Nuvi Device Compatibility - 17mm Ball Pattern:
255, 255w, 260, 260w, 265T, 265WT, 270, 275T, 285WT, 300, 300T, 310, 310T, 350, 360, 360T, 370, 370T, 500,
550, 600, 610, 650, 660, 670, 680, 710, 750, 755T, 760, 760T, 765T, 770, 775T, 780, 785T, 850, 855, 860, 880, 885T,
1200, 1250, 1260T, 1300, 1350, 1340T, 1350T, 1370T, 1390T, 1450, 1490T, 1690, 5000
Garmin StreetPilot Device Compatibility:
Magellan GPS Device Compatibility:
Magellan Maestro 3100, 3140, 3200, 3210, 3220, 3225, 3250, 4000, 4010, 4040, 4050, 4210, 4215, 4200, 4220,
4245, 4250, 4350, 4370, 5310, 5340
Magellan RoadMate 300, 360, 500, 500 Plus, 700, 760, 800, 860T 1200, 1210, 1212, 1215, 1220, 1230, 1340,
1400, 1412, 1430, 1440, 1445T, 1470, 1475T, 2000, 2200T, 2250T, 3000T, 3050T, 6000T
Magellan Triton 1500, 200, 2000, 300, 400, 500
Mio Moov Device Compatibility:
Mio Moov 200 Series and Mio Moov 300, 301, 310, 330, 330
Europe, 360, 370 Europe, 380, Mio Knight Rider Edition, Moov 500, S401, S501, M300, M400
NAVMAN Device Compatibility:
S30, S30 3D, S50, S50 3D, S70, S90i
*See included Pro.Fit maual for Vehicle Specifi c Mounting Bracket instructions. For question regarding
installation, contact Pro.Fit at 800.388.0073.
Connect Adapter Plate for TomTom ONE or ONE XL to Device
Step 1. Slide the adapter plate up into the grooves on the back of the
TomTom ONE, XL, or XL • S device (not included, sold separately).
Connect TomTom ONE, XL, or XL • S Device to Pedestal
Step 1. Connect the dual T-tabs (A) on the dual-T pedestal to the dual
T-tab slots (B) on the adapter plate.
All brand names and product names are trademarks or registered trademarks of their respective owners.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
200, 200w, 205, 205w, 250, 250w,
c310, c340, c510, c530, c550, c580
B
A
Continued on other side...
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in the USA & China
© Copyright 2010 Arkon Resources, Inc.
