Arkon IPM525-S User Manual

IPM525-S |
Flexible Gooseneck Seat Bolt or Floor Mount for Apple iPhone® and iPod touch®
CM088-TS-2
15" Flexible Floor Mount
SP-CM088-SBH
360º Swivel SBH Head
(optional)

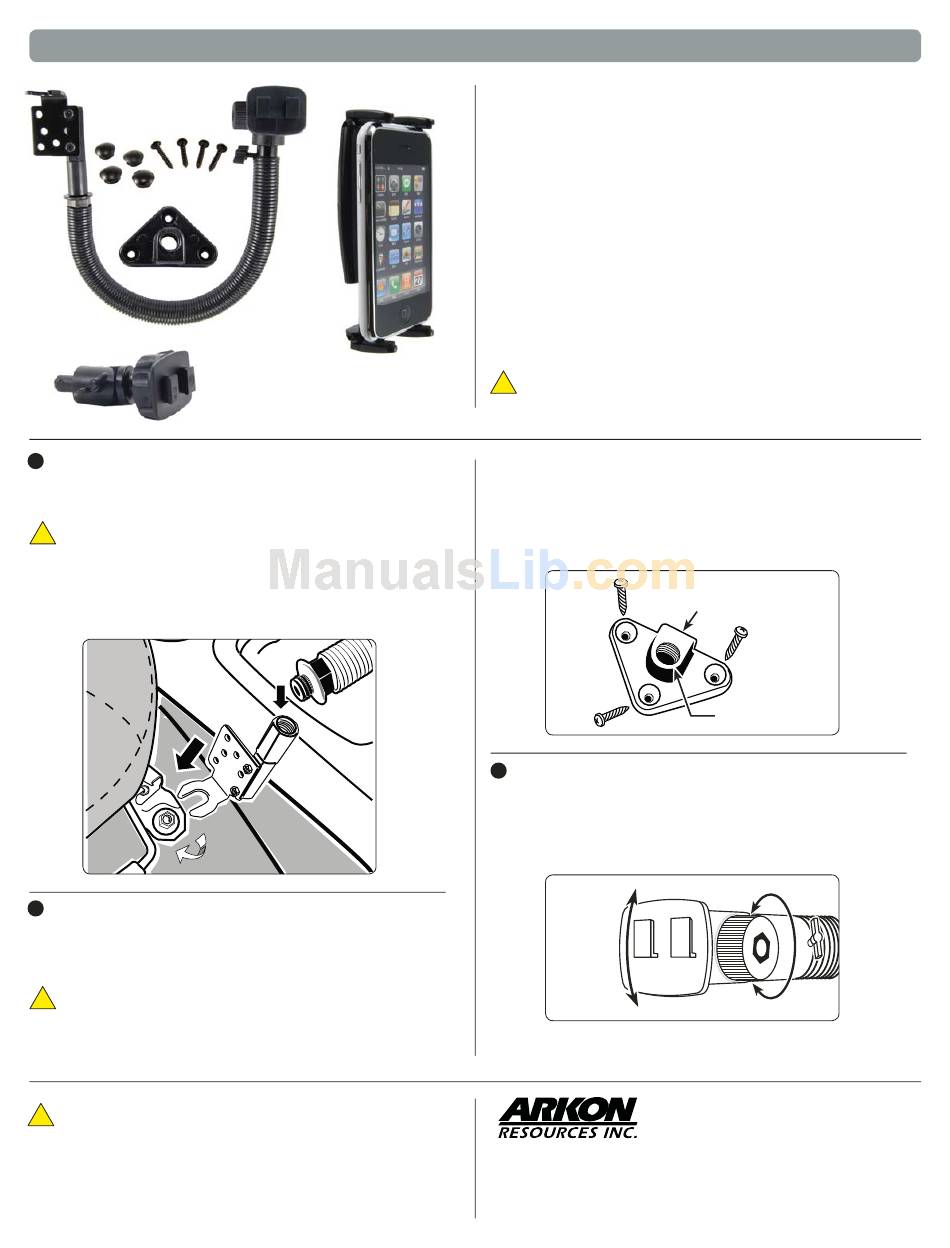

1 Passenger Seat Bolt Mounting
For a simple mount that can be easily moved to another vehicle, install
using the passenger seat track bolt.
Do not place mount in or near an air bag deployment zone or
!
where it will obstruct view of the road.
Step 1. Screw the fl exible steel shaft into the seat track bolt bracket.
Step 2. With a socket wrench, loosen the passenger seat track bolt, in-
sert the seat track bolt bracket, and retighten the seat track bolt.
2
Floor or Console Mounting
For a more permanent mount, connect the Floor / Console Mount Bracket
to the fl oor or console. This will require drilling into your vehicle's
interior surface.
! Drilling into the dash, fl oor, or console will permanently damage
the vehicle. Use caution and consult a mobile install professional
to avoid drilling into the gas tank, electrical system or other highly
sensitive vehicle components.
!
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.

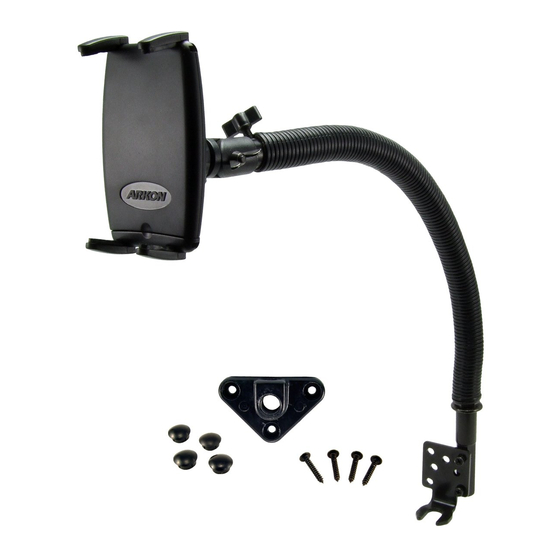

Package Contents:
(1) CM088-TS-2 - 15" Flexible steel gooseneck fl oor or console mount
Includes: (1) Seat Bolt Bracket, (1) Floor / Console Bracket, (4)Screws,
(1) SM050-2 - Slim-Grip™ holder for Apple iPhone and iPod touch®
(1) SP-CM088-SBH - 360º Swivel SBH Head (optional)
Compatible with the following devices:
•
•
•
•
•
SM050-2
!
Slim-Grip™ Holder for
iPhone & iPod touch
*Apple®, iPhone®, and iPod touch® are trademarks of Apple Computer, Inc. Arkon Resources, Inc. is not affi liated with Apple Computer, Inc.
Step 1.
Step 2.
Step 3.
3
Pedestal Head Adjustments
Step 1.
Step 2.
Consumer Hotline:
USA
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
(4) Plastic Caps, and (1) Flexible Steel Shaft with Plastic Tubing
Apple iPhone® 4
Apple iPhone® 3GS
Apple iPhone® 3G
Apple iPhone® Original
Apple iPod touch® - All models
Do not place mount in or near an air bag deployment zone or where it
will obstruct view of the road.
Position the Floor/Console Bracket and drill into the fl oor or console.
Attach the Floor / Console Bracket with screws and cover with
plastic caps.
Screw the steel shaft into the Floor / Console Bracket.
Console Mount
Adjust the steel shaft by bending with both hands to the
desired location of the male dual T head.
Use the adjustment knob and wing nut on the pedestal head to
swivel or rotate the head position if necessary.
The Mobile Mounting Specialists™
(800) 841-0884
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
Floor Mount
Continued on other side...
www.arkon.com
Arcadia, CA 91006 USA
