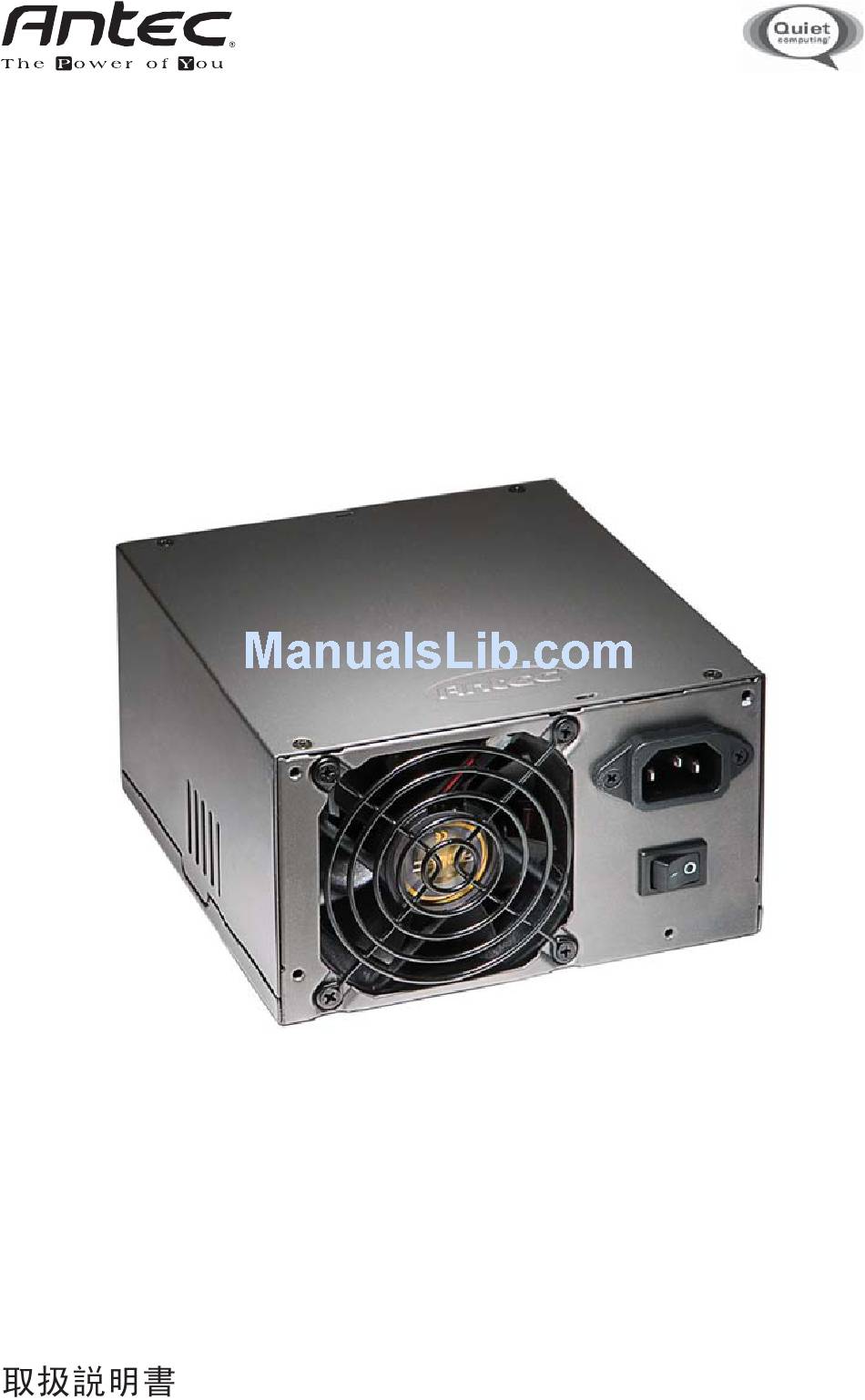

- Page 1 NeoPower™ 430/500/550/650 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Advanced cable management system NeoPower PSUs feature Antec’s advanced cable management system, which allows you to use only the power cables that you need, thereby reducing clutter and improving airflow inside your case. Inside the package, apart from a power...
- Page 3 Installation: Install the NeoPower® PSU into your case with the four screws provided. Connect the 24-pin Main connector to your motherboard.
- Page 4 Connect the 4-pin (3a) or 8-pin (3b) connector for the CPU. Note: Please also refer to your motherboard user guide for any special instructions. Connect the cables from cable pack to the socket on the power supply as needed. If you are using the PCI Express cables, make sure that the end of the cable labeled PCI-E is plugged into the video card, not the PSU.
- Page 5 Parts List: Quantity Picture Part Name Description NeoPower Includes 24-pin power supply main connector, 8-pin +12V connector (except 430) and a 4-pin +12V Connector. (NeoPower 650 has a 6+2 PCI-E.) 77 cm Molex Includes three connector w/cable Molex connectors per cable Includes two 78 cm Serial ATA connector w/cable...
-
Page 6: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
