Summary of Contents for Antec Neo HE380

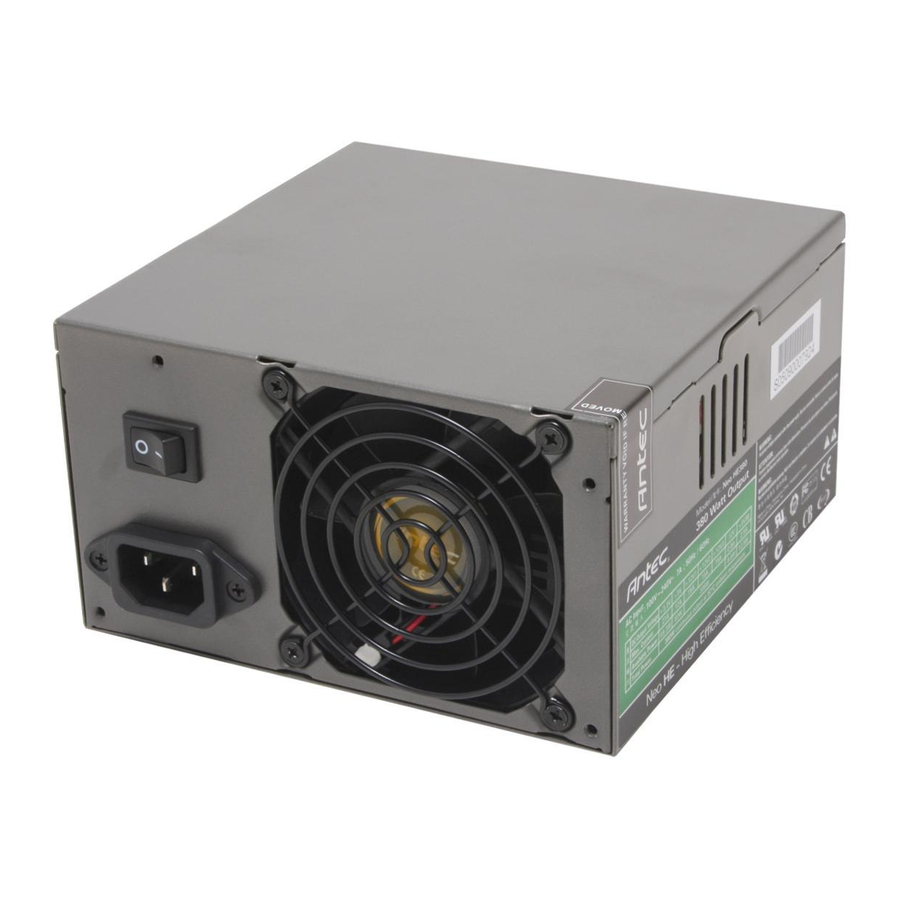

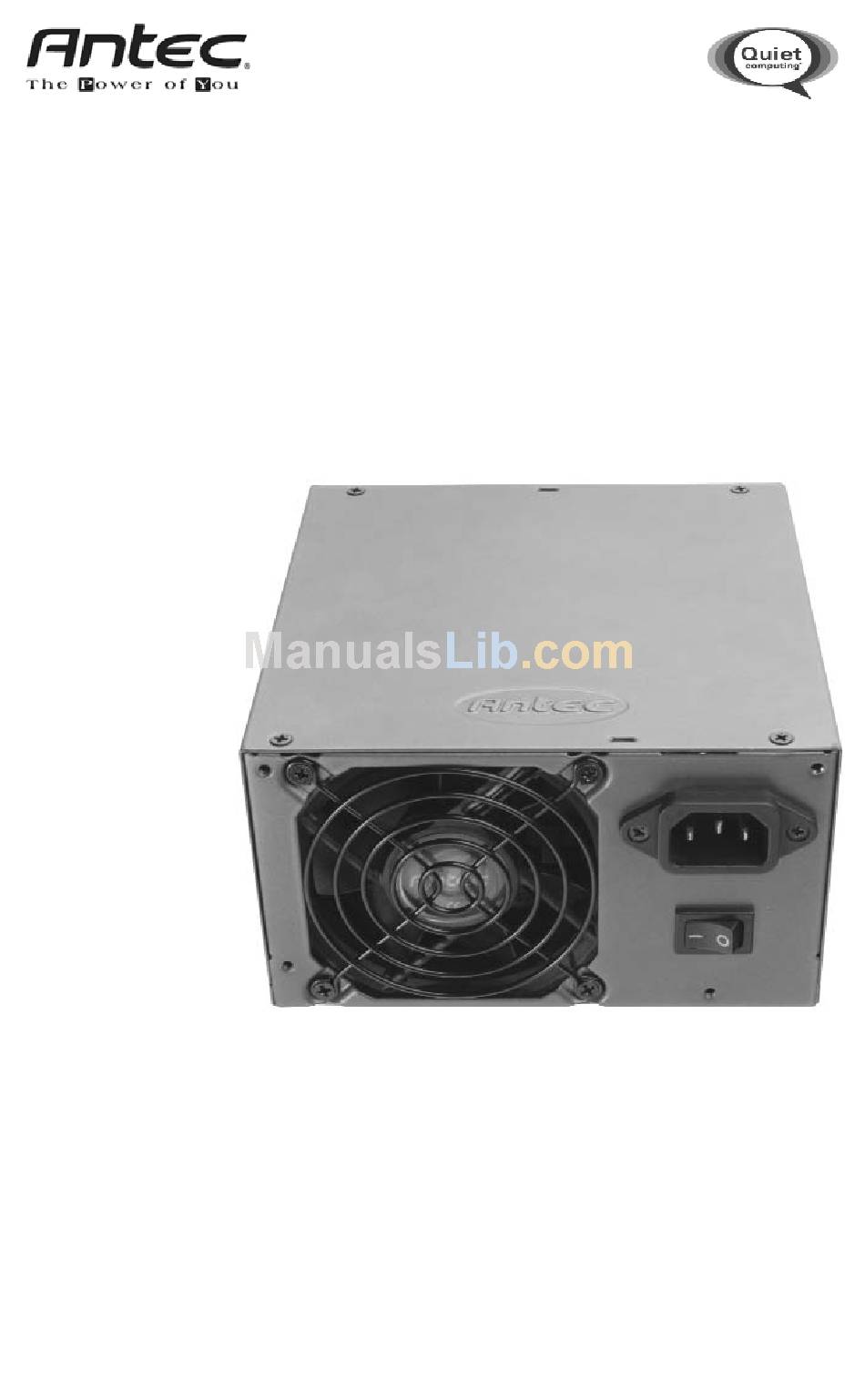

  • Page 1 power User’s Manual Manuel de l’utilisateur / Anwenderhandbuch Manuale per l’operatore / Manual del usuario Neo HE High Efficiency Power Supply protect...
  • Page 2 Connectors: Neo HE power supplies are ATX12V version 2.2 form factor compatible. The Neo HE380 and Neo HE430 include a 24-pin main power connector with detachable 4-pin connector, and a 4-pin +12V power connector for ATX single CPU systems. Neo HE500 and...
  • Page 3 Floppy power connectors at the other end. 5. For Neo HE380 and Neo HE430: one set of wires with a 6-pin PC I Express graphic card connector at one end and a 6-pin PSU connector at the other end.
  • Page 4 77 cm Molex connector w/cable 14 cm Molex to Floppy connectors w/cable 60 cm PC I Express connector w/cable (Neo HE380 andNeo HE430 only) 60 cm PC I Express connector w/cable (Neo HE500 and Neo HE550 only) 73 cm Serial ATA connector w/cable Installation: This power supply is backwards-compatible to previous ATX specifications.
  • Page 5 your PCI Express graphic card for detailed usage instructions. NOTE: For Neo HE 500 and Neo HE 550 only. When using dual graphic card systems (i.e. SLI), we recommend that the PC I connectors be attached as follows: one PC I connector to one of the first two 6-pin sockets and the second PCI connector to one of the next three sockets to the right.
  • Page 6 © Copyright 2005 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Antec, Inc. 47900 Fremont Blvd. Fremont, CA 94538 Tel: 510-770-1200 Fax: 510-770-1288 Antec Europe B.V.
