Antec 650 Specification

P O W E R S U P P L I E S
Don't Compromise – Save Energy and
Maximize Performance
Get more power and lower your electric bill with the new EarthWatts 650! One of the most environmentally-friendly
power supplies available, the EarthWatts 650 efficiently delivers 650 Watts of reliable and stable power while
meeting 80 PLUS®, the highest independently certified standard in energy efficiency. That means the EarthWatts 650
consumes up to 33% less energy than an equivalent power supply with absolutely no reduction in excellent
performance. On top of that, the EarthWatts 650 boasts universal input to automatically work on any power grid on
the planet, and a 120mm fan to keep cool.
UCC13# 0761345-27650-4 US
UCC13# 0761345-04660-2 EC
UCC13# 0761345-04661-9 GB
SPECIFICATION:
• ATX12V version 2.2
• 120mm low noise cooling fan
• Three 12V output circuits provide added system stability
• Industrial-grade protection circuitry prevents damage
resulting from short circuits, power overloads,
over voltage, and under voltage
• 80 PLUS® certified: reduces operating costs and protects the
environment
• 6 SATA connectors
• One (6+2) PCI-E connector
• Safety approvals: UL, CUL, FCC, TÜV, CE, CB, C-tick, CCC
• Universal Input
• Active Power Factor Correction (PFC)
• PF value up to 99%
• AQ3 – Antec Quality three-year parts and labor warranty
Antec—the leader in power supply technology since 1986.
www.antec.com
1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)

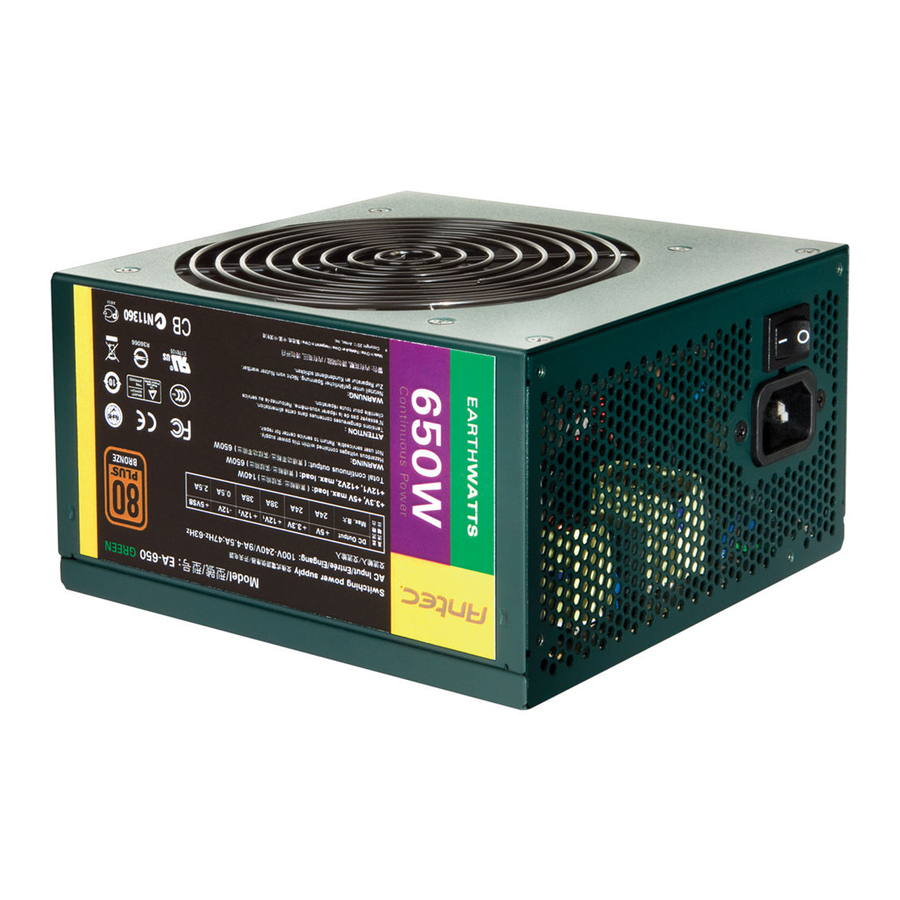

EarthWatts 650
Get the power you need, reduce your operating costs, and
protect the environment with the EarthWatts 650!
Safety Protection
Environmental:
Operating Temperature
Net Weight
Safety Approvals
Size
Input:
Input Voltage
Input frequency Range
Efficiency
Output:
Output
Voltage
1. +5 V
2. +12V
3. +12V
4. +12V
5. -12 V
6. +5VSB
7. +3.3V
Max. Power Output: 650W
+3.3V and +5V total power cannot exceed 160W.
+3.3V,+5V , +12V
+12V ,+12V
1
®
www.80PLUS.org
More than 80% efficient
at 20%, 50% & 100% load
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Current Protection (OCP)
0°C to 50°C
5.75 lbs
UL, CUL, FCC, TÜV, CE, C-tick, CCC, CB
3.4" (H) x 5.9" (W) x 6" (D)
100~240VAC ± 10%
47Hz ~ 63Hz
80% or higher
Load Range
Surge
Min Max
0.2 A 25.0 A
19(10ms)
0.5 A 18.0 A
1
0.5 A 18.0 A 19(10ms)
2
19(10ms)
0.5 A 25.0 A
3
0 A 0.5 A
3.5(17ms)
0 A 2.5 A
0.1 A 25.0 A
,+12V & +12V total power cannot exceed 631.5W.
1 2 3
& +12V total power cannot exceed 540W
2 3
Ripple
Ripple
Regulation
& noise
70
±5％
50
±5％ 120 150
±5％ 150
120
±5％ 120 150
±10％ 120 150
±5％ 70
50
±5％ 70
50
