Summary of Contents for Antec NEOPOWER 480

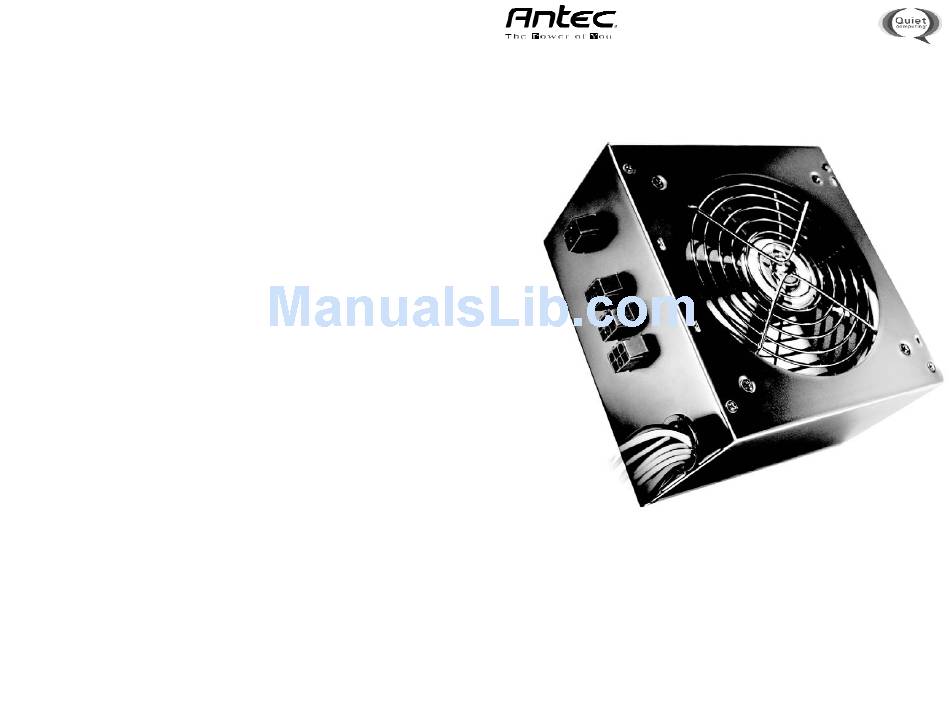

- Page 1 NEOPOWER 380/480 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 OFF (O) position. Models: NEO380 and NEO480 Advanced Cable Management System – NeoPower features Antec's advanced Cable Management System. It allows you to use only the power cables that NeoPower power supplies include Universal Input and Active PFC. Universal you need, thereby reducing clutter and improving airflow inside your case.
- Page 3 3. If you need to remove an additional connector from a cable, please wrap the wire with electrical tape. (See Photo 8.) Disclaimer: The additional connectors are provided for your convenience. Antec will not be responsible for any damage due to the incorrect connection of the additional Molex or SATA connectors.
- Page 4 460W *Optional Aux Power Connector w/cables (48 cm long) is available through Antec customer service. Call for availability. 2. Ripple & noise test condition: AC 230V/115V 50/60Hz full load 3. Peak power and current loading shall be supported for a minimum of 1 second.
- Page 5 has been removed and reset PS-ON for a minimum of 1 second. Then it will 115V/230V(FULL LOAD):1mS minimum turn on again. 3.1 OVER CURRENT PROTECTION Over current (Sense level) AC-V +12V &+12V +3.3V NEO380 40A Min. 52A Max. 19A Min. 26A Max.
- Page 6 HOUSING: JMT JP11635-4 Black HOUSING: WST P4-A10202 OR EQU HOUSING: WST P4-I25001 OR EQU Black TERMINAL: JMT J1120BS-2 TERMINAL: JMT J11635BS-2 TERMINAL: WST A10209BS-2 ERMINAL: WST I25001BS-2 OR EQU Antec Quality 3-Year parts and labor warranty (AQ3) See details at: http://www.antec.com/warranty.html...
