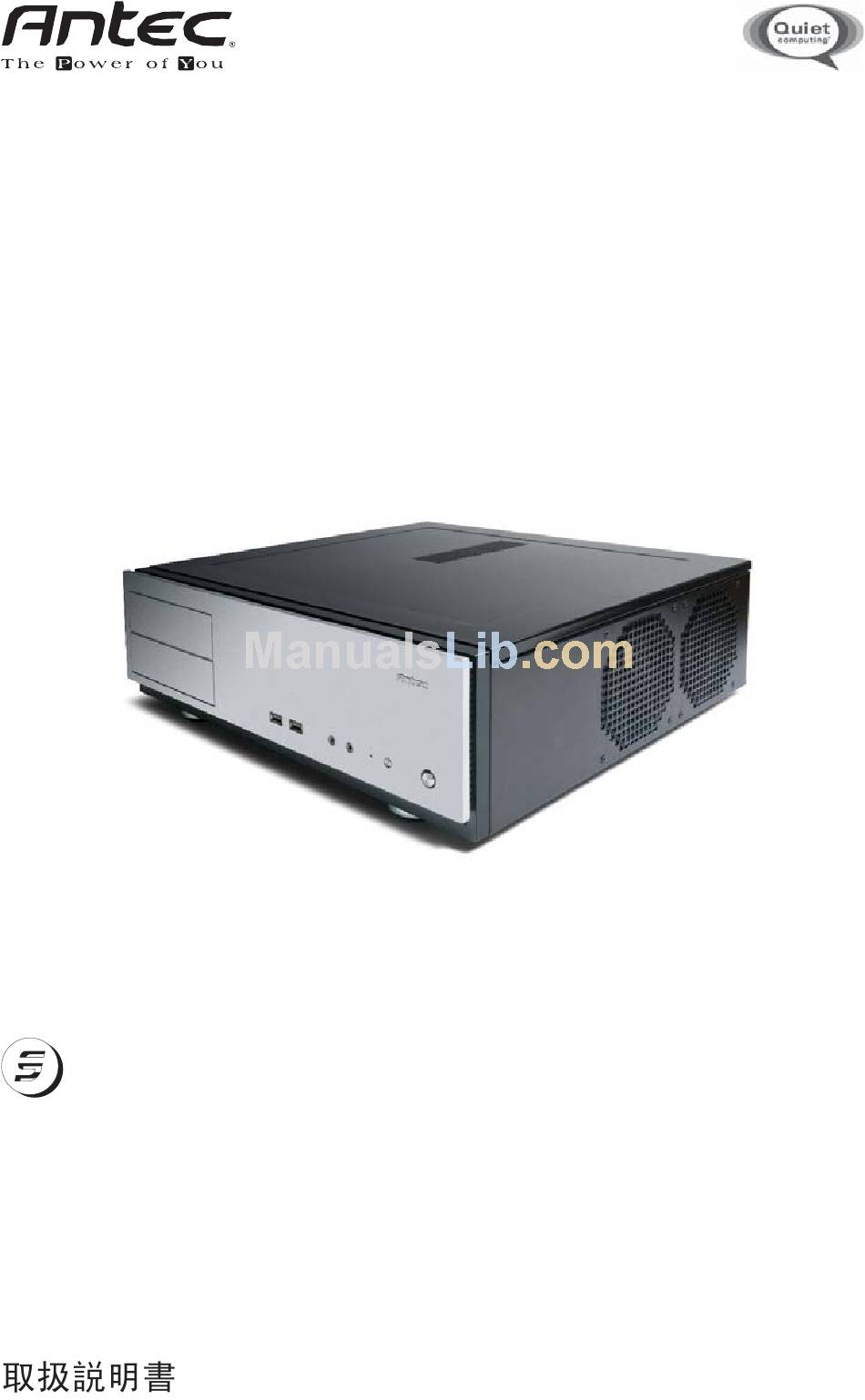

- Page 1 New Solution Series NSK2480 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Disclaimer This manual is intended only as a guide for Antec’s Computer Enclosures. For more comprehensive instructions on installing the motherboard and peripherals, please refer to the user’s manuals that come with those components.
-
Page 3: Installing The Motherboard
than in a traditional desktop case. There are small openings between the chambers to allow for the routing of cables as needed. Installing the Motherboard This manual is not designed to cover CPU, RAM, or expansion card installation. Please consult the motherboard manual for specific mounting instructions and troubleshooting. - Page 4 Note: Please check the motherboard manual for the USB header pin layout and make sure it matches the table below. If it does not match this Intel® standard, please visit Antec’s web store at http://www.antec.com/StoreFront.bok and search for part number 30095 to order a USB Internal Adapter Cable. This adapter will allow you to connect the front USB to your motherboard on a pin-by-pin basis.
- Page 5 Hard disk Drive Installation There is a hard disk drive bracket with soft silicone grommets inside the HDD chamber that can hold two hard drives. Remove the HDD bracket from the chamber by removing the four screws on top of it. Mount the left side of the hard drives (facing from the front of the hard drive) onto the drive bracket through the top silicone grommets with...
- Page 6 High if the fan will be connected to a fan control device or to the Fan-Only connector found on some Antec power supplies. A fan-control device regulates the fan speed by varying the voltage to it. The voltage may start as low as 4.5 V to 5V.
- Page 7 Run Cool, Run Reliably, Run with 80 PLUS® Energy Efficient® More than 80% efficient at 20%, 50% & 100% load www.80PLUS.org System Integrators / VAR’s for more information on 80 PLUS® financial and marketing advantages in North America go to www.antec.com/us/80Plus.html.
-
Page 8: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
