Summary of Contents for Antec HCG-750

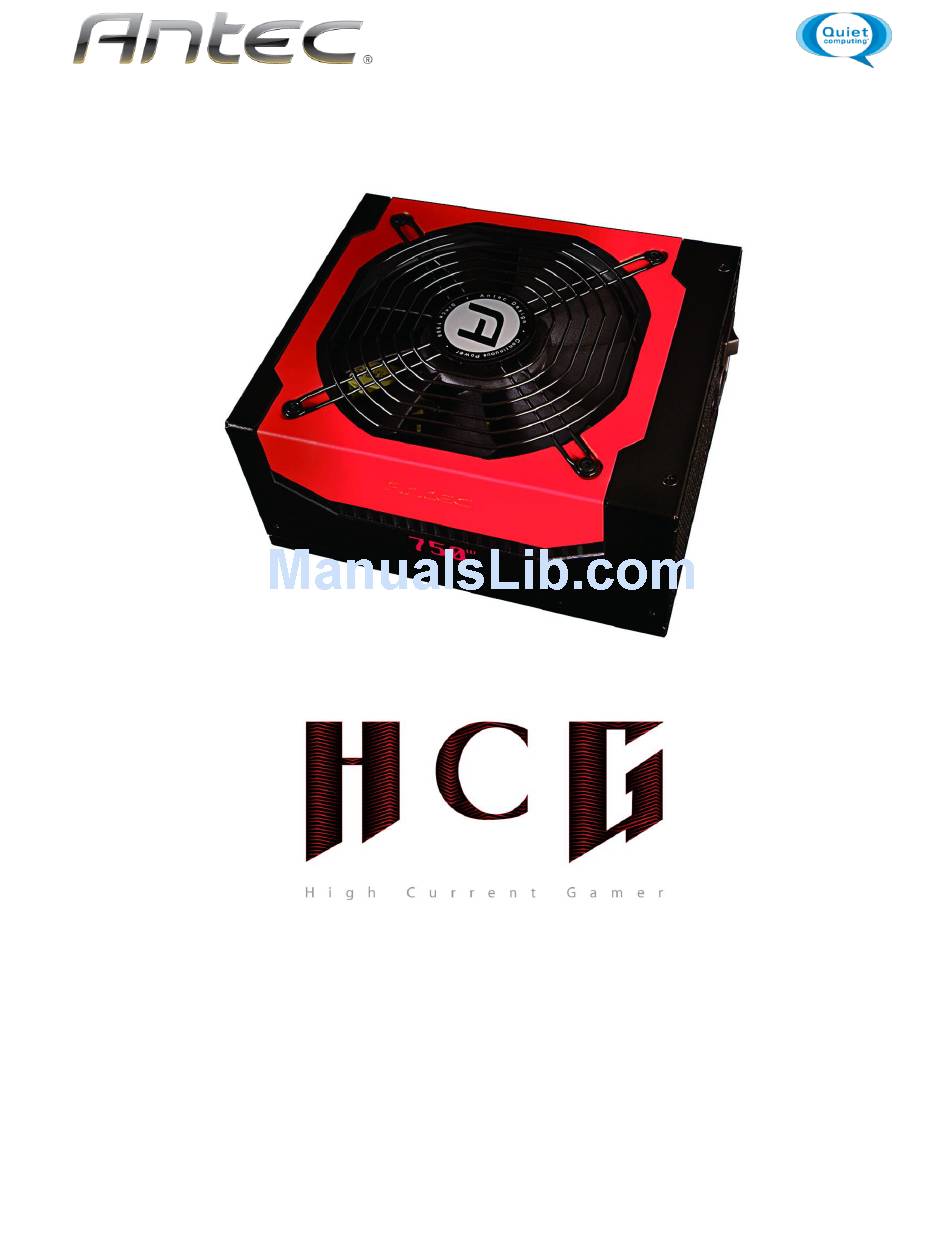

- Page 1 HCG-750 POWER SUPPLY USER’S MANUAL...

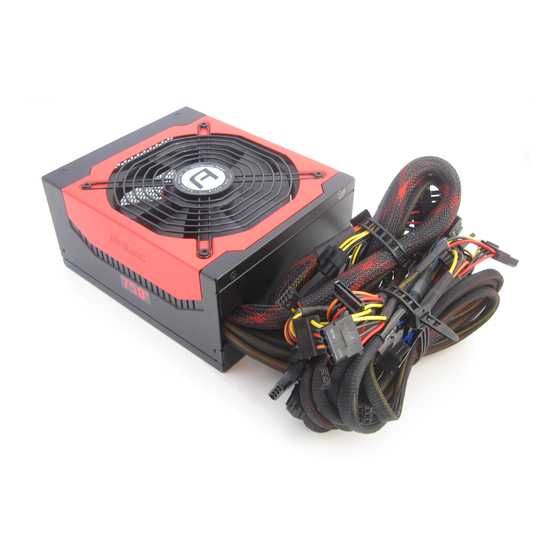

- Page 2 HCG-750 Making quad rail power and highly advanced power supply design available at a popular wattage, the HCG-750 features special High Current connectors and heavy-duty cabling, earning it NVIDIA® SLI®- Ready and AMD Crossfire certifications. At the same time the HCG-750 is also 80 PLUS® BRONZE certified for efficiency, and features active PFC with a swift, quiet 135 mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling.
- Page 3 80 PLUS® CERTIFICATION 80 PLUS® certification is the most widely recognized independent standard in power supply efficiency. An 80 PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The HCG-750 has been 80 PLUS® BRONZE certified to be at least 82% efficient at a wide range of operating loads;...
- Page 4 TABLE 2 Cable Quantity Connectors Description 24(20+4)-pin Motherboard 8(4+4)-pin ATX12V/EPS12V 8(6+2)-pin PCI-E Molex Molex SATA...
- Page 5 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 6 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector.
-
Page 7: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com © 2011-2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
