Summary of Contents for Antec NSK2400

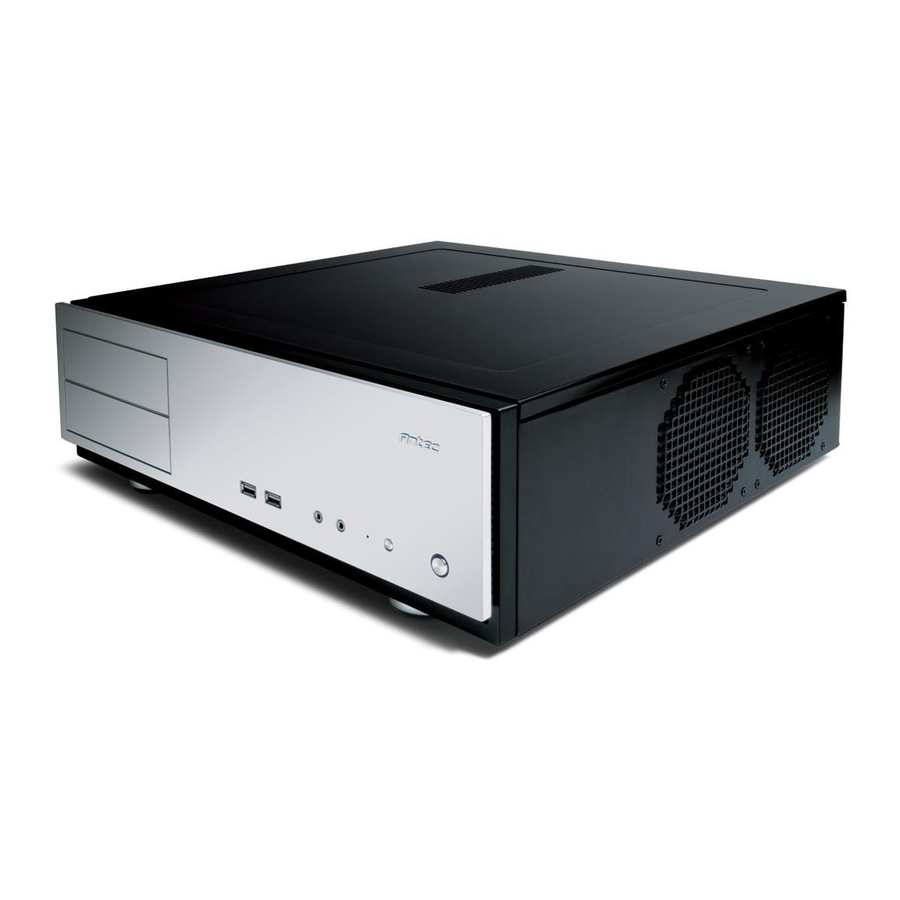

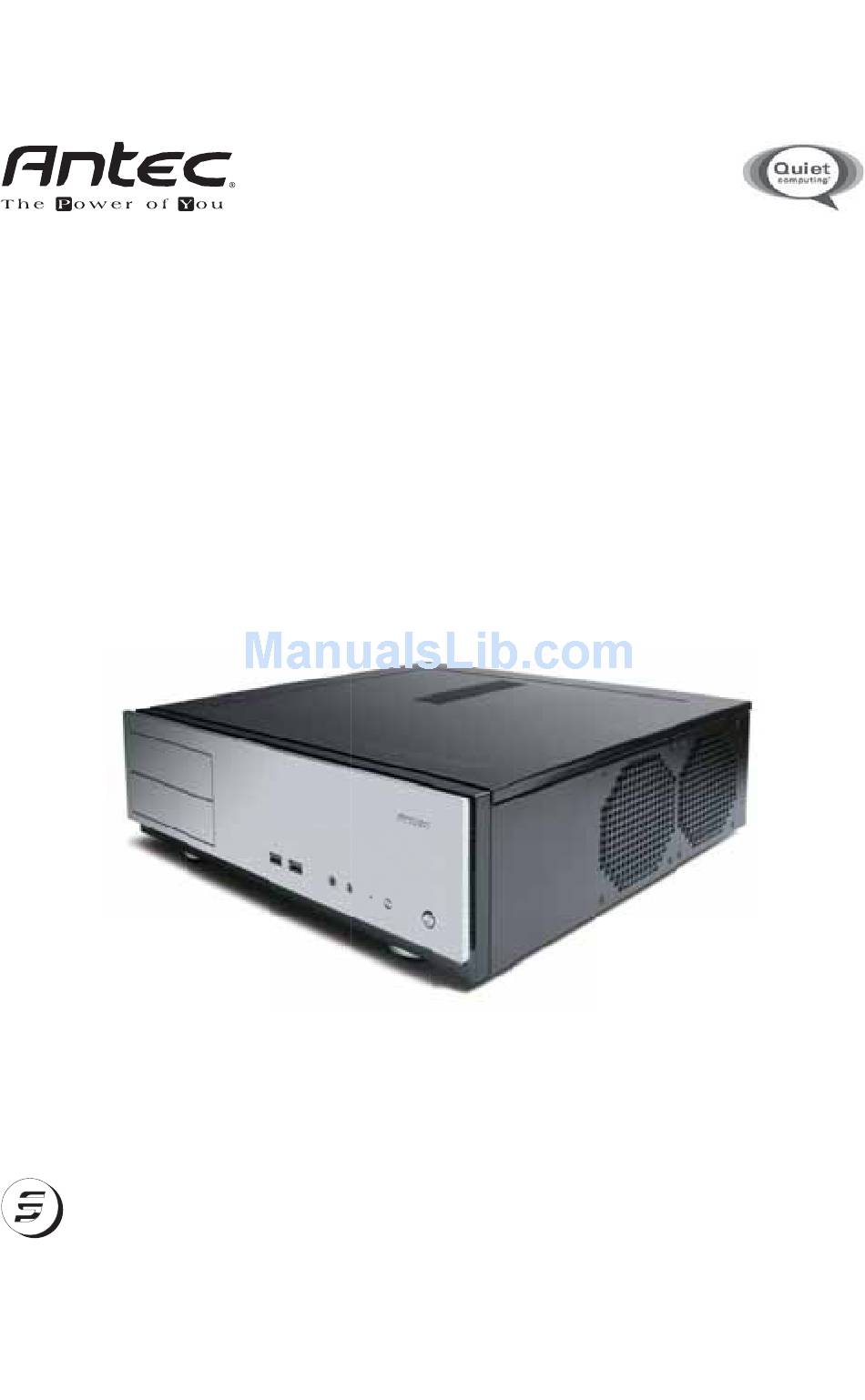

  • Page 1 New Solution Series NSK2400...
  • Page 2 At Antec, we continually refine and improve our products to ensure the highest quality. So it’s possible that your new case may differ slightly from the descrip- tions in this manual. This isn’t a problem; it’s simply an improvement. As of the date of publication, all features, descriptions, and illustrations in this manual are correct.
  • Page 3 The Triple Chamber structure Upon opening the top panel, you will find the case is divided into three separate chambers – the power supply chamber, the motherboard chamber and the HDD chamber. This triple chamber structure isolates heat and noise from each section resulting in much quieter and cooler operation than a traditional desktop case.
  • Page 4 If it does not match this Intel standard, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter. This adapter will allow you to connect the front USB to the motherboard on a pin-by-pin basis.
  • Page 5 Hard disk Drive Installation There is a hard disk drive bracket with soft silicone grommets inside the HDD chamber which can hold two hard drives. 1. Remove the HDD bracket from the chamber by removing the four screws on top of it. 2.
  • Page 6 5V. We recommend our users set the fan speed to High if the fan will be con- nected to a fan control device or to the Fan-Only connector found on some Antec power supplies. A fan-control device regulates the fan speed by varying the volt- age to it.
  • Page 7 Fresh cool air will flow through the vents through the hard drives, and then flow into the motherboard chamber and exhaust by the two 120mm TriCool™ fans. Note: Do not place the NSK2400 on a soft surface or over anything that will block the bottom air vents.
  • Page 8: Technical Support

    Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2006 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.1 02/16/2006...
