VideoJet X10
Network Video Server
en
Installation and Operating Manual

Advertisement

   Related Manuals for Bosch VJT-X10S

   Summary of Contents for Bosch VJT-X10S

  • Page 1

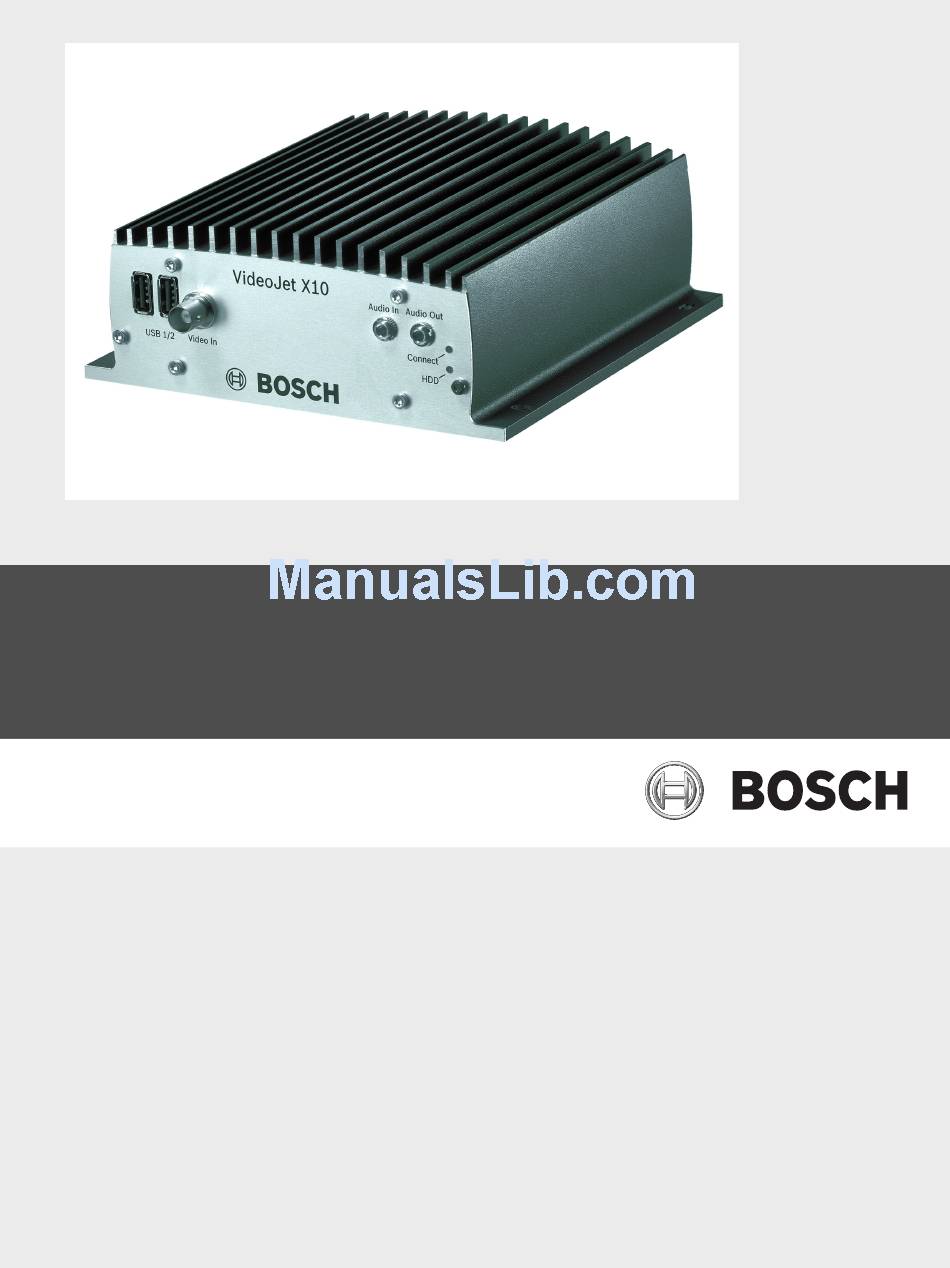

    VideoJet X10 Network Video Server Installation and Operating Manual...

  • Page 2

    VideoJet X10...

  • Page 3: Table Of Contents

    5.13 Advanced Mode: Display Stamping 5.14 Advanced Mode: Appearance 5.15 Advanced Mode: LIVEPAGE Functions 5.16 Advanced Mode: Logging 5.17 Advanced Mode: Video Input 5.18 Advanced Mode: Picture Settings Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 4

    Installing the Player Hardware Connections Between Video Servers Operation Using Software Decoders Maintenance and Upgrades Testing the Network Connection Unit Reset Repairs Transfer and Disposal Appendix Troubleshooting General Malfunctions DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 5

    Table of Contents | en Malfunctions with iSCSI Connections LEDs Processor Load Network Connection Serial Interface Terminal Block Communication with Terminal Program 8.10 Copyrights Specifications Unit Protocols/Standards Glossary Index Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 6

    | Table of Contents VideoJet X10 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 7: Preface

    Various functions can be triggered automatically by incorporating external alarm sensors. Other applications are not permitted. In the event of questions concerning the use of the unit which are not answered in this manual, please contact your sales partner or: Bosch Security Systems Robert-Koch-Straße 100 85521 Ottobrunn Germany www.boschsecurity.com...

  • Page 8: Eu Directives

    Please make a note of this information before installation, if necessary, so as to have it to hand in case of questions or when ordering spare parts. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 9: Safety Information

    – If safe operation of the unit cannot be ensured, remove it from service and secure it to prevent unauthorized operation. In such cases, have the unit checked by Bosch Security Systems. Safe operation is no longer possible in the following cases: –...

  • Page 10

    | Safety Information VideoJet X10 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 11: Product Description

    Adobe Acrobat Reader NOTICE! Check that the delivery is complete and in perfect condition. Arrange for the unit to be checked by Bosch Security Systems if you find any damage. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 12: System Requirements

    Additional Operational Requirements – Microsoft Internet Explorer (version 6.0 or higher) – Receiver software, for example VIDOS (version 3.11 or higher) or Bosch Video Management System (version 2.02 or higher) – MPEG-4 compatible hardware decoder from Bosch Security Systems (for example VIP XD) as a receiver and connected video monitor –...

  • Page 13: Overview Of Functions

    HTTPS. You can protect the control channels via the SSL encryption protocol. With an additional license, the user data itself can be encrypted. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 14

    Integrated Network Switch The integrated switch functionality of the VideoJet X10 permits the ETH 1, ETH 2 and SFP interfaces to be used alternatively, redundantly or for cascading other units. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 15

    – Authentication according to international standard 802.1x – Transmission and receipt of audio signals – Bidirectional audio (mono) for line connections – Audio encoding to international standard G.711 Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 16: Connections On The Front Panel

    HDD LED flashes orange when hard drive activity is detected (only on units with a hard drive installed) DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 17: Connections On The Rear Panel

    SFP slot for mini-GBIC module NOTICE! For more information about the LEDs, see Section 8.4 LEDs, page 107. For terminal block assignment, see Section 8.8 Terminal Block, page 109. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 18

    | Product Description VideoJet X10 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 19: Installation

    For mounting on concrete, use screws with the following minimum specification: M4 × 40 mm (1.57 in) and 6 mm (0.23 in) plastic dowels, for example fischer S4, type 50106. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 20: Connections

    Connect the VideoJet X10 to the network via the ETH 1 socket. Connect the VideoJet X10 to a redundant switch or hub on the same network via the ETH 2 socket. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 21

    For ETH 1 or ETH 2 connections, use a UTP category 5 network cable with RJ45 plugs. NOTICE! You can obtain a list of compatible iSCSI systems from your supplier or directly from Bosch Security Systems. This list is constantly being updated and extended. CF Slot You can insert a type I or II CompactFlash card into the Compact Flash slot to enable recordings to be saved locally.

  • Page 22

    If possible, use a bounce-free contact system as the actuator. Connect the lines to the appropriate terminals on the orange terminal block (IN1 to IN4) and check that the connection is secure. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 23

    Connect the LED lines to the appropriate terminals on the orange terminal block (RM1 and RM2) and check that the connection is secure. Check that the signals on the Connect LED on the VideoJet X10 and the remote indicator LED correspond. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 24

    Now check that the connections are secure. NOTICE! If you do not connect a battery to the unit, you should specify a time server to ensure correct system time. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 25: Power On/power Off

    Insert the CD into the computer's CD-ROM drive. If the CD does not start automatically, open the Configuration Manager directory using Windows Explorer and double-click Setup.exe. Follow the on-screen instructions. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 26

    Additional Parameters You can check and set additional parameters with the assistance of the Configuration Manager. You can find detailed information on this in the documentation for this program. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 27: Configuration Using A Web Browser

    Insert the product CD into the computer's CD-ROM drive. If the CD does not start automatically, open the root directory of the CD in Windows Explorer and double-click MPEGAx.exe. Follow the on-screen instructions. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 28

    If you do not connect, the unit may have reached its maximum number of connections. Depending on the unit and network configuration, each VideoJet X10 can have up to 25 Web browser connections or up to 50 connections via VIDOS or Bosch Video Management System. DOC | V4.0 | 2009.06...

  • Page 29: Configuration Menu

    The settings in the advanced mode should only be processed or modified by expert users or system support personnel. All settings are backed up in the VideoJet X10 memory so they are not lost even if the power fails. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 30

    CAUTION! Save each change with the associated Set button. Clicking the Set button saves the settings only in the current field. Changes in any other fields are ignored. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 31: Basic Mode: Unit Access

    It will be displayed in the video screen if configured to do so (see Section Camera name stamping, page 40). The camera name makes the task of administering cameras in larger video monitoring systems easier, for example using the VIDOS or Bosch Video Management System programs.

  • Page 32: Basic Mode: Date/time

    The unit polls the time signal automatically once every minute. Enter the IP address of a time server here. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 33: Basic Mode: Network

    If a DHCP server is employed in the network for the dynamic assignment of IP addresses, you can activate acceptance of IP addresses automatically assigned to the VideoJet X10. Certain applications (VIDOS, Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the unit. If you use these...

  • Page 34: Basic Mode: Encoder Profile

    For ISDN connections via one B-channel, resolution 352 × 288/240 pixels – Modem For analog modem connections with 20 kbps, resolution 352 × 288/240 pixels – For GSM connections at 9,600 baud, resolution 176 × 144/120 pixels DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 35: Basic Mode: Audio

    You can set the line input gain. Make sure that the display does not go beyond the green zone during modulation. Line Out You can set the line output gain. Make sure that the display does not go beyond the green zone during modulation. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 36: Basic Mode: Recording

    You can select all required text on this page with the mouse and copy it to the clipboard with the [Ctrl]+[C] key combination, for example if you want to send it via e-mail. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 37: Advanced Mode: Identification

    It will be displayed in the video screen if configured to do so (see Section Camera name stamping, page 40). The camera name makes the task of administering cameras in larger video monitoring systems easier, for example using the VIDOS or Bosch Video Management System programs.

  • Page 38: Advanced Mode: Password

    Enter the password for the appropriate authorization level here. Confirm password In each case, enter the new password a second time to eliminate typing mistakes. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 39: Advanced Mode: Date/time

    Select the region or the city that is closest to the system's location from the list field below the table. Click the Generate button to generate data and enter it into the table. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 40: Advanced Mode: Display Stamping

    Custom option. Or it can be set to Off for no overlay information. Select the desired option from the list. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 41: Advanced Mode: Appearance

    Internet/Intranet). When accessing via the Internet/Intranet, ensure that a connection is always available to display the image. The image file is not stored in the VideoJet X10. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 42

    You can specify the interval at which the individual images should be generated for the M- JPEG image on the LIVEPAGE. JPEG quality You can specify the image quality for displaying M-JPEG on the LIVEPAGE. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 43: Advanced Mode: Livepage Functions

    Bilinx control Next to the field for view control at the top left of the LIVEPAGE, an additional field is displayed for the special Bosch Security Systems Bilinx control. Lease time (s) The lease time in seconds determines the time beyond which a different user is authorized to control the camera after no further control signals are received from the current user.

  • Page 44: Advanced Mode: Logging

    Enter the path for saving the event log here. If necessary, click Browse to find a suitable directory. Save system log Check this option to save system messages in a text file on your local computer. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 45: Advanced Mode: Video Input

    VCR. NOTICE! In some cases, selecting the VCR option can lead to an improvement in the video image even with a camera connected. 5.18 Advanced Mode: Picture Settings Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 46

    Also observe the processor load indicator that appears at the top of the window near the manufacturer's logo (see Section 8.6 Network Connection, page 108). DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 47: Advanced Mode: Encoder Profile

    Low bandwidth (CIF) High quality for low bandwidth connections, resolution 352 × 288/240 pixels – Low delay (2/3 D1) High quality with low delay, resolution 464 × 576/480 pixels Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 48

    Profile name You can enter a new name for the profile here. The name is then displayed in the list of available profiles in the Active profile field. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 49

    The value entered here must be at least 10% higher than the value entered in the Target data rate field. If the value entered here is too low, it will automatically be adjusted. Bosch Security Systems Installation and Operating Manual...

  • Page 50: Advanced Mode: Audio

    If you connect via Web browser, you must activate the audio transmission on the LIVEPAGE Functions page (see Section 5.15 Advanced Mode: LIVEPAGE Functions, page 43). For other connections, the transmission depends on the audio settings of the respective system. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 51: Advanced Mode: Storage Management

    Advanced Mode: Storage Management You can record the images from the camera connected to the VideoJet X10 on various local storage media or on an appropriately configured iSCSI system. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 52

    It is also possible to let the VRM Video Recording Manager control all recording when accessing an iSCSI system. This is an external program for configuring recording tasks for video servers. For further information please contact your local customer service at Bosch Security Systems.

  • Page 53: Advanced Mode: Remote Video Device

    You can allow a remote video device to use the VideoJet X10 storage media. This means you can record video images from a camera that does not have its own storage media, for Bosch Security Systems Installation and Operating Manual...

  • Page 54: Advanced Mode: Recording Profiles

    You can define up to ten different recording profiles. You will then use these recording profiles in the recording scheduler, where they are linked with the individual days and times (see Section 5.25 Advanced Mode: Recording Scheduler, page 57). DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 55

    Section 5.35 Advanced Mode: Alarm Inputs, page 74). The numbering of the checkboxes for the alarm inputs corresponds to the labeling of the alarm inputs on the VideoJet X10. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 56: Advanced Mode: Retention Time

    Retention time Camera 1 Enter the required retention time in hours or days for each recording. Recording 1 corresponds to Stream 1, Recording 2 corresponds to Stream 2. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 57: Advanced Mode: Recording Scheduler

    Click the Select All button to link all time intervals to the selected profile. Click the Clear All button to deselect all of the intervals. When you are finished, click the Set button to save the settings in the unit. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 58

    Recording status The graphic indicates the recording activity of the VideoJet X10. You will see an animated graphic while recording is taking place. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 59: Advanced Mode: Recording Status

    VideoJet X10 will connect in sequence in the event of an alarm, until a connection is made. Connect on alarm Select On so that the VideoJet X10 automatically connects to a predefined IP address in the event of an alarm. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 60

    VIDOS or Bosch Video Management System, you can store a general password here. The VideoJet X10 can use this general password to connect to all remote stations protected with the same password.

  • Page 61

    (see Section 5.19 Advanced Mode: Encoder Profile, page 47). Audio Select the On option if you wish to additionally transmit a standalone G.711 encoded audio stream with alarm connections. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 62: Advanced Mode: Vca

    Select a VCA configuration and make the required settings. If necessary, click the Default button to return all settings to their default values. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 63: Advanced Mode: Vca Profiles

    (see Section 8.6 Network Connection, page 108). Select a VCA profile and enter the required settings. If necessary, click the Default button to return all settings to their default values. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 64

    NOTICE! Additional analysis algorithms with comprehensive functions such as IVMD and IVA are available from Bosch Security Systems. If you select one of these algorithms, you can set the corresponding parameters here directly. You can find information on this in the relevant documents on the product CD supplied.

  • Page 65

    This allows you to avoid false alarms triggered by short-term changes, for example cleaning activities in the direct field of vision of the camera. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 66

    Click Select Area to configure the sensor fields. A new window will open. If necessary, click Clear All first to clear the current selection (fields marked yellow). DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 67: Advanced Mode: Vca Scheduled

    In addition to the normal weekdays, you can define holidays that are not in the standard weekly schedule on which recordings are to apply. This allows you to apply a schedule for Sundays to other days with dates that fall on varying weekdays. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 68

    Click the date you wish to delete. Click OK. The item will be deleted from the table and the window will close. The process must be repeated for deleting additional days. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 69: Advanced Mode: Vca Event Triggered

    For more information, please see the Alarm Task Script Language document and the RCP+ documentation. You can find these documents on the product CD supplied (see Section 3.1 Scope of Delivery, page 11). Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 70: Advanced Mode: Audio Alarm

    First set up normal audio transmission before you configure the audio alarm here (see Section 5.20 Advanced Mode: Audio, page 50). Audio alarm Select On if you want the device to generate audio alarms. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 71: Advanced Mode: Alarm E-mail

    Configuration Using a Web Browser | en Name The name makes it easier to identify the alarm in extensive video monitoring systems, for example with the VIDOS and Bosch Video Management System programs. Enter a unique and clear name here. CAUTION! Do not use any special characters, for example &, in the name.

  • Page 72

    Test e-mail You can test the e-mail function by clicking the Send Now button. An alarm e-mail is immediately created and sent. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 73: Advanced Mode: Alarm Task Editor

    Script successfully parsed is displayed over the text field. If it was not successful, an error message will be displayed with further information. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 74: Advanced Mode: Alarm Inputs

    Idle state Select Open if you want the relay to operate as an NO contact, or select Closed if the relay is to operate as an NC contact. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 75

    The Livepage can also be configured to display the name under the relay icon. Trigger relay Click the button to trigger the relay manually (for testing or to operate a door opener, for example). Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 76: Advanced Mode: Com1

    Stop bits Select the number of stop bits per character. Parity check Select the type of parity check. Interface mode Select the desired protocol for the serial interface. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 77: Advanced Mode: Network

    Some changes only take effect after the unit is rebooted. In this case, the Set button changes to Set and Reboot. Make the desired changes. Click the Set and Reboot button. The VideoJet X10 is rebooted and the changed settings are activated. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 78

    If a DHCP server is employed in the network for the dynamic assignment of IP addresses, you can activate acceptance of IP addresses automatically assigned to the VideoJet X10. Certain applications (VIDOS, Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the unit. If you use these...

  • Page 79

    Information about the service, registration process and available host names can be found at DynDNS.org. Host name Enter the host name registered on DynDNS.org for the VideoJet X10 here. User name Enter the user name you registered at DynDNS.org here. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 80: Advanced Mode: Advanced

    The unit supports SNMP MIB II in the unified code. If you wish to send SNMP traps, enter the IP addresses of one or two required target devices here. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 81: Advanced Mode: Multicasting

    (Multi-unicast) or it sends a single data stream to the network, where the data stream is simultaneously distributed to multiple receivers in a defined group (Multicast). Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 82

    You can enter a value to specify how long the multicast data packets are active on the network. This value must be greater than one if multicast is to be run via a router. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 83: Advanced Mode: Jpeg Posting

    Enter the IP address of the FTP server on which you wish to save the JPEG images. FTP server login Enter your login name for the FTP server. FTP server password Enter the password that gives you access to the FTP server. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 84: Advanced Mode: Encryption

    First store the firmware file on your hard drive. Enter the full path of the firmware file in the field or click Browse to locate and select the file. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 85

    You can download an internal maintenance log from the unit to send it to Customer Service for support purposes. Click Download and select a storage location for the file. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 86: Advanced Mode: Licenses

    You can select all required text on this page with the mouse and copy it to the clipboard with the [Ctrl]+[C] key combination, for example if you want to send it via e-mail. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 87: Function Test

    Does the VideoJet X10 transmit all the required data? – Does the VideoJet X10 respond to alarm events as required? – Do the recordings occur as intended? – Is it possible to control peripherals if necessary? Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 88

    | Configuration Using a Web Browser VideoJet X10 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 89: Operation

    Insert the product CD into the computer's CD-ROM drive. If the CD does not start automatically, open the root directory of the CD in Windows Explorer and double-click MPEGAx.exe. Follow the on-screen instructions. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 90

    Enter the IP address of the VideoJet X10 as the URL. The connection is established and after a short time you will see the LIVEPAGE with the video image. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 91: The Livepage

    If you do not connect, the unit may have reached its maximum number of connections. Depending on the unit and network configuration, each VideoJet X10 can have up to 25 Web browser connections or up to 50 connections via VIDOS or Bosch Video Management System. Protected VideoJet X10...

  • Page 92

    You can switch connected units using the relays in the VideoJet X10 (for example lights or door openers). To activate this, click the icon for the corresponding relay next to the video image. The icon will be red when the relay is activated. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 93

    When the connection maintaining voice contact with the VideoJet X10 is broken, the next user to make a connection to the VideoJet X10 can send audio data to the VideoJet X10. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 94: Saving Snapshots

    Click the icon again to stop recording. NOTICE! You can play back saved video sequences using the Player from Bosch Security Systems, which can be installed from the product CD supplied (see Section 3.1 Scope of Delivery, page 11).

  • Page 95: The Recordings Page

    You will see a time bar below the video image for quick orientation. A green arrow above the bar indicates the position of the image currently being played back within the sequence. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 96

    To do this, place the mouse cursor in the timeline below the timescale and turn the scroll wheel. Playback is automatically stopped (paused) during scrolling. Trick mode requires DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 97: Installing The Player

    Configuration Manager program. Installing the Player You can play back saved video sequences using the Player from Bosch Security Systems, which can be installed from the product CD supplied (see Section 3.1 Scope of Delivery, page 11).

  • Page 98: Hardware Connections Between Video Servers

    This option can also be used to connect a sender and a compatible receiver using a switch connected to the alarm input. You do not need a computer to make the connection in this case. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 99

    Start the terminal program and enter the command 4 in the main menu to switch to the Rcp+ menu. In the Rcp+ menu, enter the command 5 to deactivate the automatic connection. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 100: Operation Using Software Decoders

    Bosch CCTV products as one component of an extensive video security management system. It allows you to integrate your existing components into a simple-to-control system or into the entire Bosch range, benefiting from a complete security solution based on the latest technology and years of experience.

  • Page 101: Maintenance And Upgrades

    Connect LED flashes red (see Section 3.4 Connections on the Front Panel, page 16). All settings will revert to their defaults. Change the IP address of the VideoJet X10 if necessary. Configure the unit to meet your requirements. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 102: Repairs

    The VideoJet X10 should only be passed on together with this installation and operating manual. Your Bosch product is designed and manufactured with high-quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 103: Appendix

    If you are unable to resolve a malfunction, please contact your supplier or systems integrator, or go directly to Bosch Security Systems Customer Service. You can view a range of information about your unit version on the System Overview page (see Section 5.45 Advanced Mode: System Overview, page 86).

  • Page 104: General Malfunctions

    Audio configuration and LIVEPAGE Functions pages. The audio voice connection is Wait until the connection is free already in use by another and then call the sender again. receiver. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 105

    CD. ActiveX components. Web browser contains Active proxy server in network. Create a rule in the local empty fields. computer's proxy settings to exclude local IP addresses. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 106: Malfunctions With Iscsi Connections

    LUN mapping is not Some iSCSI systems do not Delete the initiator extension on possible. support the use of an initiator the Identification configuration extension. page. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 107: Leds

    VideoJet X10 is faulty, for example following failed firmware upload. HDD LED Does not light up: No hard drive fitted. Lights up orange: Hard drive fitted. Flashes orange: Hard drive activity. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 108: Processor Load

    The serial interface supports the RS-232, RS-422 and RS-485 transmission standards. The mode used depends on the current configuration (see Section 5.37 Advanced Mode: COM1, page 76). Connection is via the terminal block. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 109: Terminal Block

    For the RM1 and RM2 contact specifications, see Section Remote Indication of the Connection Status, page 23. For the backup power supply specifications, see Section Backup Power Supply, page 24. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 110: Communication With Terminal Program

    When you have entered a value, such as the IP address, check the characters you have entered before pressing Enter to transfer the values to the VideoJet X10. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 111

    Additional Parameters You can use the terminal program to check other basic parameters and modify them where necessary. Use the on-screen commands in the various submenus to do this. Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 112: Copyrights

    Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 113: Specifications

    Dimensions (H × W × D) 61 × 160 × 178 mm / 2.4 × 6.3 × 7.0 in, including BNC connections Weight Approx. 1.5 kg / 3.3 lb, including HDD Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 114: Protocols/standards

    IGMP V3, ICMP, RTSP, FTP, ARP, SNTP, SNMP (V1, MIB-II), 802.1x Audio coding protocol G.711, 300 Hz to 3.4 kHz Audio sampling rate 8 kHz Audio data rate 80 kbps DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 115: Glossary

    Unit of measurement for the speed of data transmission Bits per second, the actual data rate BVIP Bosch Video over IP unit CompactFlash; interface standard, for digital storage media amongst other things. Used in computers in the form of CF cards, digital cameras and Personal Digital Assistants (PDA).

  • Page 116

    Management Information Base; a collection of information for remote servicing using the SNMP protocol MPEG-2 Improved video/audio compression standard, compression on highest level allows images in studio quality; now established as broadcast standard DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 117

    Storage Networking Industry Association; association of companies for defining the iSCSI standard SNMP Simple Network Management Protocol; a protocol for network management, for managing and monitoring network components Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 118

    User Datagram Protocol Uniform Resource Locator Unshielded Twisted Pair See Wide Area Network Wide Area Network A long distance link used to extend or connect remotely located local area networks DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 119: Index

    Licenses 86 Default 49 Live video images 27 Default profile 49 Livepage 43 Deleting recordings 53 Low Voltage Directive 8 Device ID 37 Low-pass filter 46 Device name 31 Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 120

    Time 24 Recording media 52 Time server 32 Recording profiles 54 Time server IP address 33 Recording program 94 Time server protocol 32 Recording scheduler 57 Time signal 32 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 121

    Unit time 32 URL 28 USB interface 16 User name 31 Value 46 VCR 45 Video content analysis 62 Video input 45 Video sensor 62 VRM 52 Watermarking 41 Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06...

  • Page 122

    122 en | Index VideoJet X10 DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems...

  • Page 124

    Bosch Sicherheitssysteme GmbH Robert-Koch-Straße 100 85521 Ottobrunn Germany Telefon 089 6290-0 089 6290-1020 www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2009...

Comments to this Manuals

Symbols: 0
Latest comments:
