Instructions for CM-16 Installation
M1
PBX
Non-switched
AC Outlet
2616 Jack
3
Line Cord
Plug
4
Xfmr
Power Adapter
2
Jack
Assembly
Antenna Unit
1
6 Conductor
Line Cord
Pins 1 & 6 carry power from adapter
Pins 3 & 4 carry M1 circuit (pin 3+)

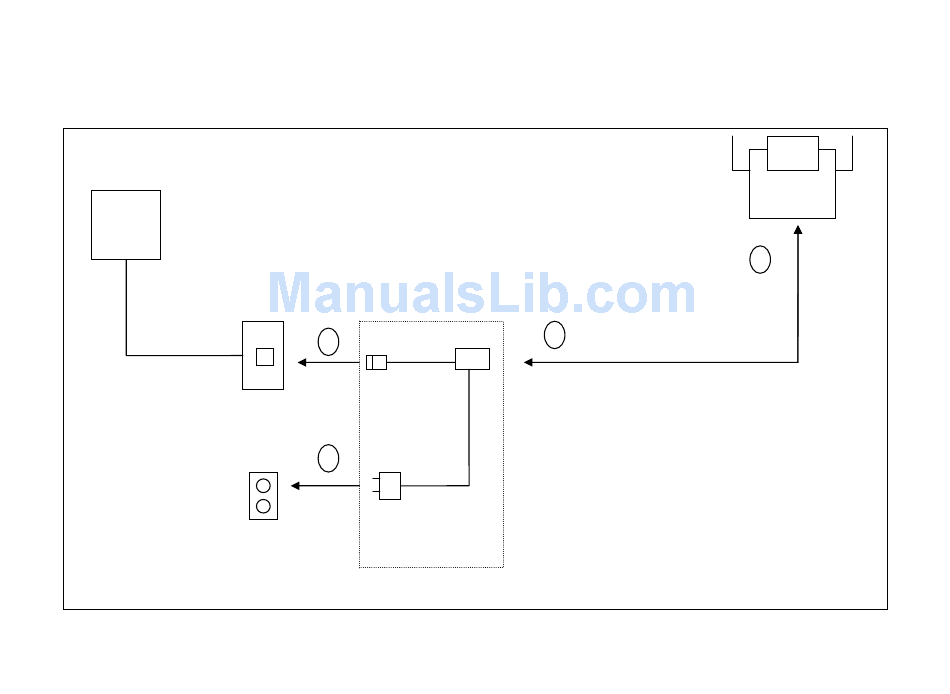

Figure 1
CM-16 Antenna
Unit Connections
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aastra CM-16
Summary of Contents for Aastra CM-16
- Page 1 Instructions for CM-16 Installation Antenna Unit 2616 Jack 6 Conductor Jack Line Cord Line Cord Plug Pins 1 & 6 carry power from adapter Pins 3 & 4 carry M1 circuit (pin 3+) Xfmr Non-switched AC Outlet Figure 1 Power Adapter Assembly CM-16 Antenna Unit Connections...
- Page 2 Figure 2 Handset Preparation Figure 3 Charger Preparation Handset (face down) Keep the battery near the handset and don’t connect it until step B5. Remove Battery Door Non-switched AC Outlet Battery Batt. Door...
- Page 3 CM-16 Installation The installation process is divided into three sections A, B, and C. If you follow the steps in order, the Handset and Antenna Unit will properly synchronize with the M1 2616 port. At this time per Figure 2, prepare the handset by removing the battery cover and placing the battery near the handset so you can connect it quickly in step B5.
- Page 4 verify all modular cord connections to this point are correct and making good contact. When both LEDs are indicating properly, continue at step 4. 4) Plug the power adapter transformer (Xfmr) into a non-switched 120V AC outlet. The right LED will blink for about 40 seconds as the Antenna Unit scans for its Handset.
