Summary of Contents for Aastra CM-16

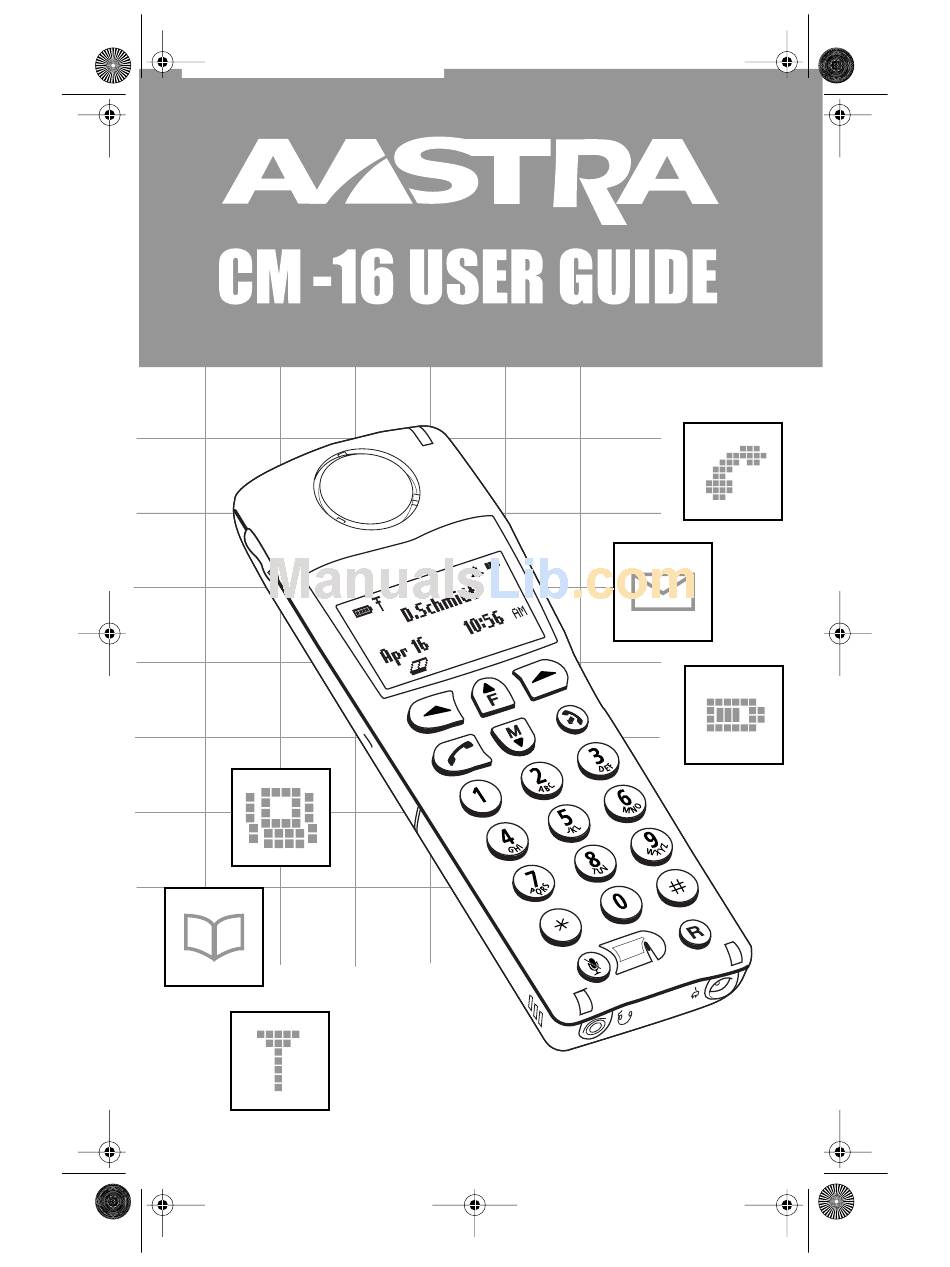

- Page 1 CM16.book Page i Friday, June 18, 2004 3:22 PM...
-
Page 2: Table Of Contents
Charging Cradle ...5 Battery Charging ...6 Belt Clip...6 Using a Headset with your Telephone...6 Battery Status Icons ...6 CM-16 HANDSET KEY FUNCTIONS ...7, 8 Screen Display ...9 Screen Icons ...9 Screen Prompts ...10 Making and Answering Calls ...11 Redial ... 11 Hold function ...12... -
Page 3: Safety Information
Follow the battery installation instructions included with this guide Note: That it takes two to three charging cycles for the batteries to reach their fully charged state. Charge the batteries using only the charger stand supplied with • this product Model CM-16 User Guide 2... -
Page 4: Regulatory Information
The batteries included with the CM-16 are designed to provide up to four hours talk time and eighty hours standby time. Actual battery performance can be affected by a wide variety of environmental and user factors. -
Page 5: Installation
CM16.book Page 4 Friday, June 18, 2004 3:22 PM INSTALLATION The CM-16 consists of a base station, wireless handset and a charging base stand. The following diagram provides an overview of the installation of the product using the power supply provided. -
Page 6: Charging Cradle
Plug the other end of the power adapter into an AC outlet. It is recommended that the adapter should not be plugged in to an electrical power bar and should be the only item plugged in to the AC outlet. 5 Model CM-16 User Guide Figure B Figure C... -
Page 7: Battery Charging
Using a Headset with your Telephone The CM-16 accepts headsets through the jack on the bottom of the handset. Contact your telephone equipment retailer or distributor to purchase a compatible headset. Customers should read and observe all safety recommendations contained in headset operating guides when using any headset. -
Page 8: Cm-16 Handset Key Functions
CM16.book Page 7 Friday, June 18, 2004 3:22 PM CM-16 HANDSET KEY FUNCTIONS 7 Model CM-16 User Guide... -
Page 9: Cm-16 Handset Key Functions
Access key to the different Options • Scrolls down when in the various lists. • Used as Backspace during editing r r r r Redial • Displays the last 10 numbers dialed Charging jack Charging contacts Microphone Model CM-16 User Guide 8... -
Page 10: Screen Display
CM16.book Page 9 Friday, June 18, 2004 3:22 PM SCREEN DISPLAY The screen display on the CM-16 provides five lines, 15 characters per line of display area. Pressing any key will light up the display if the Backlight option is On. -
Page 11: Screen Prompts
Indicates when the Mute button has been Activated Appears briefly when pressing a key if out of range of the base station Will appear if the line cord is not properly connected to the base station. Model CM-16 User Guide 10... -
Page 12: Making And Answering Calls
Press key and the last number dialed will automatically be redialed. • In addition to redialing the last 10 numbers, the CM-16 allows redialed numbers to be deleted from the redial list or saved to the Directory, while on hook. -
Page 13: Hold Function
Press the X X X X key to mute the handset. Press the X X X X key again to disengage mute. ALERTER TONES The CM-16 uses tones to provide information as follows: Low Battery one tone every three minutes... -
Page 14: To Adjust The Receiver Volume
If the Meridian features are labeled instead of pre-programmed and identified on handset, the features list on the CM-16 menu display will be identified by item numbers from 00 to 14 with no text (example Also, the first... -
Page 15: Options
Language The CM-16 offers a choice of English, French and Spanish display languages. The default language setting is English. The language display in use is always identified with a check mark. -
Page 16: Key Label
Key label The Key label option gives access to the display text associated with the 14 Meridian features that can be programmed with to CM-16 handset. Text to identify a specific feature can be added, modified or deleted or all feature key text can be deleted at once. -
Page 17: Ring Tone
CM16.book Page 16 Friday, June 18, 2004 3:22 PM Ring Tone The CM-16 offers the choice of four different ring tones. To change the ring tone, follow the display menu prompts using the two softkeys as required to change, cancel or select a ring tone. Each of the four ring tones can be heard prior to selection. -
Page 18: Vibrate
CM16.book Page 17 Friday, June 18, 2004 3:22 PM Vibrate The Vibrate option allows the CM-16 handset to signal an incoming call by vibrating as well as ringing. By default, this option is always Off. To enable this feature, press the indicate menu display. -
Page 19: Backlight
Note: You can active or deactivate the Silent alert by pressing only the L L L L key and then the # key. Note: The Ringer Icon does not appear on the display when the Silent alert is On. Model CM-16 User Guide 18... -
Page 20: Directory
Special characters are entered by pressing the 1 key. Characters will appear in this order: , - ‘ & . ()1 19 Model CM-16 User Guide . If no name softkey again, softkey and then enter the... -
Page 21: Finding Entries In The Directory
Directory“ section of this guide. Press the softkey to save the revised Directory entry. Will display Pressing the key will return you to the main idle display screen. If required, change the Model CM-16 User Guide 20... -
Page 22: Deleting An Entry In The Directory
Displays Press the softkey. Displays Pressing the key will return you to the main idle display screen. Deleting all entries in the Directory Press Directory softkey Press softkey. Display shows Press the softkey. Display shows 21 Model CM-16 User Guide... -
Page 23: Limited Warranty
(1) year period from the date of original purchase. If there is a defect or malfunction, Aastra Telecom shall, at its option, and as the exclusive remedy, either repair or replace the telephone set at no charge, if returned within the warranty period. -
Page 24: Warranty Repair Services
Aastra Telecom offers ongoing repair and support for this product. This service provides repair or replacement of your Aastra Telecom product, at Aastra Telecom's option, for a fixed charge. You are responsible for all shipping charges. For further information and shipping instructions;... - Page 25 CM16.book Page 23 Friday, June 18, 2004 3:22 PM...
- Page 26 When setting up the phone 2 Base Station 4,5 Battery Charging 6 BATTERY STATUS ICONS 6 Call Timer 16 Charging Cradle 5 CM-16 HANDSET KEY FUNCTIONS 8 Custom Name 16 DIRECTORY 19 Adding a name and number to the Directory 19...
- Page 27 CM16.book Page 21 Friday, June 18, 2004 3:22 PM REDIAL When off hook 11 When on hook 11 To add a redialed number to the directory 11 To delete an entry in the Redial list 12 Ring Tone 16 SAFETY INFORMATION 2 SCREEN DISPLAY 9 SCREEN ICONS 9 SCREEN PROMPTS 10...
- Page 28 CM16.book Page 22 Friday, June 18, 2004 3:22 PM If you’ve read this owner’s manual and still have problems, please visit our website at www.aastra.com or call 1-800-574-1611 for technical assistance. © Aastra Telecom Inc. 2004 41-0071-00 Rev 01...
