CM-16 Technician Installation Guide
This step-by-step guide is designed to provide complete installation details for the Aastra CM-16 cordless telephone.
CM-16 Installation
The CM-16 consists of a base station, wireless handset and a charging base stand. When properly installed, it can
simulate and be configured as a digital set such as the M2616.
The System Administrator must be aware of the Meridian settings required to make this telephone fully operational.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aastra CM16

Summary of Contents for Aastra CM16

  • Page 1 CM-16 Technician Installation Guide This step-by-step guide is designed to provide complete installation details for the Aastra CM-16 cordless telephone. CM-16 Installation The CM-16 consists of a base station, wireless handset and a charging base stand. When properly installed, it can simulate and be configured as a digital set such as the M2616.
  • Page 2 www.aastra.com...

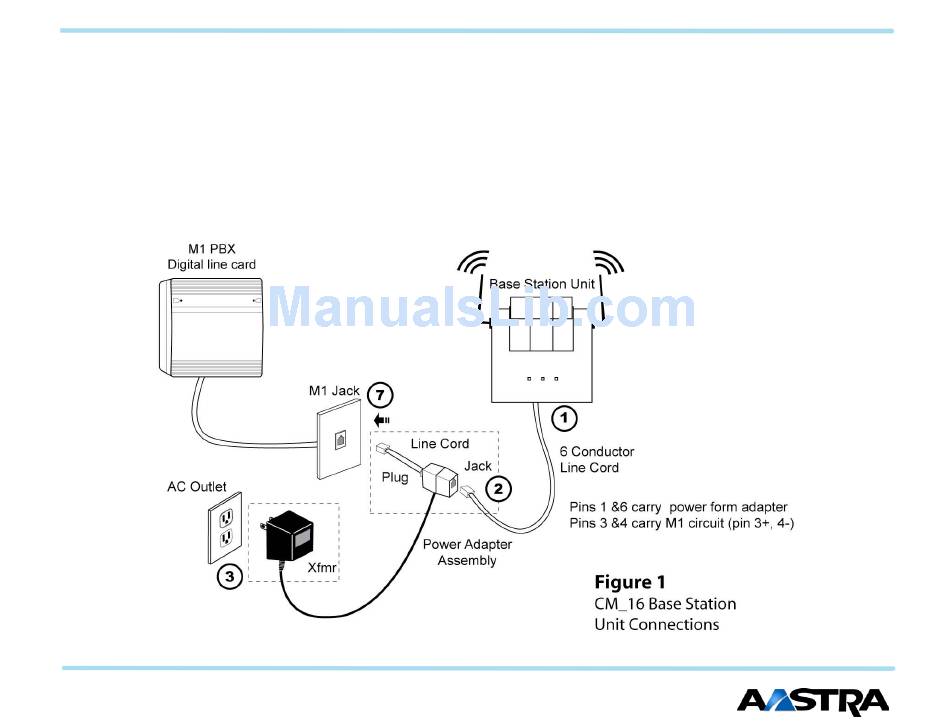

  • Page 3 • Once you have configured the digital line, you can test the digital line/jack using a M2616 or M2008 or other. • The polarity of the M1 digital line circuit must be correct as shown in Fig. 1. • The CM16 can be added as an extension using the second port of an existing line card. Installation Procedure There are seven steps required in the installation process.
